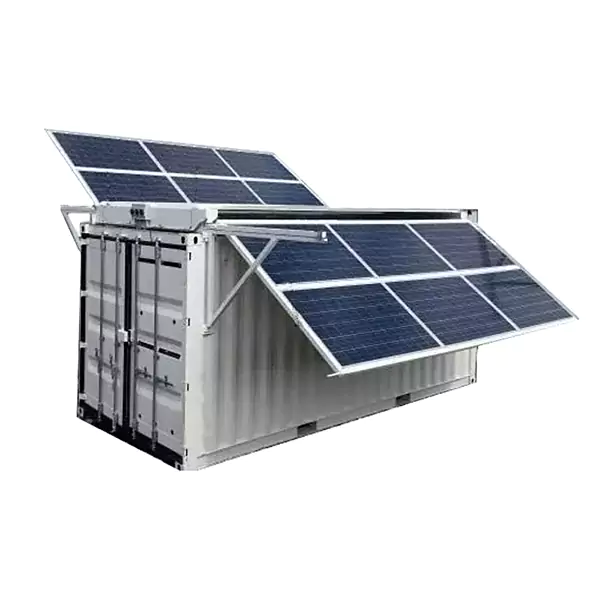

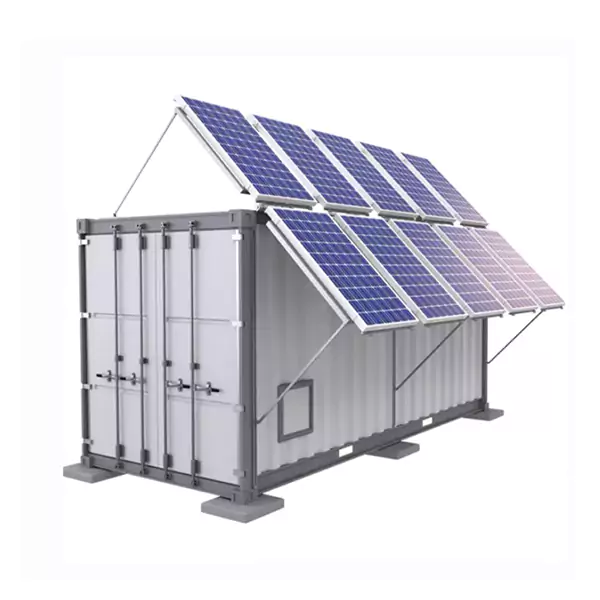

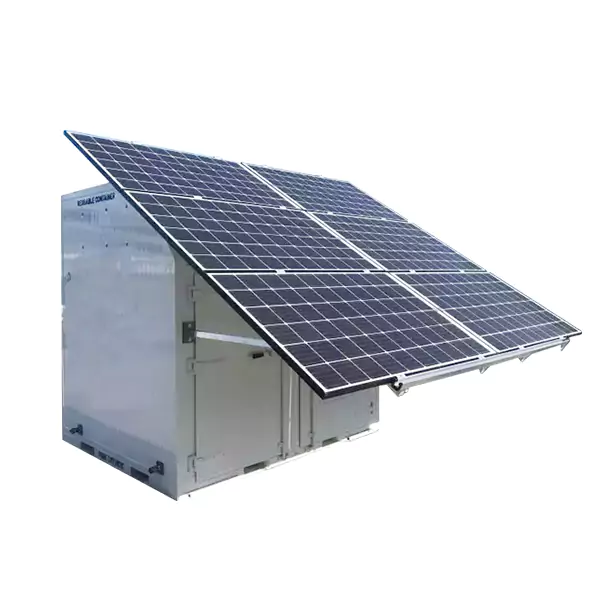

Integrates solar, wind power, diesel generators, and energy storage systems to achieve an energy-saving solution, with a maximum load capacity of up to 600A
The cabinet is made of lightweight aluminum alloy, allowing for manual transportation. It supports factory prefabrication and can be lifted and installed as a whole unit
The outer layer of the cabinet is made of corrosion-resistant FRP material, making it suitable for coastal environments
Combines power generation, energy storage, and communication infrastructure in a single system, enabling rapid and efficient deployment
| Container Product Specifications | Overall dimensions (width x length x height) | 2400mm(W)×6000mm(L)×2800mm(H) IP55 protection; |
| Installation Mode | Landing | |
| Cooling Solution | Intelligent temperature control (Fresh air system / precision air conditioning, energy-saving automatic switching refrigeration） | |
| AC Input | AC input voltage | Single-phase/three-phase 380VAC input (dual input interlock) |
| Rectifier module | 50A, fully equipped 600A Shared slot with photovoltaic modules | |
| Photovoltaic input | Photovoltaic module capacity | 550Wp*12 pieces;=6.6kw |
| Photovoltaic modules | 50A(3000W)*4 | |
| Wind power | Wind power | 600W~2000W |
| Fan control module | 2KW | |
| Energy storage and backup | Lithium iron phosphate battery | 100AH, 51.2V; fully equipped with 4 groups,Energy storage 50KWH |
| Output Characteristics | DC output voltage | 432VDC~58VDC (default 535VDC) |
| Output Configuration | Battery: 2*600A DC: 63A*6, 32A*4, 16A*6; AC: input 32A*4, lightning protection level C; socket: 2-way; | |
| Monitoring unit system | Signal input | analog input (battery temperature) 4 digital dry contact inputs |
| Alarm output | 4-way dry contact | |
| Communication interface | RS485 | |
| Storage capacity | Up to 1000 historical alarm records | |
| Sensor | Temperature and humidity, smoke, access control, water immersion | |
| Environment | Operating temperature | -20~+75℃(can be started at -40℃) |
| Storage temperature | -40℃~+75℃ | |
| Operating humidity | 5%~95%(no condensation) | |
| Altitude | ≤4000m (1800m~4000m, the temperature decreases by 1ºC for every 200m increase in altitude.) |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| 2 | Air conditioner | 3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| 2 | Hybrid power supply box 600A (including AC power distribution box) | 6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2, 16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; | 1 | Set |
| 3 | Rectifier module | Rectifier module 50A, high efficiency | 4 | Set |
| 4 | Air conditioner | 3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| 2 | Photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 8 | Set |
| 3 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 2 | Set |
| 4 | Air conditioner | 3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| 2 | Dynamic environment monitoring unit | 4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser. It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. Environmental detection: smoke detector, access control, temperature and humidity, water immersion, etc. | 1 | Set |
| 3 | Sensor | Environmental detection: smoke sensor, access control, temperature and humidity, water immersion, need to be applied to monitoring; | 1 | Set |
| 4 | Fire extinguisher | Suspended 6kg temperature-controlled gas fire extinguishing device machine room gas fire extinguisher, heptafluoropropane | 1 | Set |
| 5 | Hybrid power supply box 600A (including AC power distribution box) | 6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2, 16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; | 1 | Set |
| 6 | Rectifier module | Rectifier module 50A, high efficiency | 4 | Set |
| 7 | Photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 8 | Set |
| 8 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 2 | Set |
| 9 | Air conditioner | 3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Container site | 5950*2500*2890 (length*width*height), container 20 feet, six-sided PU thermal insulation layer, electrostatic floor laid inside, sufficient for 6 rack positions; | 1 | Tower |
| 2 | Dynamic environment monitoring unit | 4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser. It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. Environmental detection: smoke detector, access control, temperature and humidity, water immersion, etc.; | 1 | Set |
| 3 | Sensor | Environmental detection: smoke sensor, access control, temperature and humidity, water immersion, need to be applied to monitoring; | 1 | Set |
| 4 | Fire extinguisher | Suspended 6kg temperature-controlled gas fire extinguishing device machine room gas fire extinguisher, heptafluoropropane | 1 | Set |
| 5 | Hybrid power supply box 600A (including AC power distribution box) | 6U, rack-mounted, AC input: 100A/3P*2 with interlocking device; AC lightning protection: Class C 30KA-60KA; AC output 63A/2P**2, 16A/1P*3, national standard socket*2; DC Output power distribution: 63A*4, 32A*4*16A*4; equipped with intelligent circuit breaker*3 channels, battery circuit breaker 125A*6; | 1 | Set |
| 6 | Rectifier module | Rectifier module 50A, high efficiency | 4 | Set |
| 7 | Lithium iron phosphate battery | 100AH, rack-mounted -48V, more than 3000 charging cycles, 16S | 8 | Set |
| 8 | Photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 8 | Set |
| 9 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 2 | Set |
| 10 | Air conditioner | 3P energy-saving air conditioner, AC input 220V/380V, cabinet base station air conditioner, with power start, communication 485 interface; | 1 | Set |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
The HJ-SG-R01 is designed to integrate multiple green energy sources such as solar, wind power, and diesel generators. This makes it ideal for remote areas in Australia where grid connectivity is limited. The system’s ability to switch between different energy sources ensures a stable power supply even in challenging conditions.
Yes, the HJ-SG-R01 is designed to operate in both off-grid and on-grid scenarios. In rural areas of Germany, it can provide stable power supply without grid dependency. In urban areas, it can optimize energy usage and reduce costs by integrating with the grid.
The HJ-SG-R01 supports factory prefabrication and can be lifted and installed as a whole unit. This makes it easy to integrate into existing telecom base stations in Australia without significant modifications to the site infrastructure.
The HJ-SG-R01 is designed to operate in a wide range of temperatures (-20°C to +75°C) and humidity levels (5% to 95% non-condensing). It can also handle altitudes up to 4000m, making it suitable for various environments in countries like Japan and Germany.
The above answer is for reference. For further details, please reach out to us.
Telecom Networks: Ideal for powering medium- to large-scale telecom stations in off-grid areas.
Other Applications: Suitable for communication base stations, smart cities, transportation, and power systems, providing stable backup power and optical fiber connectivity in edge site scenarios.
