This option supports the introduction of multiple power sources, such as photovoltaic, wind, and oil generators, and offers multiple voltage outputs (AC 220V, DC 48V, -12V)
Cabinet protection level IP55, salt spray resistance of up to 500 hours, FRP material ensures strong anti-corrosion performance in harsh outdoor environments
Temperature-controlled fan with adjustable wind speed and low power consumption, supporting RS485 serial communication for data upload
Double-layer insulated structure with a low thermal conductivity coefficient of 0.024W/(m﹒K), ensuring optimal thermal management
| Product Specifications | Overall dimensions (width x depth x height) | 900mm(W)×900mm(D)×2200mm(H) IP55 protection; |
| Installation Mode | Landing | |
| Cooling Solution | Intelligent temperature control (Heat exchange/air conditioning, energy-saving automatic switching refrigeration） | |
| AC Input | AC input voltage | Single phase/three phase 380VACInput (dual input interlock) |
| Rectifier module | 50A, fully equipped 400A Shared slot with photovoltaic module | |
| Photovoltaic input | Photovoltaic module capacity | 550Wp*8 pieces;=4.4kw |
| Photovoltaic modules | 50A(3000W)*2 | |
| Wind power | Wind power | 600W~2000W |
| Fan control module | 2KW | |
| Energy storage and backup | Lithium iron phosphate battery | 100AH, 51.2V; fully equipped with 4 groups,Energy storage 20KWH |
| Output Characteristics | DC output voltage | 432VDC~58VDC(Default 535VDC) |
| Output Configuration | Battery: 4*125ADC:63A*4, 32A*4, 16A*6; AC: input 32A*3, lightning protection level C; socket: 2-way; | |
| Monitoring unit system | Signal input | 1Analog input(Battery temperature) 4Number of dry contact inputs |
| Alarm output | 4Road dry contact | |
| Communication interface | RS485 | |
| Storage capacity | Up to 1000 historical alarm records | |
| Sensor | Temperature and humidity, smoke, access control, water immersion | |
| Environment | Operating temperature | -20~+75℃(-40℃Can be started) |
| Storage temperature | -40℃~+75℃ | |
| Operating humidity | 5%~95%(No condensation) | |
| Altitude | ≤4000m(1800m~4000m, each increase in altitude200m, the temperature drops by 1°C. ) |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Outdoor cabinet body | 2100*900*900mm (H*W*D), the cabinet frame is made of 1.5mm galvanized material, with thermal insulation material inside; front/side door opening operation, wall hanging, pole, and floor installation; photovoltaic panel installation position is reserved on the top | 1 | Tower |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Outdoor cabinet body | 2100*900*900mm (H*W*D), the cabinet frame is made of 1.5mm galvanized material, with thermal insulation material inside; front/side door opening operation, wall hanging, pole, and floor installation; photovoltaic panel installation position is reserved on the top | 1 | Tower |
| 2 | Air conditioner + emergency fan | AC1500W air conditioner + air volume 20m3/min emergency fan | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Outdoor cabinet body | 2100*900*900mm (H*W*D), the cabinet frame is made of 1.5mm galvanized material, with thermal insulation material inside; front/side door opening operation, wall hanging, pole, and floor installation; photovoltaic panel installation position is reserved on the top | 1 | Tower |
| 2 | Air conditioner + emergency fan | AC1500W air conditioner + air volume 20m3/min emergency fan | 1 | Set |
| 3 | Hybrid power box (400A) | 6U high, using 3U air switch, AC input: 63A/3P*2 with interlocking device; AC lightning protection: Class C 20KA-40KA; AC output 332A/1P*10A/1P*2, national standard socket*2; DC output Power distribution: 63A*3, 32A*3*16A*4; equipped with 3 intelligent circuit breakers, battery circuit breaker 125A*4; including monitoring unit, excluding rectifier module | 1 | Set |
| 4 | Rectifier module | Rectifier module 50A, high efficiency | 2 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Outdoor cabinet body | 2100*900*900mm (H*W*D), 42U capacity, the cabinet adopts a sandwich composite board structure, 50mm thick insulation material, specific thermal and cold insulation functions, front door structure, IP55 protection level; | 1 | Tower |
| 2 | Air conditioner + emergency fan | AC1500W air conditioner + air volume 20m3/min | 1 | Set |
| 3 | photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 3 | Set |
| 4 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Outdoor cabinet body | 2100*900*900mm (H*W*D), the cabinet frame is made of 1.5mm galvanized material, with thermal insulation material inside; front/side door opening operation, wall hanging, pole, and floor installation; photovoltaic panel installation position is reserved on the top | 1 | Tower |
| 2 | Air conditioner + emergency fan | AC1500W air conditioner + emergency fan with air volume 20m3/min | 1 | Set |
| 3 | Hybrid power box (400A) | 6U high, using 3U air switch, AC input: 63A/3P*2 with interlocking device; AC lightning protection: Class C 20KA-40KA; AC output 332A/1P*10A/1P*2, national standard socket*2; DC output Power distribution: 63A*3, 32A*3*16A*4; equipped with 3 intelligent circuit breakers, battery circuit breaker 125A*4; including monitoring unit, excluding rectifier module | 1 | Set |
| 4 | Rectifier module | 1U, rectifier module 50A, efficiency 95%, hot-swappable structure | 2 | Set |
| 5 | photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 3 | Set |
| 6 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 1 | Set |
| Name | Parameter Description | Quantity | Unit |
| Outdoor cabinet body | 2100*900*900mm (H*W*D), 42U capacity, the cabinet adopts a sandwich composite board structure, 50mm thick insulation material, specific thermal and cold insulation functions, front door structure, IP55 protection level; | 1 | Set |
| Air conditioner + emergency fan | AC1500W air conditioner + air volume 20m3/min | 1 | Set |
| Hybrid power box (400A) | 6U high, using 3U air switch, AC input: 63A/3P*2 with interlocking device; AC lightning protection: Class C 20KA-40KA; AC output 332A/1P*10A/1P*2, national standard socket*2; DC output Power distribution: 63A*3, 32A*3*16A*4; equipped with 3 intelligent circuit breakers, battery circuit breaker 125A*4; including monitoring unit, excluding rectifier module; | 1 | Set |
| Rectifier module | 1U, rectifier module 50A, efficiency 95%, hot-swappable structure; | 1 | Set |
| Lithium iron phosphate battery | 100AH, rack-mounted -51.2V, more than 3000 charging cycles, 16S | 1 | Set |
| photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 1 | Set |
| Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 1 | Set |
| Serial number | Name | Parameter Description | Quantity | Unit |
| 1 | Dynamic environment monitoring unit FSU | 4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser. It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. | 1 | Set |
| 2 | Hybrid power box (200A) | 6U high, using 3U air switch, AC input: 63A/3P*2 with interlocking device; AC lightning protection: Class C 20KA-40KA; AC output 332A/1P*10A/1P*2, national standard socket*2; DC output Power distribution: 63A*3, 32A*3*16A*2; battery circuit breaker 125A*2; including monitoring unit, excluding rectifier module; | 1 | Set |
| 3 | Lithium iron phosphate battery | 100AH, rack-mounted -51.2V, more than 3000 charging cycles, 16S | 1 | Set |
| 4 | Dome camera | ≥2 million infrared hemisphere (POE) (can support external memory card) | 1 | Set |
| 5 | Smart Lock | Smart lock: remote switch, swipe card, mechanical key; | 1 | Set |
| 6 | Photovoltaic panel | Single crystal panel complete set 335W, including adapter and installation accessories | 1 | Set |
| 7 | photovoltaic panel | Single crystal panel complete set 550W, including adapter and installation accessories | 1 | Set |
| 8 | Photovoltaic bracket | Suitable for ground installation of four 550W photovoltaic panels. | 1 | Set |
| 9 | Photovoltaic module | Photovoltaic module 50A, MPPT efficiency: ≥99% | 1 | Set |
| 10 | Wind Turbines | 1KW, including pole body 6 meters high, including wind energy control module | 1 | Set |
| 11 | Heat exchange | 120w/K, DC 48V | 1 | Set |
| 12 | Simple monitoring unit | 4 RS485 serial ports, 4 DI inputs, and 4 DO dry contact outputs. The software has a web management interface. The collector can be configured through a web browser. It supports access to the background monitoring system for centralized monitoring through SNMP or B interface. Environmental detection: smoke detector, access control, temperature and humidity, water immersion, etc. | 1 | Set |
| 13 | Inverter module | 3KW | 1 | Set |
| 14 | Rectifier module | 1U, rectifier module 50A, general efficiency (92-95), hot-swappable structure | 1 | Set |
| 15 | Sensor | Environmental detection: smoke sensor, access control, temperature and humidity, water immersion, need to be applied to monitoring; | 1 | Set |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!

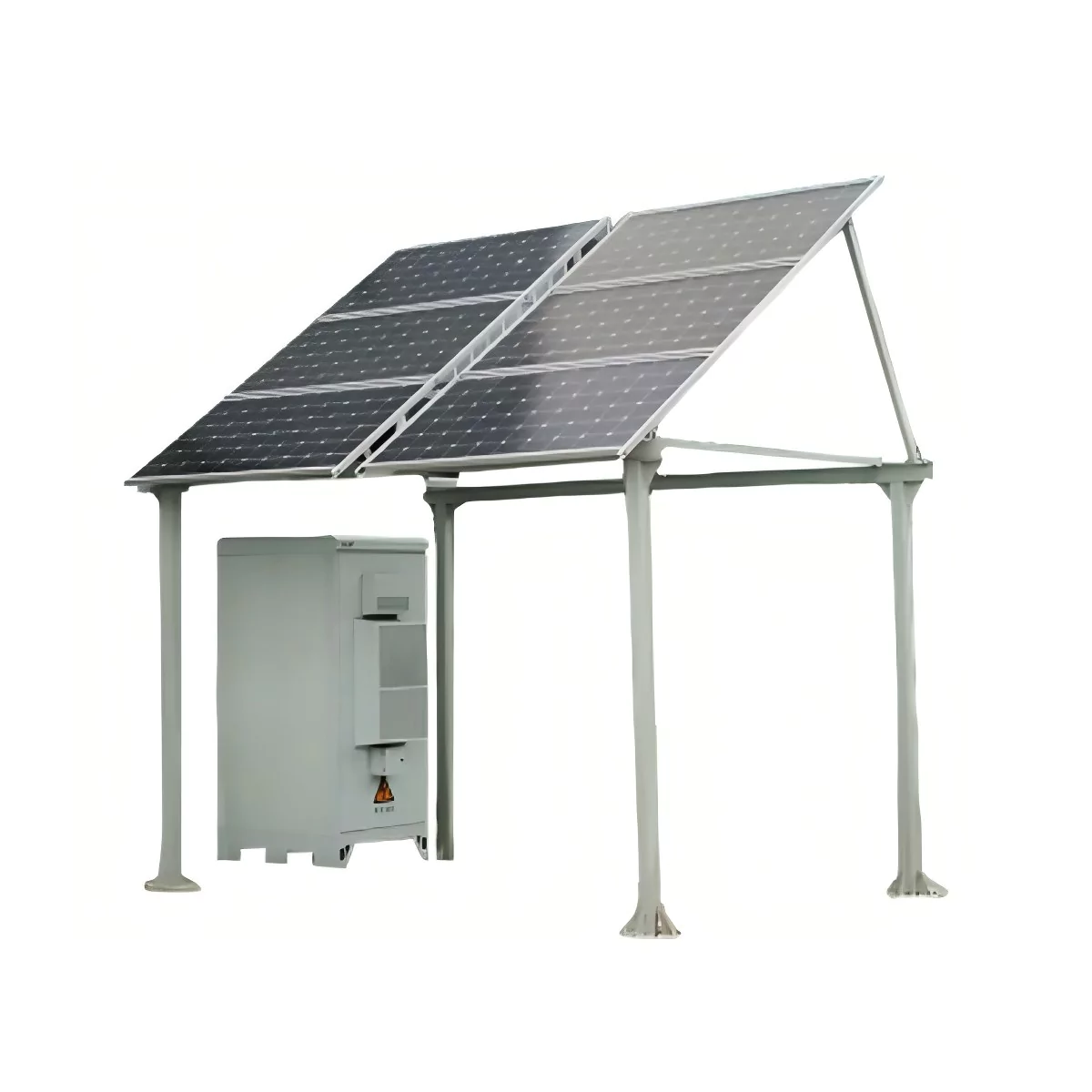

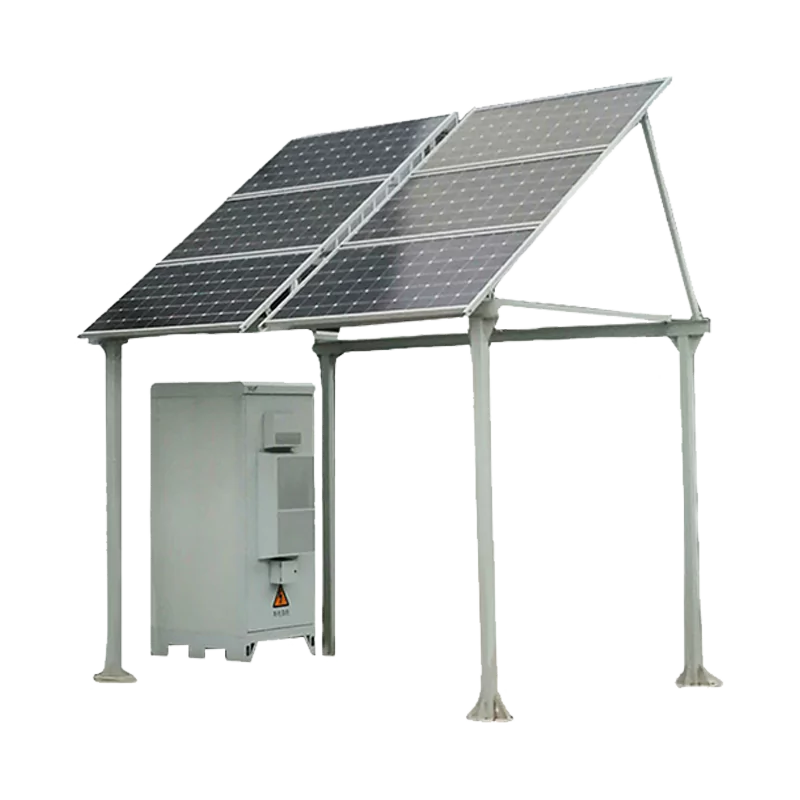

The HJ-SG-D01 Outdoor Communication Single Warehouse Cabinet is designed to support the integration of renewable energy sources such as photovoltaic modules and wind turbines. This makes it an ideal solution for smart city infrastructure in countries like the United States and Australia, where there is a growing emphasis on sustainable energy solutions. The cabinet can handle up to 4.4kW of photovoltaic input and 600W to 2000W of wind power, providing a versatile and eco-friendly power solution for urban and rural smart city projects.
HighJoule Solar Products offers customized solutions to meet specific project requirements. Whether you need additional power capacity, specific voltage outputs, or integration with other renewable energy sources, our team can tailor the HJ-SG-D01 to suit your needs. Contact our experts for more information on customizing the HJ-SG-D01 for projects in regions like Europe, Asia, or North America.
The above answer is for reference. For further details, please reach out to us.
