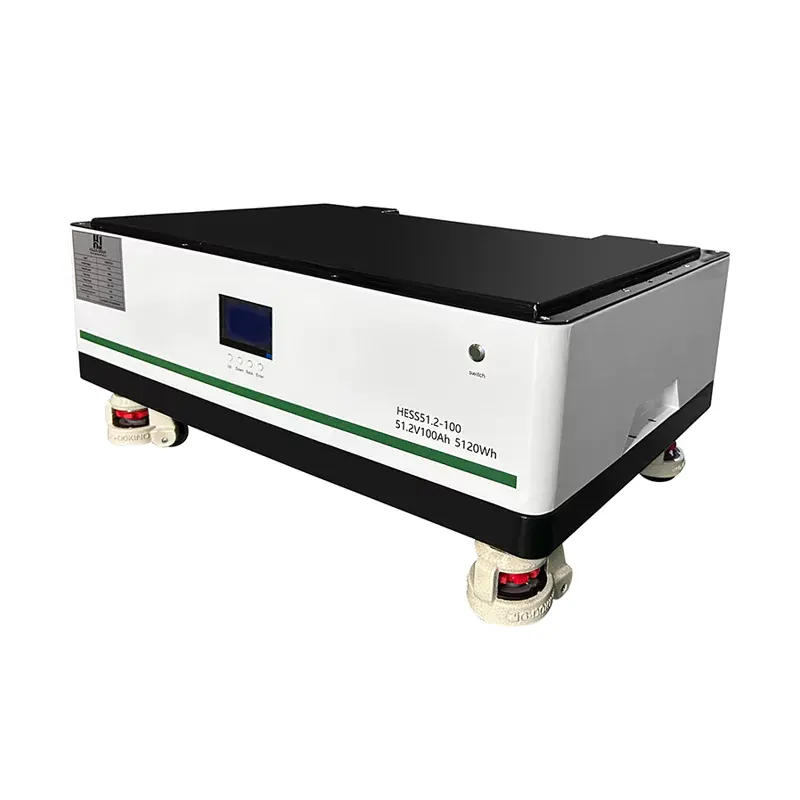

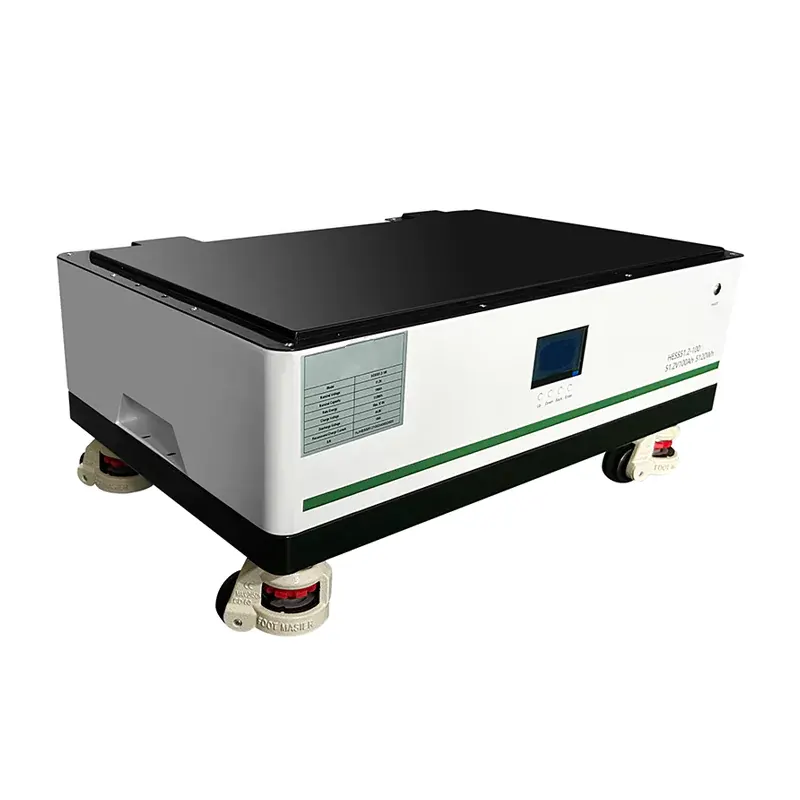

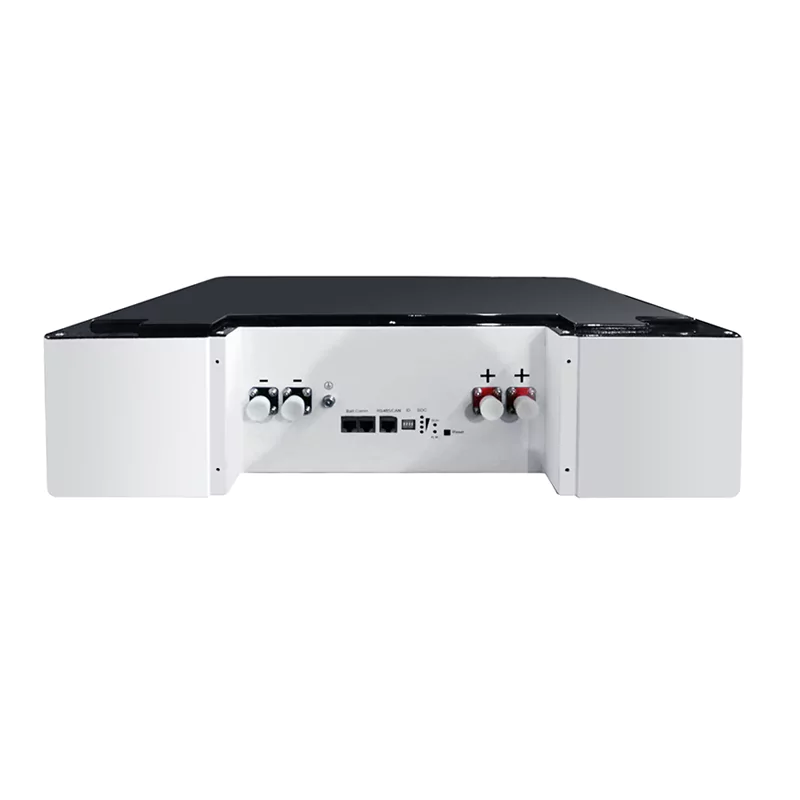

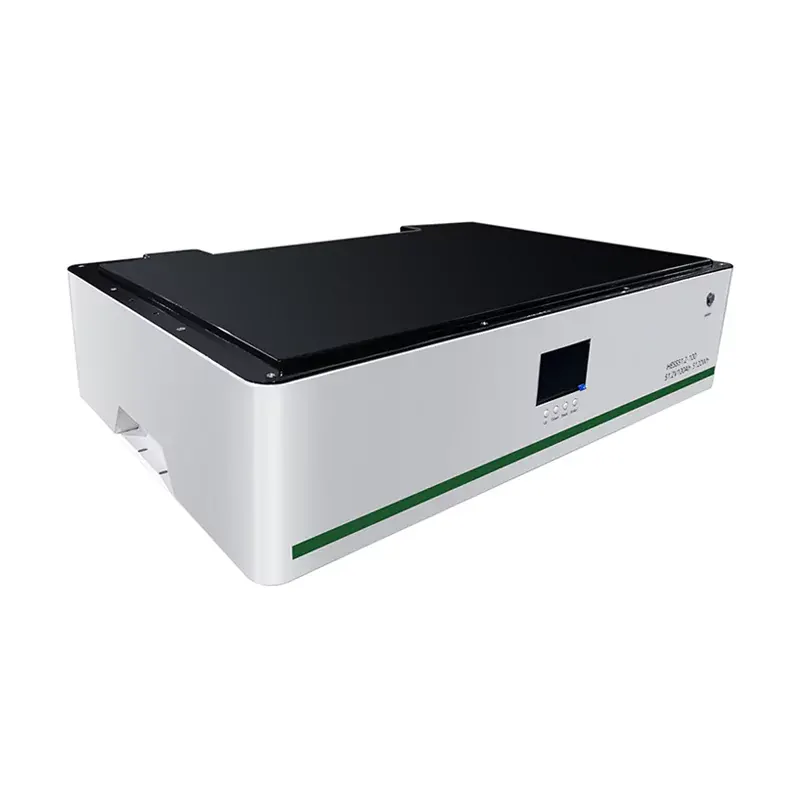

Easily stackable units allow flexible capacity expansion
Built-in smart controller for optimized energy storage and distribution
Compatible with solar power systems, supporting both grid-tied and off-grid applications
Equipped with multi-level protection systems including overcharge, over-discharge, and temperature controls
Compact design simplifies installation and requires minimal maintenance
Helps reduce electricity bills by storing energy during low-cost periods and supplying it during peak demand
| Product Number | HJ-HBH48100S1 | HJ-HBH48100S2 | HJ-HBH48100S3 | HJ-HBH48100S4 |
| Battery Type | Lithium Iron Phosphate Battery | |||
| Battery Power | 10.24kWh | 15.36kWh | 20.48kWh | 25.6kWh |
| Battery Capacity | 200Ah | 300Ah | 400Ah | 500Ah |
| Rated Voltage | 102.4Vdc | 153.6Vdc | 204.8Vdc | 256.0Vdc |
| Parallel Quantity | 2 | 3 | 4 | 5 |
| Rated Charge and Discharge Current | 50A | |||
| Maximum Charge and Discharge Current | 100A | |||
| Cycle Life | > 6000 times @80%DOD@25°C | |||
| Way of Communication | RS485/CAN | |||
| Display Screen | LCD/LED (optional) | |||
| Degree of Protection | IP65 | |||
| Item | Specifications and models | Unit | Quantity |
| Battery system | Including 1 set of battery PACK, BMS system, more than 3000 cycles | SET | 1 |
| Photovoltaic storage inverter | Hybrid type, 1) Photovoltaic input power: ≥5KW and photovoltaic voltage 125V~500V, with MPPT; 2) AC voltage: 230V, frequency 50HZ/60HZ, output power 5KW; 3) Battery voltage: 48V 4) With LCD/LED display, with communication RS485; |
PCS | 1 |
| WIFI module, matching the optical storage integrated inverter for use | PCS | 1 | |
| Power distribution system | / | SET | 1 |
| Accessories in the cabinet | / | SET | 1 |
| Solar panel | 550W, monocrystalline silicon, single plane, N type | PIECE | 6 |
| Solar panel bracket | Suitable for the use of solar photovoltaic panels, the photovoltaic bracket is installed in the inclined roof | SET | 6 |
| Direct current cable | PV1-F 1*4mm²RED | M | 12 |
| Direct current cable | PV1-F 1*4mm²BLACK | M | 12 |
| Ground lead | 6mm²Yellow green ground line | M | 5 |
| Junctor | MC4 male and female Junctors, including male and female Junctor pins. | SET | 2 |
| Wooden packaging | / | SET | 1 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
This system includes a 10kW inverter, 20kWh battery storage capacity, and a 10kWp solar panel array. It is designed to supply reliable solar energy for a typical residential home.
This configuration is ideal for U.S. households with moderate to high electricity consumption, providing enough energy for daily use and backup during outages.
Typically, 10kWp solar panels require about 600-800 square feet (55-75 square meters) of roof or ground space, depending on panel efficiency and layout.
Backup duration depends on household energy usage. With 20kWh battery capacity, the system can power essential appliances for approximately 8-12 hours on average.
Residential energy storage for solar power systems · Backup power supply during grid outages · Peak shaving to lower electricity bills · Off-grid living for remote homes
