The air-cooling system dynamically adjusts cooling levels based on real-time energy consumption, reducing component wear and ensuring optimal performance and system longevity during periods of high demand
Compatible with solar PV and other renewable energy systems, supporting businesses committed to reducing their carbon footprint and achieving long-term sustainability goals
The system features an optional smart energy management system, which uses real-time data analysis and AI-driven energy optimization to enhance energy independence and reduce reliance on unstable grid connections
The system is equipped with multiple safety features, including fire suppression, thermal runaway prevention, and real-time diagnostics, ensuring continuous safe operation

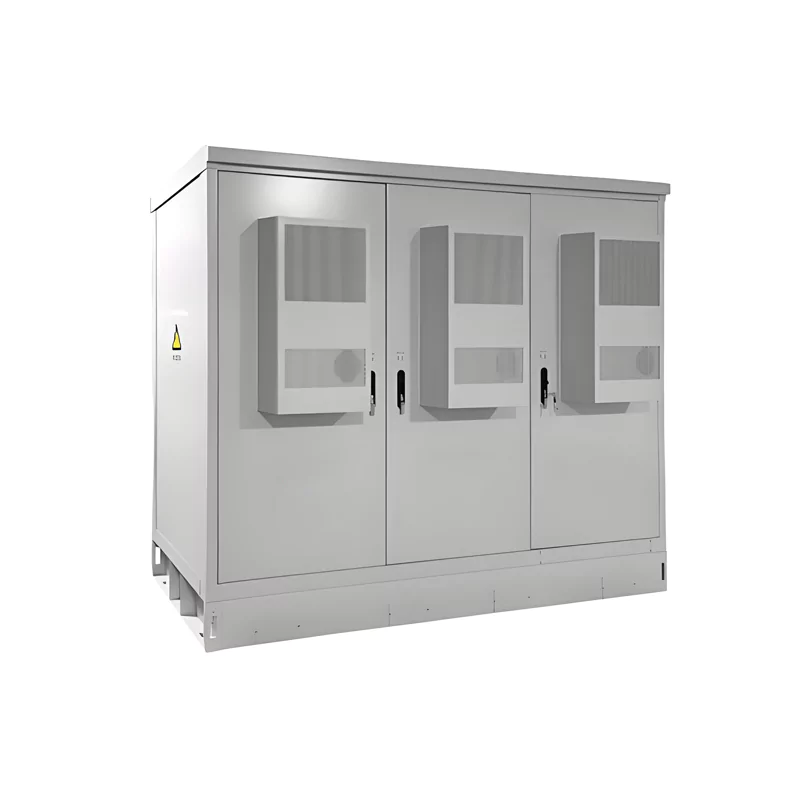

| HJ-ESS-DESA series distributed energy storage system | |||||
| Product number | HJ-ESS-DESA1 | HJ-ESS-DESA2 | HJ-ESS-DESA3 | HJ-ESS-DESA4 | HJ-ESS-DESA5 |
| Number of battery cabinets | 1 | 2 | 3 | 4 | 5 |
| Rated energy | 215kWh | 430kWh | 645kWh | 860kWh | 1075kWh |
| Rated power | 100KW | 200KW | 300KW | 400KW | 500KW |
| System efficiency | 90% | 90% | 90% | 90% | 90% |
| Grid-connected line system | 3W+N+PE | Grid voltage | 380(-15%~+10%) | Grid connection frequency (Hz) | 50(±2)/60(±2) |
| Power Factor | -0.9～+0.9 | Output harmonics | ≤3%(rated power) | Cooling method | Air cooling |
| Cycle life(times) | 80%DOD 6000 | Protection level | IP54 | Installation method | Outdoor, floor installation |
| Weight | ≦2500KG | Certification | CE, ROHS, UN38.3/MSDS | ||
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!

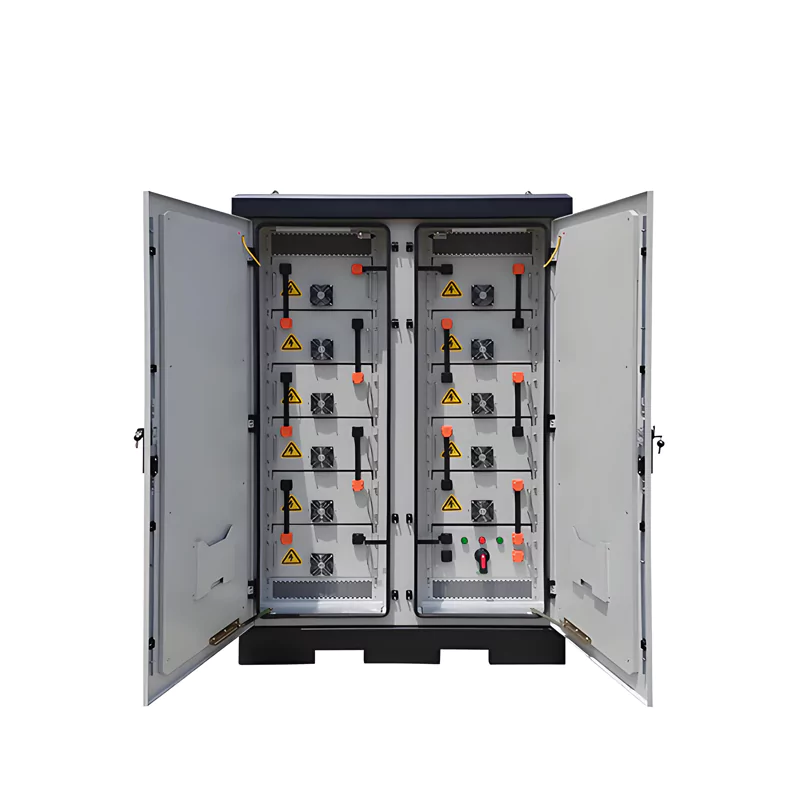

The 215kWh system typically consists of multiple battery modules built with 3.2V 280Ah LiFePO₄ cells arranged in high-voltage series (e.g., 51.2V or 102.4V per module), stacked into racks within an IP54-rated cabinet. Integrated BMS, air cooling units, fire protection, and EMS interface ensure safety and real-time control.
Air cooling offers a cost-effective and low-maintenance thermal management solution for mid-scale systems. It ensures consistent airflow across battery modules through built-in fans and ducts, keeping operating temperatures within 15–35°C for extended cycle life without the complexity of liquid cooling.
This system is ideal for C&I solar storage integration, demand charge reduction, emergency backup, microgrid stabilization, and EV charging stations. It can be deployed as a stand-alone unit or combined into larger systems (e.g., 430kWh, 860kWh) based on user demand.
The system complies with IEC 62619, UN38.3, CE, and optional UL9540A standards. It features multi-level protections: BMS (overvoltage, overcurrent, overtemperature), thermal sensors, airflow monitoring, smoke detection, and optional aerosol fire suppression.
The system supports remote and local monitoring through EMS and SCADA platforms. Real-time data includes voltage, current, SoC, temperature, and alarm logs. Maintenance includes routine fan filter cleaning and system firmware updates. Modular design simplifies servicing and expansion.
Smart Cities and Green Buildings: Ideal for urban developments and eco-friendly buildings, providing intelligent energy storage solutions that stabilize the grid and reduce energy costs in densely populated areas.
Distributed Energy Systems: Suitable for microgrid applications, helping companies in remote or off-grid locations achieve energy independence and reduce reliance on centralized power sources.
