IP55 protection rating, C4-level corrosion resistance, and FRP material, offer excellent anti-corrosion performance for harsh outdoor environments
The energy management system improves energy efficiency and monitoring
Equipped with a rack-mounted lithium iron phosphate battery and an advanced intelligent BMS management system, providing integrated, compact, and lightweight real-time monitoring and protection features.

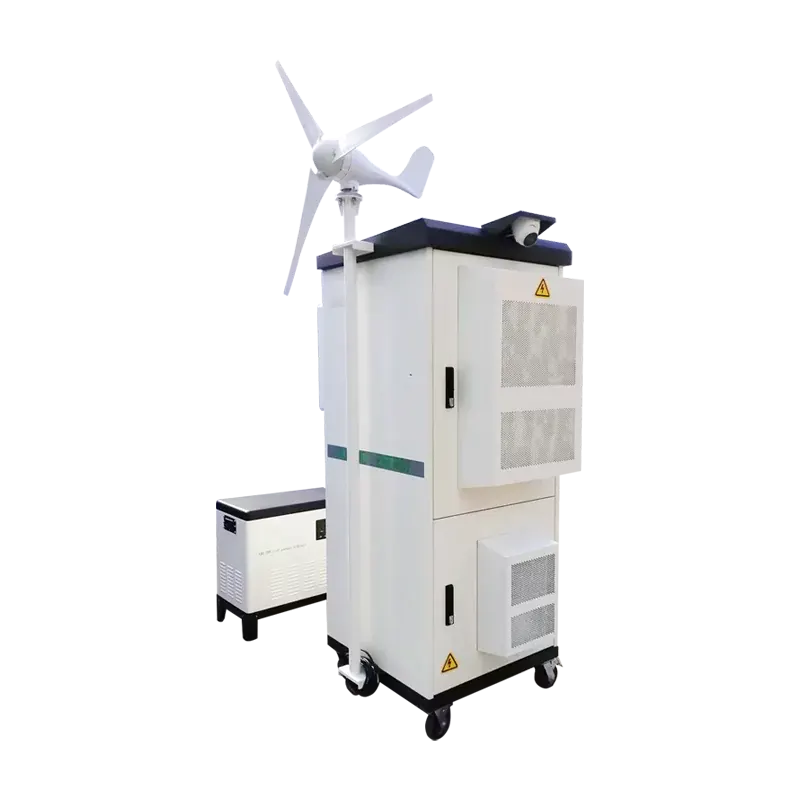

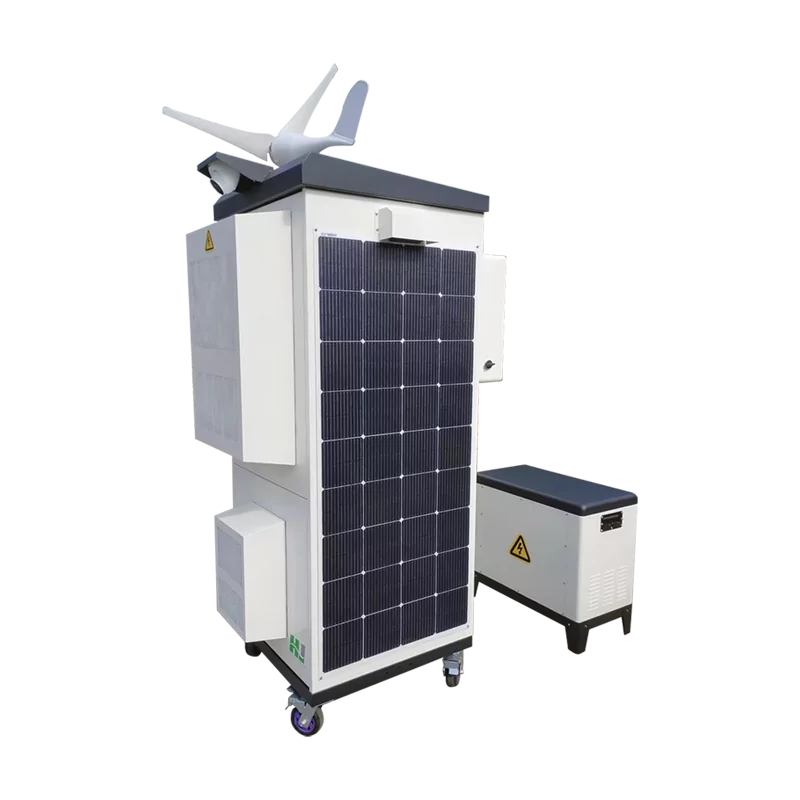

The cabinet includes solar panels and wind turbines, providing a multi-channel power supply to ensure continuous equipment operation
| Parameter Table | Model | |||
| HJ-SG-D02-01 | HJ-SG-D02-02 | |||
| Serial Number | Project | Parameter | ||
| 1 | Environmental Requirements | Operating Temperature | -40～+50℃ | |
| Heat Dissipation Method | 5%～95%, No condensation | |||
| Cooling Method | AC/emergency fan combination | |||
| 2 | Basic Parameters | Size | Sincle warehouse 40U 2100mm*900mm*900mm | Double warehouse 40U2100mm*1750mm*900mm |
| Reserve Space | 10U*1 | 40U | ||
| Temperature Control System | 1.5KW air conditioner/emergency fan+DC300W air conditioner | 1.5KW air conditioner*2/emergency fan | ||
| Dustproof and Waterproof | IP55 | |||
| Weight | <500KG (Equipment not included) | <800KG (Equipment not included) | ||
| 3 | Mains Power Supply | Input voltage | Single-phase 85V AC～300V AC / 380V three-phase, 45Hz～66Hz | |
| Input Current | Single phase 100A | |||
| 4 | Photovoltaic | Photovoltaic Capacity | Maximum 6.6KW | Maximum 6.6KW |
| 5 | Load Output | Capacity | Maximum 24KW | |
| Rectifier Module | Maximum 24KW (-48V) | |||
| Photovoltaic Modules | ||||
| Rectifier Module | 600W(DC 12V/24V) | |||
| Inverter Module | 3KW(220V) | |||
| 6 | Energy Storage System | Lithium iron Phosphate Battery | Maximum20KWh | Maximum30KWh |
| 7 | Dynamo | Diesel Generator sets | Silent type, fully automatic, AC 380V, 8KW~20kw (optional) | |
| 8 | Wind Power | Wind Turbine + Controller | Rated power: 1KW/48V battery system (optional) | |
| Serial number | Name | SpecificationU | nit | Single unit quantity | Remark | In actual use |
| 1 | Outdoor cabinet | 2000*750*750mm (H*W*D), the cabinet frame is made of 1.5mm galvanized material, and the interior is 20mm thick with thermal insulation; front door opening operation, floor installation; separate equipment compartment and battery compartment, 4 casters; | ||||
| 2 | AC air conditioner | AC220V, cooling capacity 1500W | PCs | 1 | Power compartment | |
| 3 | DC air conditioner | DC48V, cooling capacity 300W | PCs | 1 | Battery compartment | |
| 4 | LED light strip | Bluetooth smart LED light strip (5M+ adapter) | Set | 1 | Decorative lights | |
| 5 | USB magic cube socket conversion plug | Deli for home use, 1 to 2+2USB | PCs | 1 | For external devices | |
| 6 | Exhibition site connection cables including plugs | 13A British plug connector, white | PCs | 1 | Optional according to the socket matching on the exhibition site | |
| 7 | Wind Turbines | Power 100W, S type_NE-100S_including 220V mains drive module | PCs | 1 | It’s for display, but it can’t be used in practice. The power is too small, it lacks a controller, and it can’t generate electricity; | Wind turbines of more than 600W need to be equipped with corresponding controllers. They are larger in size and need to be fixed separately (cannot be fixed on the cabinet). |
| 8 | Toolbox | Contains 1 set each of Phillips screwdriver, M8 (13-15mm) and M10 double ratchet wrench (14-17mm), adjustable wrench, and Allen wrench (full set) | PCs | 1 | ||
| 9 | PDU | 6 positions, 10A national standard, 19″ installation, with switch, 3 meters cable | PCs | 1 | ||
| 10 | Multiple input and output power systems | 4U high_AC input 32A/2P (C-level lightning protector 40KA*1_AC output 32/1P control 4-way socket interface_1 group DC 48V output 63A*4_1 group DC 24V output 32A*4_3 groups DC 12V output 32A* 4_Battery circuit breaker 63A*1_Configured 1U circuit breaker_DC24V rectifier module*1_DC12V rectifier module*1_Including power management and control unit (temperature and humidity interface*1_Smoke interface*1_Water immersion interface*1_Door sensor interface *14 channels dry contact) | PCs | 1 | Includes: AC 220V output; DC 48V, 12V, 24V output, including remote control interface function; | |
| 11 | Lighting – inside the cabinet | T5 LED/DC48V(LED type) | PCs | 1 | ||
| 12 | Hot aerosol fire extinguisher | QRR0.1G/SQ- Andun, thermal line 1.5 meters, feedback line 0.5 meters | PCs | 1 | Fire protection inside the cabinet | |
| 13 | Flexible photovoltaic panels | 210W, SMF210W-ETFE_Size: 1540*700*3MM_Voltage 18V | PCs | 1 | It is for display but cannot be used in practice. The power of the photovoltaic panels is too small and the voltage is too small to generate electricity; | Two photovoltaic panels of 550W or above are required. They are large in size and need to be fixed separately (they cannot be fixed on this cabinet). . |
| 14 | 2 million infrared dome camera | DH-IPC Dahua HD 2 million infrared 1080P dome network camera | PCs | 1 | ||
| 15 | Iron lithium battery empty shell | 3U*482.6*420_48V/100AH_Requires front network port and other components, neutral | PCs | 3 | It’s for display, it’s just a casing, there’s no battery inside, so it can’t be used in practice. | If needed, real batteries are required, and the quantity can be 1 to 3 sets; |
| 16 | Swivel casters | 5 inch_load bearing_with brake_rubber | PCs | 4 | ||
| 17 | Photovoltaic inverter | Model, sheet metal shell 530X528X 180mm | PCs | 1 | It’s for display, it’s just a casing, there’s no battery inside, so it can’t be used in practice. | For optional use, if the load end is AC equipment, this photovoltaic inverter can be selected, and the power size is configured according to the size of the equipment; |
| 18 | Diesel generators | Model, sheet metal shell, size 750X 700X 400mm, single-phase 32A oil engine plug and socket | PCs | 1 | It’s for display, it’s just a casing, there’s no battery inside, so it can’t be used in practice. | Optional, selected according to usage scenarios; |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
The HJ-SG-D02 Outdoor Communication Energy Cabinet is designed to provide a robust power solution for remote areas, such as those in rural Australia, where grid connectivity is unreliable. It integrates multiple power generation options, including solar panels and wind turbines, along with a lithium iron phosphate battery storage system. This combination ensures continuous power supply even in off-grid conditions.
The HJ-SG-D02 is built with a high protection level of IP55, C4-level corrosion resistance, and FRP material, making it highly resistant to dust, water, and corrosive elements. This design ensures that the cabinet can withstand extreme temperatures and harsh conditions, such as those found in the Sahara Desert, providing reliable power for communication base stations and remote sites.
The HJ-SG-D02 is equipped with an advanced intelligent BMS (Battery Management System) that provides real-time monitoring and protection for the lithium iron phosphate battery. This ensures optimal battery performance and longevity, even in the cold climates of Canada. The BMS also enhances safety by preventing overcharging and over-discharging, making the system highly reliable for year-round operation.
HighJoule offers customized solutions to meet specific requirements. For applications in the United States, such as communication base stations or edge computing sites, the HJ-SG-D02 can be tailored to include additional power capacity, enhanced cooling systems, or specific renewable energy configurations. Our team of experts can work with you to design a solution that fits your unique needs.
The above answer is for reference. For further details, please reach out to us.
Supports the integration of photovoltaic/wind power/generators, making it ideal for communication base stations, remote sites, and edge computing stations.
