Scalable from 215kWh to multi-MWh configurations for flexible industrial needs.
IP54-rated outdoor cabinet withstands extreme temperatures, dust, and moisture.
LFP batteries with 6,000+ cycles, 95% efficiency, and 10-year lifespan.
Real-time load optimization, peak shaving, and grid interaction via cloud platform.
Certified to UL1973, IEC62619, and UN38.3 for fire/thermal runaway protection.
| HJ-G100-215F (100KW/215KWh) | |||
| DC parameters | AC parameters | ||
| Battery type | Lithium iron phosphate | AC side rated power | 100KW |
| Cell Capacity | 3.2V/280Ah | Maximum power on the AC side | 110KW |
| System Battery Configuration | 1P240S | Total harmonic distortion rate of the cable | <3% at rated power |
| Battery Rated Capacity | 215 KWh | Rated voltage of the AC side | 380V AC |
| Battery voltage range | DC636-876V | AC access method | 3P+N+PE |
| Charge/discharge ratio | 0.5C | Rated grid frequency | 50/60Hz |
| Depth of discharge | 80% | Power factor range | 0.98 |
| Battery cooling method | air cooling | Off-grid operation | Be in favor of |
| System parameter | |||
| Sizes | 1600*1280*2200mm(reference) | Temperature control method | Industrial-grade temperature-controlled air conditioning |
| Protection class | IP55 | Firefighting program | Aerosol, perfluorohexanone |
| System communication protocol | Standard: Modbus | Communication interface | RS485, RJ45 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!

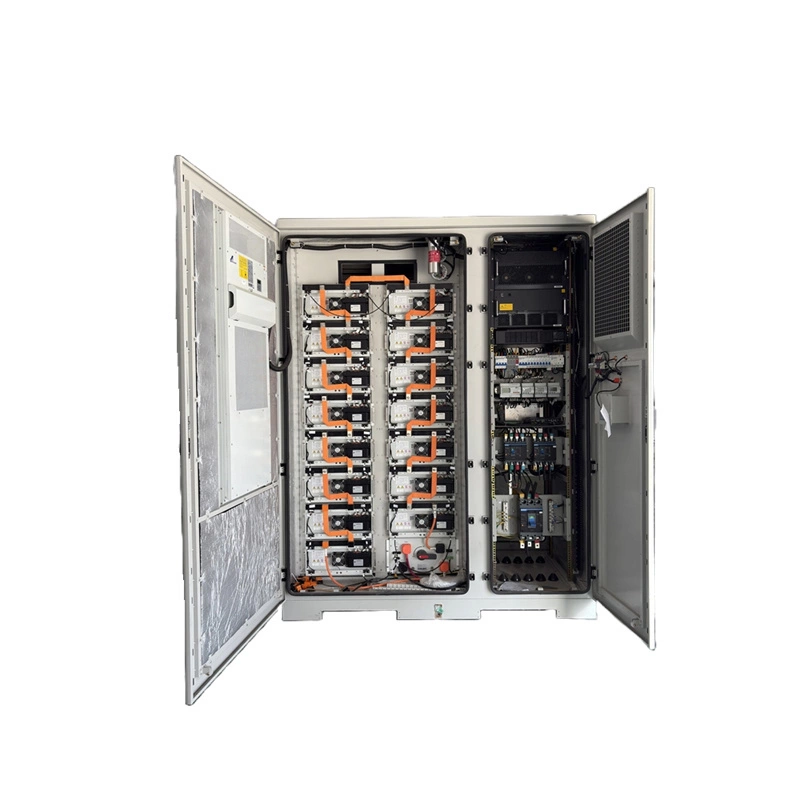

The 215kWh system typically consists of multiple battery modules built with 3.2V 280Ah LiFePO₄ cells arranged in high-voltage series (e.g., 51.2V or 102.4V per module), stacked into racks within an IP54-rated cabinet. Integrated BMS, air cooling units, fire protection, and EMS interface ensure safety and real-time control.
Air cooling offers a cost-effective and low-maintenance thermal management solution for mid-scale systems. It ensures consistent airflow across battery modules through built-in fans and ducts, keeping operating temperatures within 15–35°C for extended cycle life without the complexity of liquid cooling.
This system is ideal for C&I solar storage integration, demand charge reduction, emergency backup, microgrid stabilization, and EV charging stations. It can be deployed as a stand-alone unit or combined into larger systems (e.g., 430kWh, 860kWh) based on user demand.
The system complies with IEC 62619, UN38.3, CE, and optional UL9540A standards. It features multi-level protections: BMS (overvoltage, overcurrent, overtemperature), thermal sensors, airflow monitoring, smoke detection, and optional aerosol fire suppression.
The system supports remote and local monitoring through EMS and SCADA platforms. Real-time data includes voltage, current, SoC, temperature, and alarm logs. Maintenance includes routine fan filter cleaning and system firmware updates. Modular design simplifies servicing and expansion.

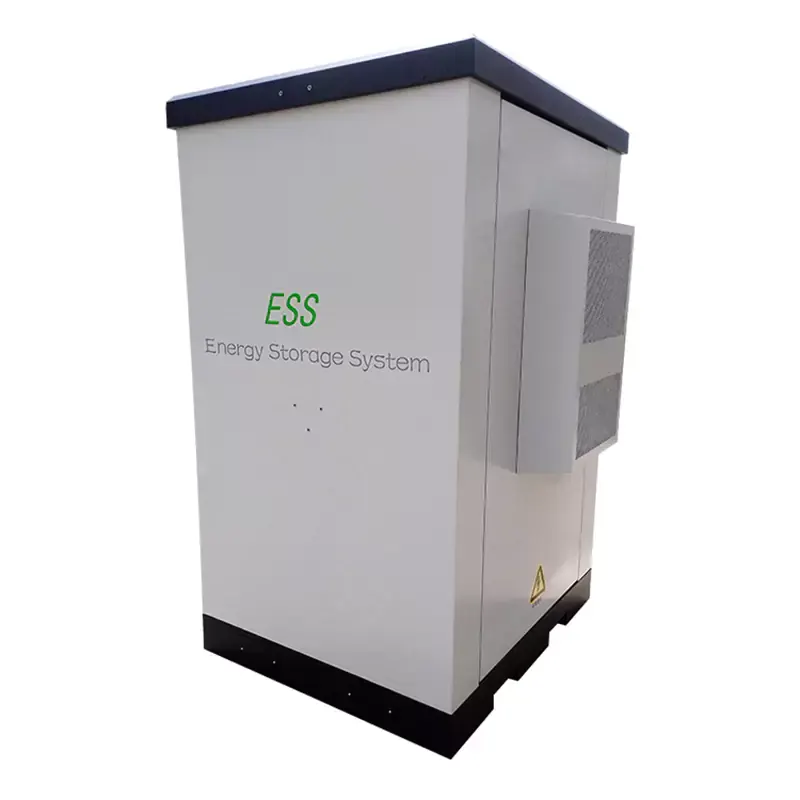

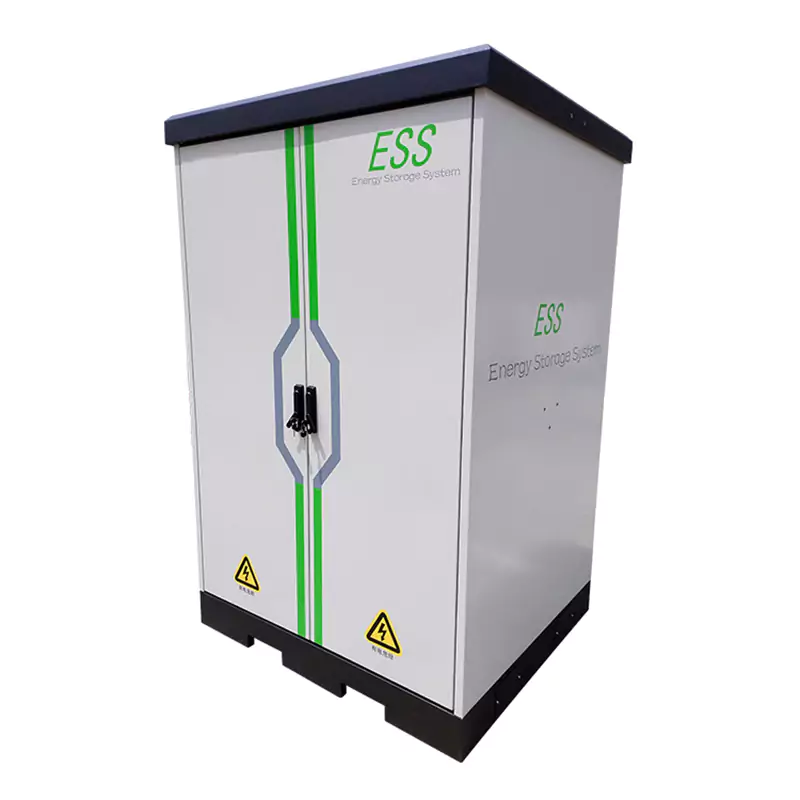

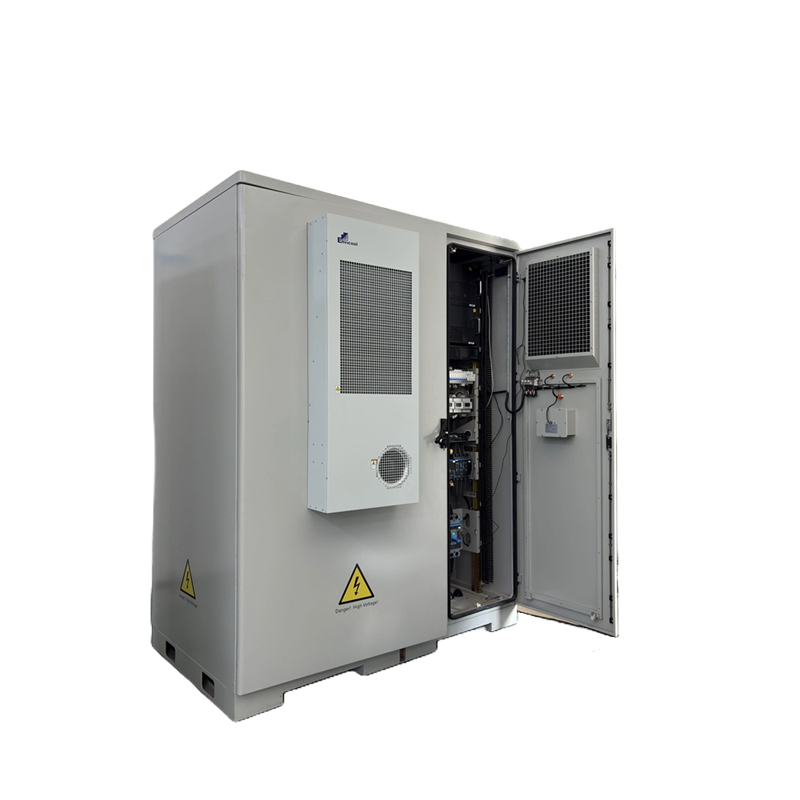

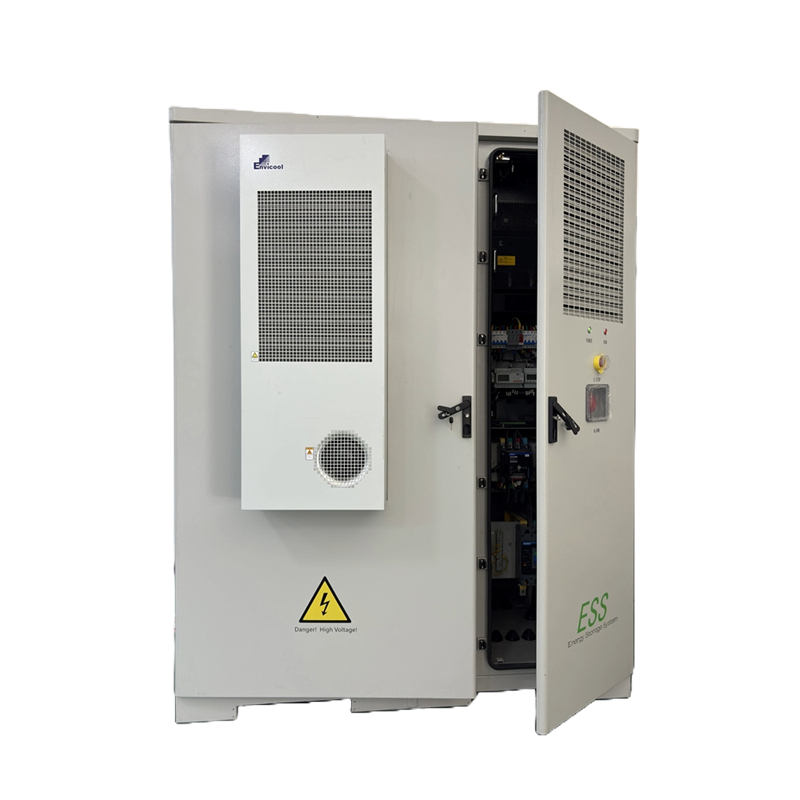

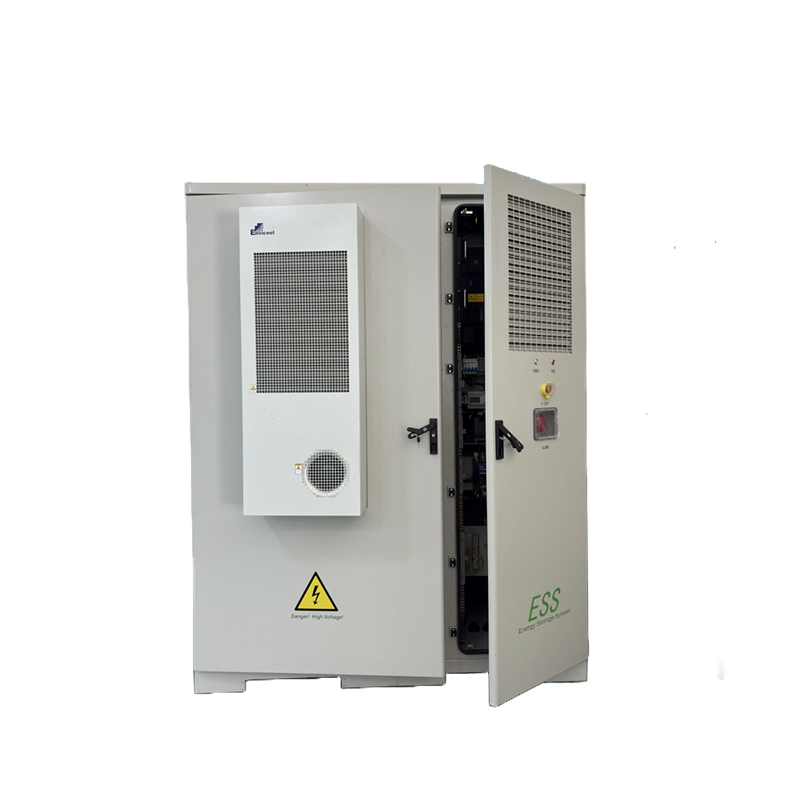

Highjoule 215KWh outdoor cabinet series industrial and commercial energy storage system has high capacity and is designed for factories, data centers, microgrids and large-scale renewable energy projects to ensure stable power supply and peak load regulation. It can be seamlessly integrated with solar/wind energy systems, support demand side management, and provide backup power during power outages.
