10kW integrated system with up to 15kWh capacity, LFP (lithium iron phosphate) battery, reliable energy storage, over 6000 cycles at 90% depth of discharge, ensuring long-lasting performance for home and commercial use.
IP65 protection rating enables the system to operate effectively in harsh outdoor environments with a temperature range of 0°C to 50°C and up to 95% humidity.

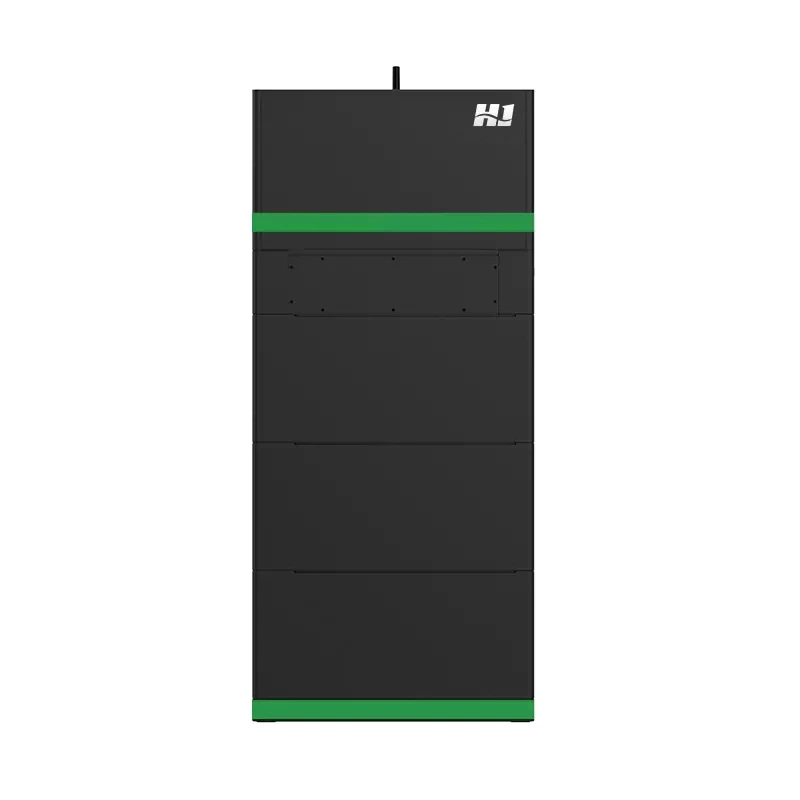

Stackable units for custom installation; scalable to meet higher energy needs. Supports flexible configuration to meet home and commercial needs.
Three MPPT trackers with a wide input range (140-950V) optimize solar energy collection and improve energy efficiency even in poor lighting conditions.
98.4% peak efficiency and 99.9% MPPT efficiency minimize energy loss, ensure maximum power output, and reduce electricity costs.
Supports RS-485, WiFi, 4G and Ethernet, enabling seamless remote monitoring and management through an intuitive EMS platform, and real-time tracking and adjustment of performance.
Equipped with multi-layer safety protection, including fire suppression system, switching time of less than 10ms, it can achieve seamless off-grid operation in emergency situations.
Supports 220/380V, 230/400V voltage grid-connected and off-grid configurations, suitable for a variety of home, office, and commercial energy applications.
20kW high input capacity, supporting up to 1100V PV input voltage, maximizes the use of solar energy, and is ideal for solar homes and businesses.
Provides rated 10kVA backup power with surge capacity up to 20kVA, ensuring reliable backup power with switching time of less than 10ms during grid failures.
| Product model | HJ-H10-H10(k-5) | HJ-H15-H10(k-6) |
| BATTERY PORT | ||
| Bttery Type | Li-on/ Lead-acid | |
| Battery Voltage Range [V] | 90-700 | 90-700 |
| Max. Charging Current [V] | 50 | |
| Max. Discharging Current [V] | 50 | |
| INPUT PV | ||
| Max. PV Input Power [kW] | 20 | |
| Max. PV Input Voltage [V] | 1100 | |
| MPPT Range [V] | 140-950 | |
| Startup Voltage [V] | 120 | |
| Max. Input Current [A] | 16/16/16 | |
| Max. Short Circuit Current [A] | 24/24/24 | |
| MPPT Trackers | 3 | |
| Strings Per MPPT Tracker | 1/1/1 | |
| GRID PORT | ||
| Rated Output Power [kVA] | 10 | |
| Max. Output Current [A] | 16.7 | |
| Max. Output Apparent Power [kVA] | 10 | |
| Max. Input Power [kVA] | 20 | |
| Rated Grid Voltage [Vac] | 220/380,230/400,3/N/PE | |
| Grid Voltage Range [Vac] | 180-270 | |
| Rated Grid Frequency [Hz] | 50/60 | |
| Power Factor | —0.8~+0.8 | |
| THDi | <3% | |
| BACKUP PORT | ||
| Surge Backup Power [kVA] | 20 | |
| Rated Backup Power [kVA] | 10 | |
| Rated Backup Voltage [Vac] | 220/380,230/400,3/N/PE | |
| Rated Backup Frequency [Hz] | 50/60 | |
| THDv | <3%(Linear Load/)/<5%(Non-linear Load) | |
| DCV | <100mA | |
| Crest Ratio | 3:1 | |
| Switch Time [ms] | <10 | |
| EFFICIENCY | ||
| Max. Efficiency[Hz] | 98.40% | |
| Europe Efficiency [Hz] | 97.90% | |
| MPPT Efficiency [Hz] | 99.90% | |
| Max. Round Trip Efficiency [Hz] | 96.00% | |
| HMI&COMM. | ||
| Communication With BMS | CAN/RS-485 | |
| Load Monitoring | Meter/CT/ Backup box | |
| External Communication | RS-485/WIFI/4G/ Ethernet | |
| User Interface | LED/LCD | |
| BATTERY | ||
| Battery Module | 102.4V 5.3kWh | |
| Cell Type | LFP(LiFePO4) | |
| Number of Modules | 2 | 3 |
| Total Energy [kWh] | 10.6 | 15.9 |
| Nominal Voltage [V] | 204.8 | 307.2 |
| Operating Voltage [V] | 160-233.6 | 240-350.4 |
| Max Charge/ Discharge Current [A] | 52 | 52 |
| Continue Discharge Output [kW] | 10 | 15 |
| GENERAL SPECIFICATIONS | ||
| Dimensions (W*D*H)[mm] | 740*220*1317 | 740*220*1652 |
| Approximate Weight [KG] | 141 | 191 |
| Protection Degree | IP65 | |
| Operating Temperature[℃] | Charge:0℃-50℃/ Discharge:0℃-50℃ | |
| Storage Temperature [℃] | 0℃-35℃ | |
| Humidity | ≤95% | |
| Altitude [m] | ≤3000 | |
| Cycle Life | Inverter:5 years/10 years; Battery: 10+ years,6000 cycles(90% DOD,25℃) | |
| Installation | Stack, Floor-Mounted | |
| CETIFICATION | ||
| Grid Regulation Safety | VDE-AR-N4105:2018,G98,G99,C10/11:2021,NTS 631,RD647:2020,UNE 217002:2020,CEI0–21,VDE 0126–1-1,NR | |
| Safety Regulation | IEC/EN 62109-1&2,IEC/EN 62477-1:2012 | |
| EMC | IEC/EN 61000,IEC/EN 61000-6-2,IEC/EN 61000-6-3,IEC/EN 61000-6-4 | |
| Battery | UN38.3,IEC62619 | |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
The HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System offers several key benefits for residential use in the United States. It provides reliable energy storage with a capacity of up to 15.9kWh, using LFP batteries that ensure over 6000 cycles at 90% depth of discharge. The system is designed for all-weather use with an IP65 rating, making it suitable for installation in garages, basements, or on exterior walls. It also features advanced MPPT technology for 98.4% peak efficiency and fast, seamless off-grid switching (<10ms) during power outages.
The HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System is optimized for solar energy integration in European homes. It supports a wide range of grid-connected and off-grid configurations, including 220/380V and 230/400V voltage options. The system’s 20kW high input capacity and support for up to 1100V PV input voltage maximize the use of solar energy, making it ideal for homes looking to reduce electricity costs and enhance energy independence.
The HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System provides a rated 10kVA backup power with a surge capacity up to 20kVA. This ensures reliable backup power during grid failures in Australia, with a switching time of less than 10ms. The system’s fast and seamless off-grid operation helps maintain essential household functions during outages.
Yes, the HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System is designed with a modular and stackable architecture. This allows for easy expansion to meet growing energy needs in Canadian homes. The system can be scaled from 10kWh to 15kWh and supports flexible configuration to accommodate various household and commercial requirements.
The HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System includes comprehensive safety features for residential installations in the UK. It is equipped with a multi-layer safety protection system, including a fire suppression system and a backup switch time of less than 10ms. The system also meets various safety and grid regulation standards, ensuring reliable and safe operation in all conditions.
The above answer is for reference. For further details, please reach out to us.
The HighJoule 10kW Integrated Three-Phase Stackable Home Solar Storage System (Models: HJ-H10-H10 and HJ-H15-H10) provides up to 15.9kWh of reliable energy storage for residential use. With LFP batteries offering over 6000 cycles at 90% depth of discharge, it’s designed for all-weather use with an IP65 rating, making it ideal for installation in garages, basements, or on exterior walls. The stackable, modular design allows for flexible installation and easy expansion as energy needs grow. Advanced MPPT technology ensures 98.4% peak efficiency, while the system provides 10kVA rated backup power and fast, seamless off-grid switching (<10ms), ensuring reliable energy supply during outages. Perfect for homes looking to maximize solar energy and reduce electricity costs.
