20.48 kWh (HJ-H20-H10) and 25.6 kWh (HJ-H25-H15) capacities with LiFePO4 tech—enough to power a home’s daily appliances, from TVs and refrigerators to air conditioners. The long-lasting battery cells mean reliable storage for years, even with daily use.
Max solar input reaches 17,000W (HJ-H20-H10) and 25,500W (HJ-H25-H15), so it soaks up sunlight efficiently. With a wide 180-900V input range and dual MPPT, it keeps harvesting power even if panels are partially shaded—no more wasted sunlight.
Switches between grid-connected and off-grid in under 10ms. That means if the grid goes out, your lights, fridge, and Wi-Fi stay on—no blips, no interruptions to daily life.
Works with 380/400V three-phase setups, perfect for homes with big appliances. The HJ-H25-H15 puts out 15,000W steadily, handling everything from electric ovens to water heaters without breaking a sweat.
88% system efficiency means almost all the solar power you capture gets used—hardly any energy is lost. Over time, that adds up to lower bills and more value from your solar setup.
Works from -25°C (freezing cold) to 60°C (scorching heat). Whether you live in a snowy area or a hot climate, it keeps performing reliably.
Protects against voltage spikes, too much current, and short circuits. Plus, it’s IP65 rated—dustproof and water-resistant, so you can put it in the garage or even a covered outdoor spot.
50A charging and discharging means it can quickly store solar energy or send power out when you need it—great for sudden high-power uses, like firing up the AC on a hot day.
Check performance and adjust settings remotely using apps or computers (via RS485, Ethernet, etc.). See how much power you’re using, tweak storage, and stay on top of energy habits.
Stackable design lets you add more battery packs later. If you get an electric car or expand your home, just upgrade—no need to replace the whole system.
| Product model | HJ-H20-H10(k-2) | HJ-H25-H15(k-3) |
| Photovoltaic Parameters | ||
| Maximum Input Power [W] | 17000 | 25500 |
| Maximum Input Voltage [V] | 1000 | |
| Operating Voltage Range/Rated Voltage [V] | 180~900/610 | |
| Maximum Input Current [A] | 18/18 | 36/36 |
| Maximum Short-Circuit Current [A] | 20/20 | 40/40 |
| Number of MPPT | 2 | |
| Number of Input String per MPPT | 1/1 | |
| AC Parameters (Grid-Connected End) | ||
| Rated Output Power (W) | 10000 | 15000 |
| Maximum Apparent Output Power (VA) | 11000 | 16500 |
| Maximum Input Power (W) | 18000 | 30000 |
| Rated Voltage (Vac) | 380/400V,3L/N/PE | |
| Rated Frequency (Hz) | 50/60 | |
| Maximum Output Current (A) | 16 | 24 |
| Maximum Three-Phase Unbalanced Output Current [A] | 22 | 33 |
| Grid Bypass Current [A] | 35 | 50 |
| Power Factor Range | ~1 (0.8 advance, 0.8 delay, adjustable) | |
| Total Current Harmonic Distortion (@ Rated Power) (%) | <3 | |
| AC Parameters (Off-Grid Side) | ||
| Rated Output Power (W) | 10000 | 15000 |
| Maximum Apparent Output Power (VA) | 11000 | 16500 |
| Rated Output Voltage (Vac) | 380/400V,3L/N/PE | |
| Rated Output Frequency (Hz) | 50/60 | |
| Maximum Three-Phase Unbalanced Output Current [A] | 22 | 33 |
| Maximum Single-Phase Apparent Output Power [VA] | 5000 | 7500 |
| Peak Output Apparent Power (VA) (60s) | 12000 | 18000 |
| Peak Output Apparent Power (VA) (10s) | 15000 | 22500 |
| Grid-Tied/Off-Grid Switching Time (ms) | <10 | |
| AC Parameters (Diesel Generator End) | ||
| Rated Voltage (Vac) | 380/400V,3L/N/PE | |
| Rated Frequency (Hz) | 50/60 | |
| Rated Input Apparent Power (VA) | 10000 | 15000 |
| Battery Parameters | ||
| Operating voltage range (V) | 204.8 | 256 |
| Rated charging/discharging current (A) | 50/50 | |
| Maximum charging/discharging current (A) | 50/50 | |
| Number of Batteries | 4 | 5 |
| Single Battery Pack Capacity (kWh) | 5.12 | |
| Rated Capacity (kWh) | 20.48 | 25.6 |
| Available Capacity (kWh) | 18.43 | 23.04 |
| System Efficiency | ||
| Standard Ambient Temperature System Efficiency [%] | 88 | |
| Basic Parameters | ||
| Operating Temperature Range (℃) | -25 to 60 (>45 reduction) | |
| Operating Altitude (m) | <4000 | |
| Protection Rating | IP65 | |
| Relative Humidity Range (%) | 0 to 95, no condensation | |
| Dimensions (W×H×D) (mm) | 510*447*1323 | 510*447*1463 |
| Certification Standards | ||
| Certification Standards | IEC62109-1/-2 | |
| Safety Standards | EN61000-6-1/-3,IEC61000 | |
| EMC Standards | AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE-R25,EN50549-1:2019 for Poland A&B | |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
This system includes a 10kW inverter, 20kWh battery storage capacity, and a 10kWp solar panel array. It is designed to supply reliable solar energy for a typical residential home.
This configuration is ideal for U.S. households with moderate to high electricity consumption, providing enough energy for daily use and backup during outages.
Typically, 10kWp solar panels require about 600-800 square feet (55-75 square meters) of roof or ground space, depending on panel efficiency and layout.
Backup duration depends on household energy usage. With 20kWh battery capacity, the system can power essential appliances for approximately 8-12 hours on average.

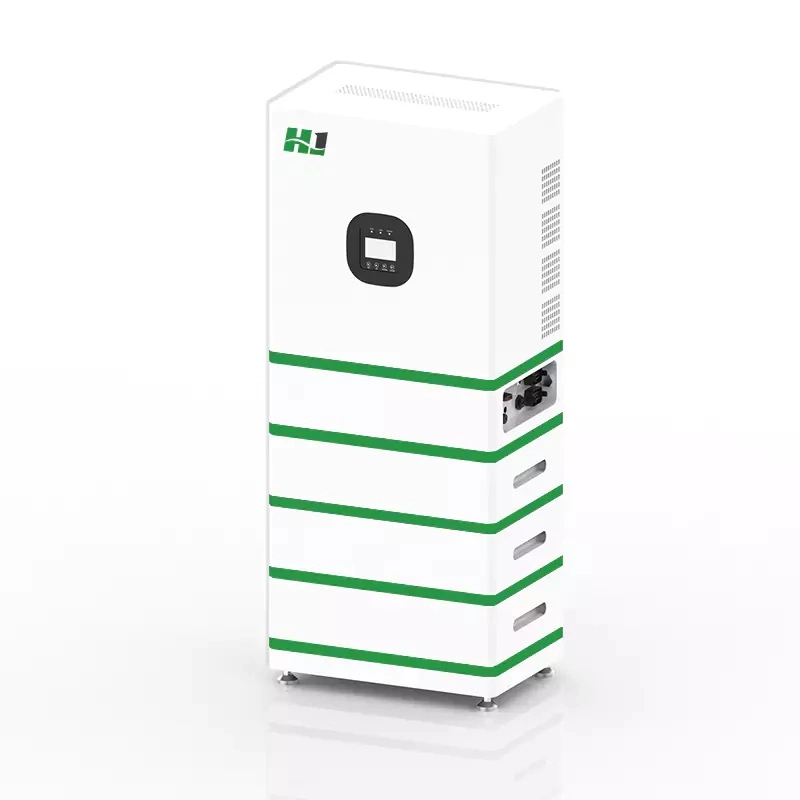

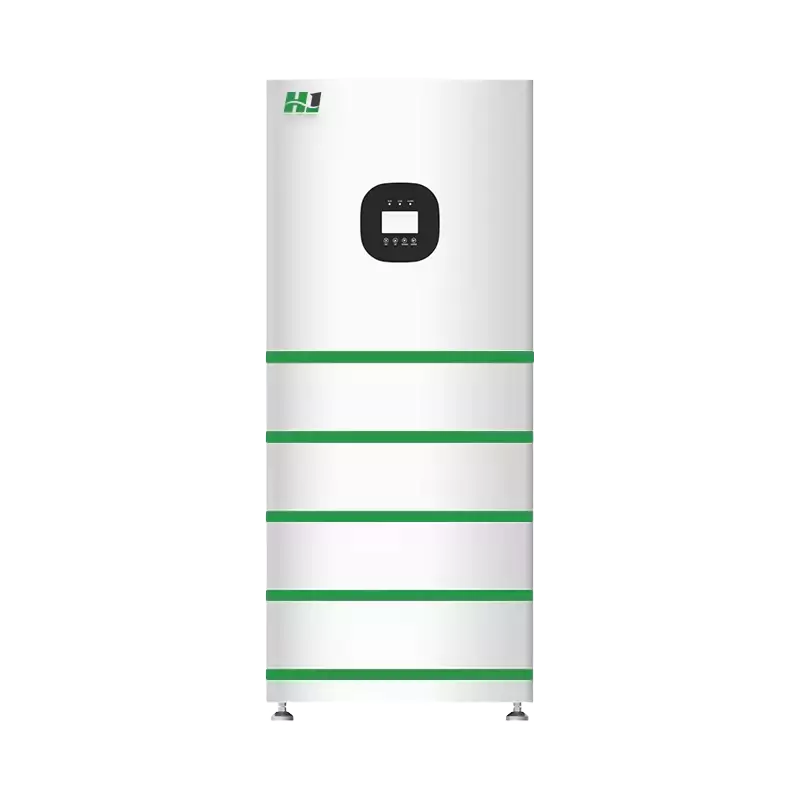

The HighJoule 20kWh/25kWh Three-Phase Stacked All-in-One System (models HJ-H20-H10(k-2)/HJ-H25-H15(k-3)) is primarily designed for households. With dual MPPT PV input (17kW for 20kWh model, 25.5kW for 25kWh model), it efficiently captures solar energy for daily use. Its 50A charging/discharging capacity handles high-power home appliances like air conditioners and EV chargers. The <10ms grid-to-off-grid switching ensures no interruptions to essentials—refrigerators, lighting, home offices—during outages. With a -25℃ to 60℃ operating range and IP65 protection, it works reliably in diverse home environments. It also supports gradual expansion from 20kWh, adapting to growing household needs. Beyond homes, its stable 380/400V three-phase output and 15kW rated power (HJ-H25) make it suitable for small offices, powering workstations, printers, and AC systems.
