Integrates solar, grid, diesel generator, and batteries with AI-optimized fuel management, extending backup power to 72+ hours during outages - 400% longer than battery-only systems.
Self-heating batteries maintain 85% efficiency in extreme cold (-25°C) with IP65 armored housing, outperforming standard systems that fail below -10°C.
Delivers ultra-clean sine wave output (THDi<3%) with <10ms grid switching, ensuring zero interruption for medical equipment and sensitive electronics.
Replace individual 4.096kWh battery packs in 10 minutes without system shutdown, eliminating downtime during service compared to conventional ESS.
Features 25 pre-loaded international certifications (VDE, AS/NZS, NRS, OVE) for plug-and-play installation across 30+ countries without retrofit costs.
| Product model | HJ-H16-H08(k-1) |
| Photovoltaic Parameters | |
| Maximum Input Power [W] | 12000 |
| Maximum Input Voltage [V] | 590 |
| Operating Voltage Range/Rated Voltage [V] | 80~500/360 |
| Maximum Input Current [A] | 16/16 |
| Maximum Short-Circuit Current [A] | 20/20 |
| Number of MPPT | 2 |
| Number of Input String per MPPT | 1/1 |
| AC Parameters (Grid-Connected End) | |
| Rated Output Power (W) | 8000 |
| Maximum Apparent Output Power (VA) | 8800 |
| Maximum Input Power (W) | 8800 |
| Rated Voltage (Vac) | 230,L/N/PE |
| Rated Frequency (Hz) | 50/60 |
| Maximum Output Current (A) | 34.8 |
| Power Factor Range | ~1 (0.8 advance, 0.8 delay, adjustable) |
| Total Current Harmonic Distortion (@ Rated Power) (%) | <3 |
| AC Parameters (Off-Grid Side) | |
| Rated Output Power (W) | 8000 |
| Maximum Apparent Output Power (VA) | 8800 |
| Rated Output Voltage (Vac) | 230,L/N/PE |
| Rated Output Frequency (Hz) | 50/60 |
| Peak Output Apparent Power (VA) (60s) | 8400 |
| Peak Output Apparent Power (VA) (10s) | 9000 |
| Grid-Tie/Off-Grid Switching Time (ms) | <10 |
| AC Parameters (Diesel Generator End) | |
| Rated Voltage (Vac) | 230,L/N/PE |
| Rated Frequency (Hz) | 50/60 |
| Rated Input Apparent Power (VA) | 8000 |
| Battery Parameters | |
| Operating Voltage Range (V) | 306~408 |
| Rated Charging/Discharging Current (A) | 25/25 |
| Maximum Charging/Discharging Current (A) | 30/30 |
| Number of Batteries | 4 |
| Single-pack battery capacity (kWh) | 4.096 |
| Rated capacity (kWh) | 16.384 |
| Available capacity (kWh) | 14.75 |
| Efficiency | |
| Standard ambient temperature system efficiency [%] | 88% |
| Basic parameters | |
| Operating temperature range (℃) | -25 to 60 (>45 derating) |
| Operating altitude (m) | <4000 |
| Protection rating | IP65 |
| Relative humidity range (%) | 0–95, no condensation |
| Dimensions (W×H×D) (mm) | 425*340*1750 |
| Certification standards | |
| Certification standards | IEC62109-1/-2 |
| Safety standards | EN61000-6-1/-3,IEC61000 |
| EMC standards | AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE- |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet / Get your free product catalog and the latest pricing!
Usually around 1 to 2 hours with a professional team:
Output varies based on sunlight:
| Weather | Output Range | Example Usage |
|---|---|---|
| Sunny (8 sun hours) | 1200 – 1400 kWh | Can power a small commercial building for 8 – 10 hours. |
| Partly Cloudy (5 sun hours) | 800 – 1000 kWh | Can support a residential home with multiple appliances for 12 – 15 hours. |
| Overcast (3 sun hours) | 400 – 600 kWh | Can keep essential household appliances running for 6 – 8 hours. |
Not really:
| Metric | HJ-H16-H08(k-1) | Other Systems |
|---|---|---|
| Energy Conversion Efficiency | Up to 95% | 85% – 90% |
| Power Loss in Grid Switching | Less than 2% | 3% – 5% |
| Battery Charge/Discharge Efficiency | 90% – 92% | 80% – 88% |
Several backup features:
The above answer is for reference. For further details, please reach out to us.

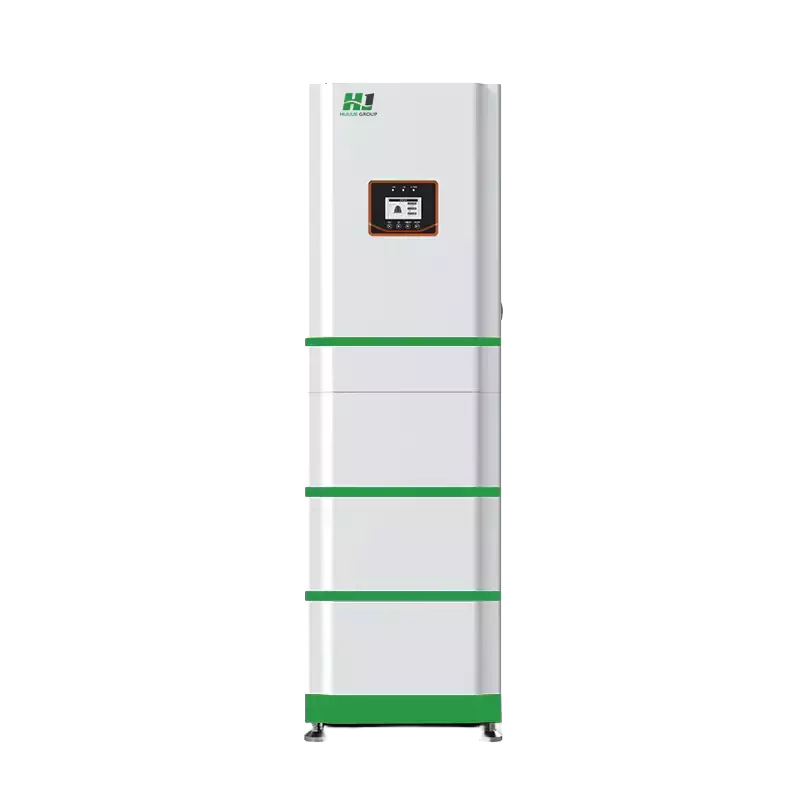

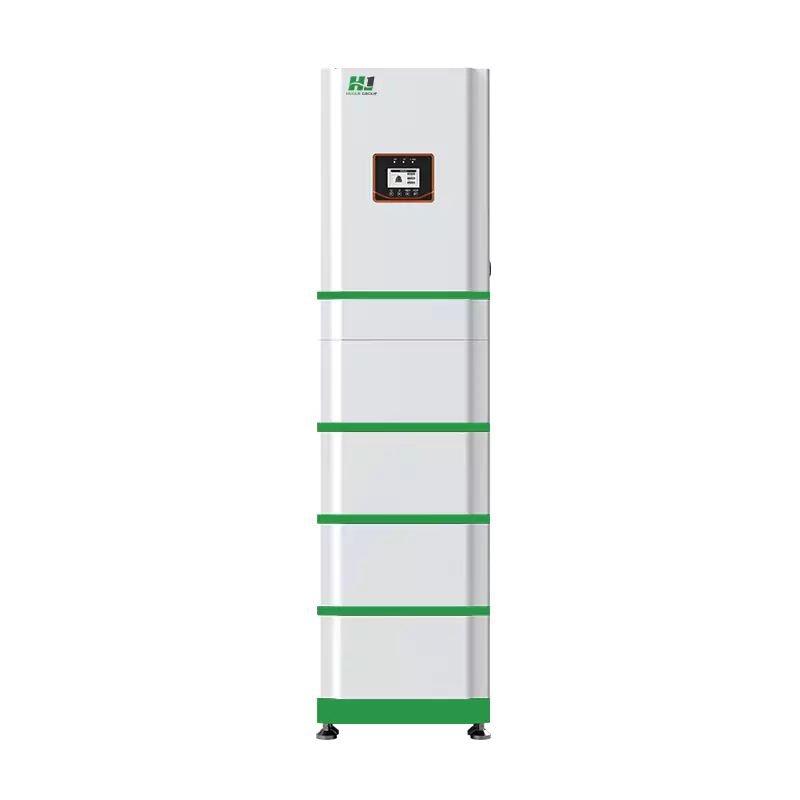

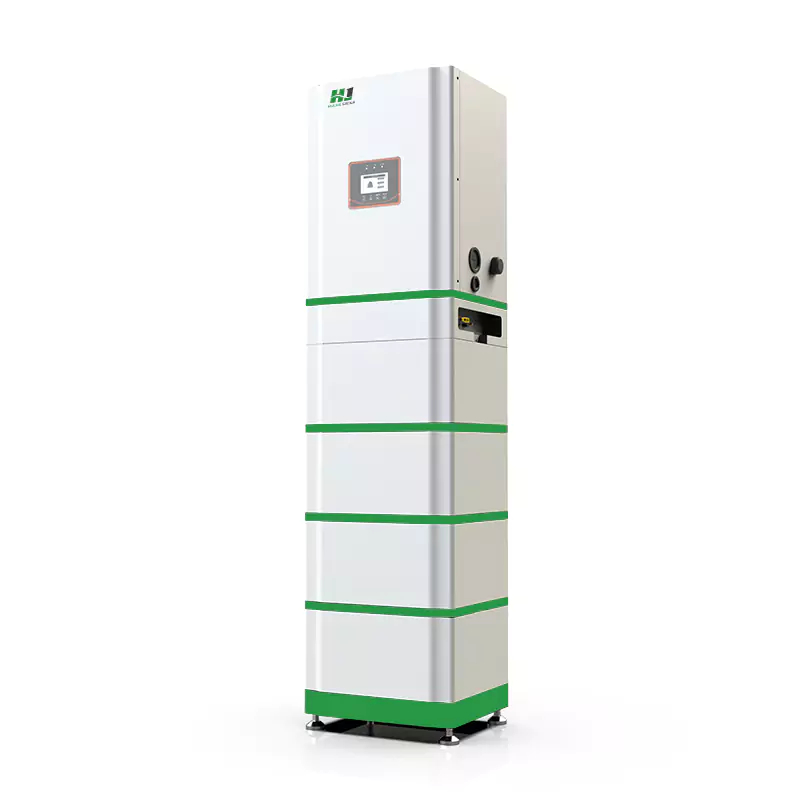

The HJ-H16-H08(k-1) Hybrid Stack Home Energy Storage System is tailored for residential and small commercial use, featuring a 16.384kWh rated capacity and 4.096kWh modular batteries that enable rapid expansion to meet growing energy requirements. It distinguishes itself with dual MPPT technology to maximize solar energy capture under variable light conditions, can supply up to 9,000VA peak power for demanding loads, has an IP65 protection for resilience in harsh environments, guarantees seamless backup power during outages with a <10ms grid-switching time, maintains 85% efficiency in temperatures as low as -25°C thanks to its self-heating batteries which is ideal for extreme climate regions, and comes with pre-loaded international certifications for plug-and-play installation across over 30 countries, thus offering remarkable versatility for global deployments.
