Solar system design isn’t a blind guesswork based on rules of thumb, but rather it is the result of comparing and matching three main components: solar panels, batteries and solar inverter. If any of the components is too small or too large, the system as a whole is inefficient or unreliable. This instruction will teach you how to compute each part step by step so that the system supplies you with stable and reliable power for a long time.

A properly sized solar inverter facilitates safe conversion of energy coming from the panels and batteries into usable electricity for the home, and the battery bank provides adequate energy to meet nighttime and emergency demands. The following calculations are based on proven real-world design techniques for residential and small off-grid.

Step 1: Calculate Your Daily Energy Use

Before sizing equipment, determine how much electricity is used per day.

Make a list of all the appliances along with their wattage and then multiply that by the number of hours you’d be running them in a day.

Sample:

• LED lights: 10 W × 5 number × 6 hours = 300 Wh
• Fridge:150 W × 8 hours = 1,200 Wh
• Laptop: 60 W × 4 h = 240 Wh

Daily consumption total = 1,740 Wh (1.74 kWh)

This figure is the basis for sizing the solar panel, batteries, and inverter.

Why accurate load estimation matters

Load underestimation results in brach power outages. Overestimation leads to higher cost and worse system efficiency. Real use patterns involving refrigerator cycling or seasonal variations should be taken into account.

Step 2: Size the Solar Panels

The solar panels should produce sufficient energy to meet your daily electricity use and account for system losses.

Basic formula

Solar capacity required (in watts) = Daily energy (Wh) ÷ Peak sun hours ÷ System efficiency

Assume:

• Daily energy: 1,740 Wh
• Peak sun hours: 4 hours
• Efficiency factor: 0.75

Calculation:

1740 ÷ 4 ÷ 0.75 ≈ 580 W

That means you need about 600 W of solar panels.

Practical considerations

• Add 10–25% buffer for cloudy days
• Panel orientation and shading affect output
• Temperature reduces efficiency

In general, 700–800 W of PV might be a better choice for to a stable performance in the field.

Step 3: Calculate Battery Capacity

The battery bank stores a charge for nighttime use and power failures. The size of the system is a function of the daily load, hours of backup required and the permissible depth of discharge (DoD).

Battery Sizing Equation

Battery capacity (Wh) = Energy per day × Backup in days / DoD

Assume:

• Energy consumption per day: 1,740 Wh
• Backup: 1 day
• DoD:0.8 (for lipo batteries)

1,740 × 1/0.8 = 2,175 Wh

For a 24 V system:

2175 Wh / 24 V = 90.625 Ah 2,175 Wh ÷ 24 V ≈ 90.6 Ah

Recommended battery size: 24 V 100 Ah lithium battery

Battery size parameters

• Since lead-acid batteries have a smaller DoD, they must have more capacity
• Battery life is diminished in cold weather
• Consider future load growth.

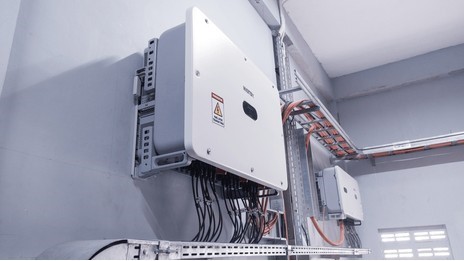

Step 4: Choose the Right Solar Inverter

The solar inverter should be rated for maximum load calculation and not for total daily energy.

Sizing rule for inverter

Inverter capacity = Peak load or continuous load × Correction factor (1.2–1.3)

Peak load is: If peak load is:

• Fridge: 150 W
• Lights: 50 W
• Laptop: 60 W

Peak load ≈ 260 W

260 × 1.25 ≈ 325 W

Inverter Rating: 400-500 W ( Suggested inverter rating can be used for estimate purpose)

Why inverter sizing matters

• Too small: overload shutdowns
• Too large: reduced efficiency at low loads
• Must support surge power from appliances

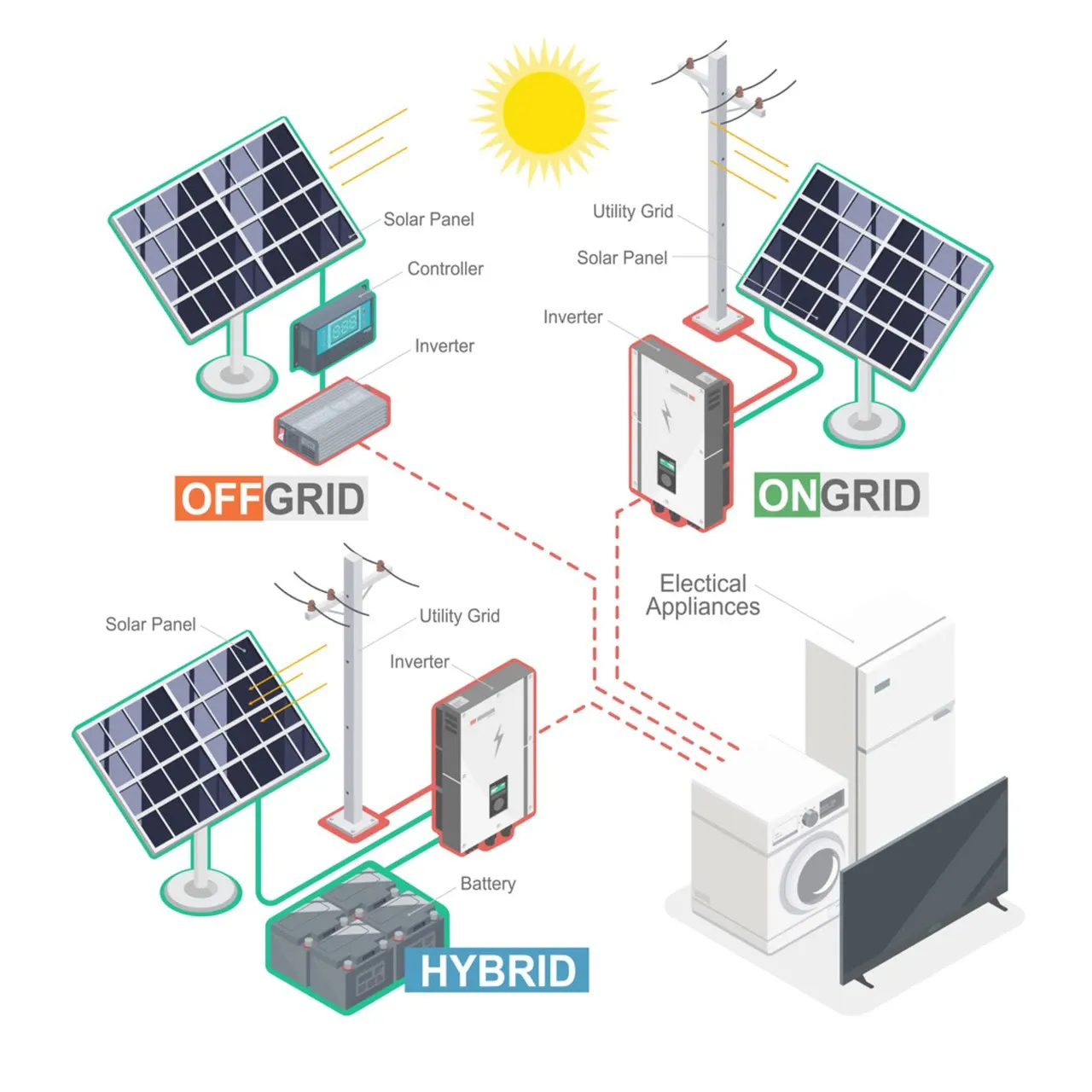

Matching Panels, Batteries, and Inverter

A balanced system provides for safe, efficient energy transfer.

Sample system layout

• Panels solaires : 800 W
• Batterie : 24 V 100 Ah lithium
• Solar inverter: 500 watts pure sine wave

This setup runs daily loads with a margin of safety

System compatibility checklist

• Voltage compatibility between panels, battery and inverter
• Charge controller size
• Expandable system capability

Common Sizing Mistakes to Avoid

• Oversizing the inverter: Large inverters consume more standby power and operate inefficiently at low loads.
• Undersizing the battery: Insufficient storage leads to deep discharges and short battery lifespan.
• Ignoring system losses: Losses occur in wiring, conversion, temperature, and dust accumulation.

Real-World Design Guidance

The U.S. Department of Energy’s publication Solar Photovoltaic System Design Basics explains that proper component sizing ensures system reliability, safety, and optimal energy production, especially when balancing load demand with inverter capacity and storage requirements.

This principle just reinforces that the solar panels, batteries, and the solar inverter should be considered as one system and not separate devices.

Final Thoughts: Building a Reliable Solar Power System

Correct calculations are what define a solar system you can rely on. Begin with a realistic daily energy consumption, and then size your solar panels to meet that demand plus a buffer; select a battery that meets your needs for backup without too much discharge, and choose a solar inverter that can handle load peaks gracefully.

For the typical homeowner and small off-grid system, the best capacity is a balanced approach, not the maximum. The most logical follow-up is to take a look at how much energy you’re really using and then compare that with how much local sunshine can provide on average so you don’t end up designing a system based on guesswork.
