Safety Protection:Employing galvanized sheet metal process, which enhances anti-oxidation and corrosion resistance by 2-3 times.
Efficient Operation:Equipped with standard 1000V modules supporting 800V charging platforms, and standard AC contactors with low power consumption.
Precise Control: Features a pluggable control module. The integrated design ensures more stable operation and high reliability of the charging pile.
Network Connectivity: Highly compatible, integrating Ethernet and 4G communication. Supports multiple platforms and is compatible with modules from various brands.
Operational Services:Drives profitability through multi-platform traffic guidance powered by technology. Provides 24/7 customer service technical support and operational guidance.
Product Parameters

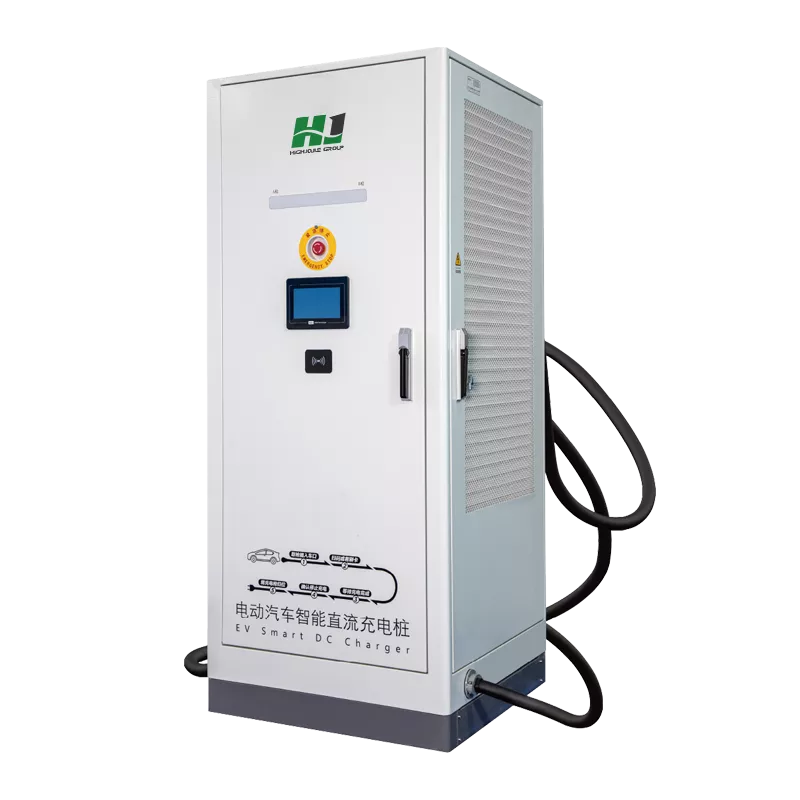

| Appearance structure | Product Model | HJ-EVZ-DC120-F-2（Z-7） | HJ-EVZ-DC160-F-2（Z-8） | |
| Weight | 217kg | 235kg | ||
| Shell Material | Sheet metal | |||
| Installation | Floor-standing | |||
| Dimensions | L700*W565*H1650mm | |||
| Length of the charigng gun | 2 guns / Standard 5m (customizable) | |||
| Wiring method | Bottom in and bottom out | |||
| Electrical specifications | Input voltage | AC260-485V | ||
| Input frequency | 46-63Hz | |||
| Output voltage | High-voltage mode (200–1000) Vdc, Low-voltage mode (150–500) Vdc |
|||
| Measurement accuracy | Class 1 | |||
| Maximum output current | Single gun 250A | |||
| Output power | 120kW | 160kW | ||
| Output current | 250A | |||
| Efficiency | ≥95% | |||
| Power Factor (PF) | ≥0.98 | |||
| Environmental indicators | Applicable Scene | indoor/outdoor | ||
| Operating Tenperature | 20℃~+55℃,5%~95%(Non-condensing) | |||
| Altitude | ≤2000m | |||
| Cooling Patterns | Intelligent air cooling | |||
| Storage Environment | 30℃~+70℃,5%~95%(Non-condensing) | |||
| Ingress Protection | IP54 | |||
| Safety design | Overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, anti-theft design, lightning protection/smart electricity meter/(optional) | |||
| Functional design | 4G communication, mobile payment, back-end monitoring, voice announcement, QR code charging, card swipe charging, LED indication, LCD display | |||
