Highly Integrated: The system is productized, integrating energy storage batteries, PCS, distribution, temperature control, fire protection, water immersion sensors, door magnets, and monitoring communication, offering full control over system operation status and risks.
Excellent Protection: Patented outdoor cabinet protection design, optimized heat dissipation channels, and protection against sand, dust, and rain. The front and rear doors allow for easy maintenance and enable compact arrangement of multiple systems on-site, reducing the footprint.
Space-Saving: Featuring an integrated embedded air conditioning unit in the door, it does not occupy cabinet space, maximizing the available space inside the cabinet. The top structure is more robust, with superior waterproofing capabilities.
Flexible Parallel Operation: With patented virtual synchronous machine functionality, it enables multiple units to be freely connected in parallel over long distances without communication lines, with seamless grid and off-grid switching.
Diverse Functions: The standardized structural design and menu-based configuration allow for flexible customization, such as selecting photovoltaic charging modules, grid-off switching modules, and industrial frequency transformers for microgrid scenarios, integrating the photovoltaic and energy storage system into one cabinet.
Intelligent Management: The local control screen allows for system monitoring, energy management strategy formulation, remote device upgrades, and other versatile functions.
Product Parameters

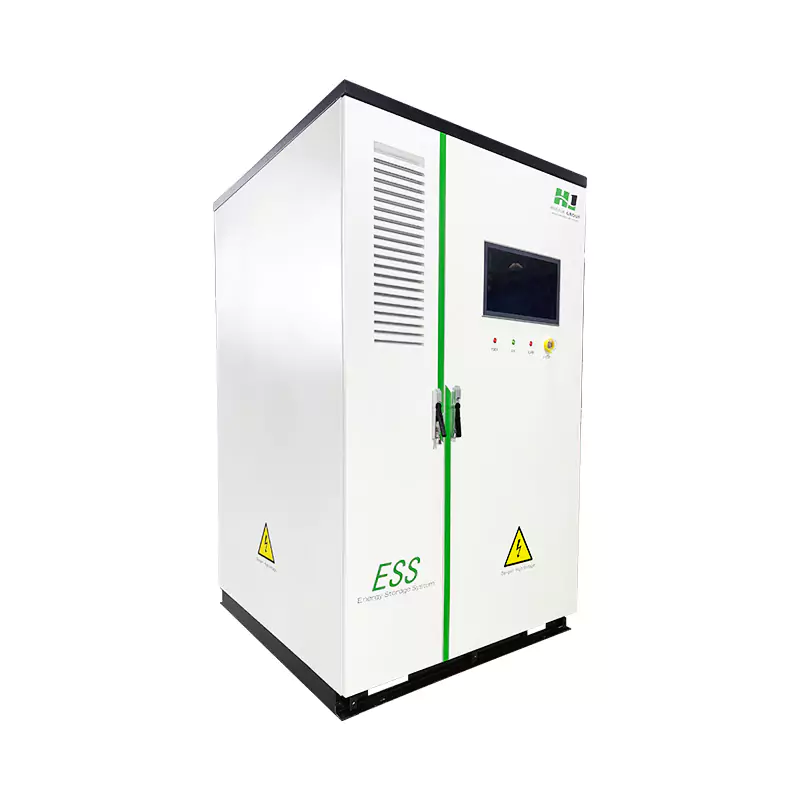

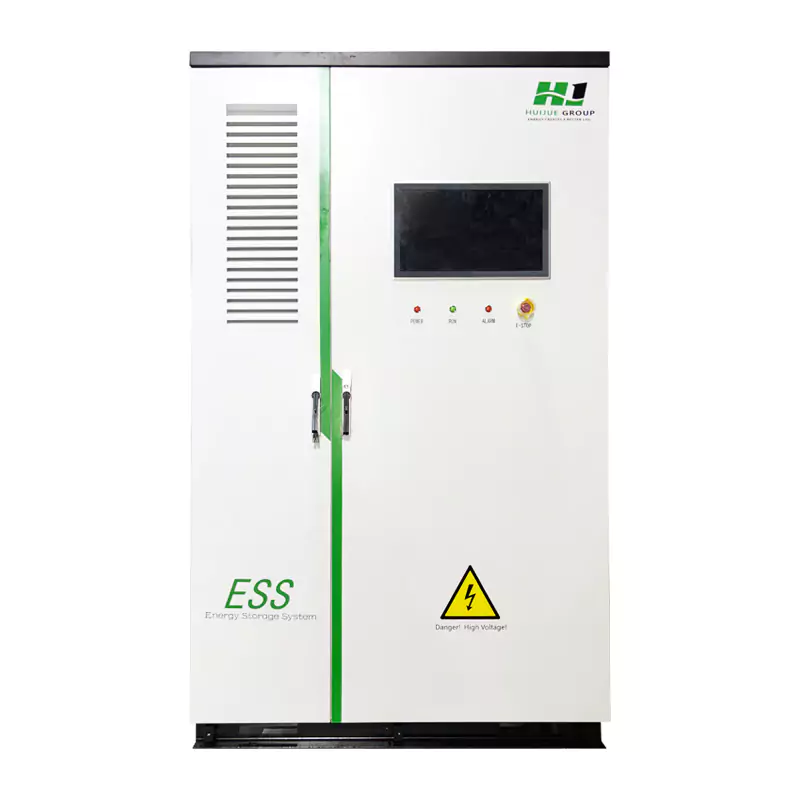

| Product Model:HJ-G215-418L/HJB-G215-418L (215KW/418KWh) | |||
| DC Parameters | AC Parameters | ||
| Battery Type | Lithium Iron Phosphate / Semi-Solid | Rated AC Power | 215KW |
| Cell Capacity | 3.2V/314Ah | Maximum AC Power | 237KW |
| System Battery Configuration | 1P416S | Total Harmonic Distortion (THD) of Cable | <3% at rated power |
| Rated Battery Capacity | 418KWh | Rated AC Voltage | 690V AC |
| Battery Voltage Range | DC1000-1500V | AC Connection Mode | 3P+PE |
| Rated Discharge Rate | 0.5C | Rated Grid Frequency | 50/60Hz |
| Depth of Discharge | 100% | Power Factor Range | 0.98 |
| Battery Cooling Method | Liquid Cooling | Off-Grid Operation | Supported |
| System Parameters | |||
| Dimensions | 1400*1400*2550mm | Temperature Control Method | Liquid Cooling Unit |
| Protection Rating | IP55 | Fire Protection Solution | FM-200 + Water Fire Protection |
| System Communication Protocol | Standard: Modbus | Communication Interfaces | RS485, RJ45 |
