Mini industrial and commercial projects have different site conditions, system designs and safety requirements, which make it difficult to select the energy storage system. A good system design leads to higher energy efficiency, lower operation and maintenance cost, and long term reliability. This white paper covers the critical considerations, solution types, and practical implications that can assist buyers in making the best decision.

Types of Energy Storage Systems

The types of energy storage systems (ESS) can be grouped depending on the style of installation or the service application. The primary relevant types for commercial and small industrial (C&I) applications are:

• Outdoor Cabinet Energy Storage Systems:These systems are high compact and are meant for outdoor use with heat dissipation directly to air and rain/ dust proof. They are great for small companies or start-ups.

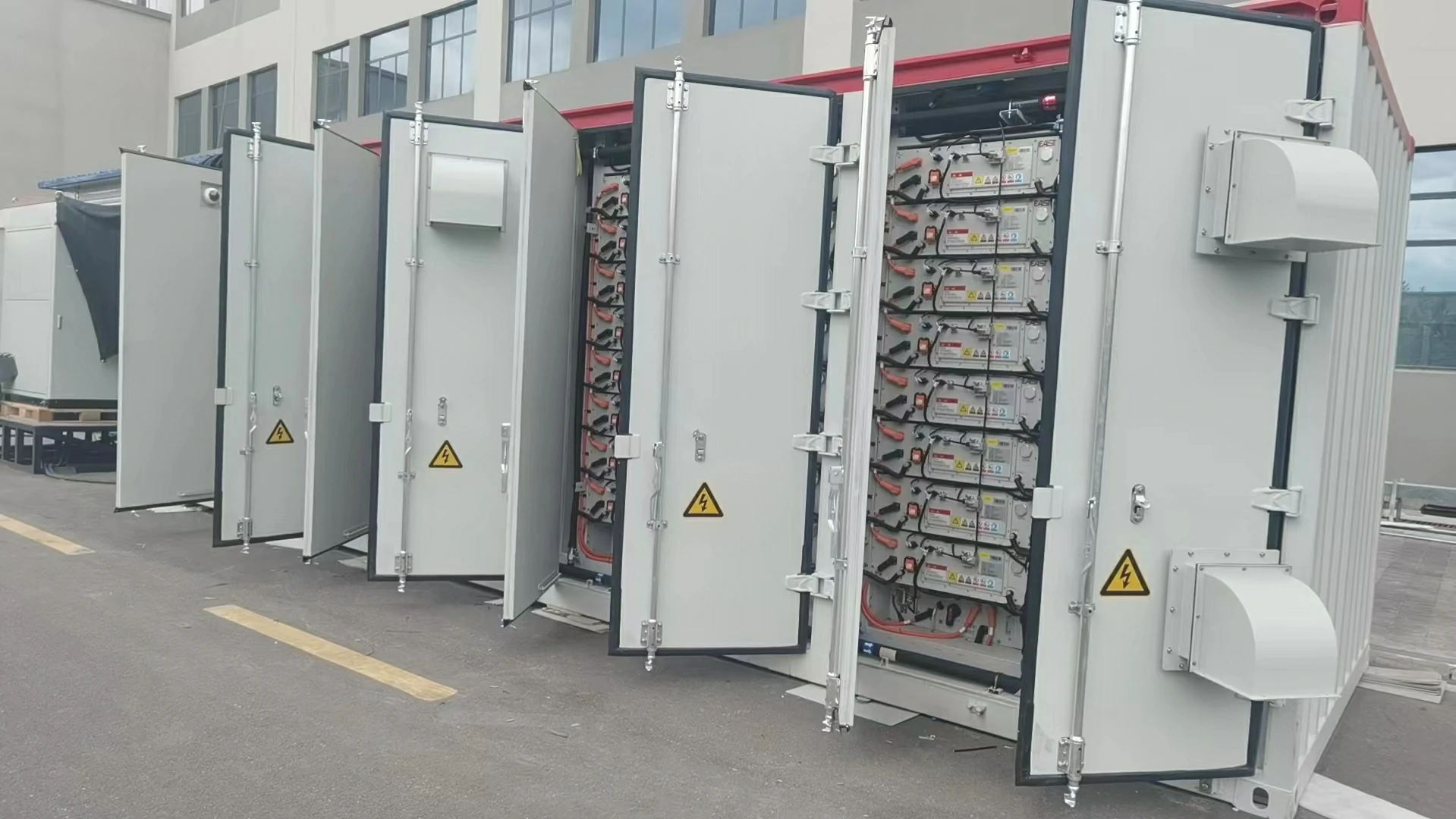

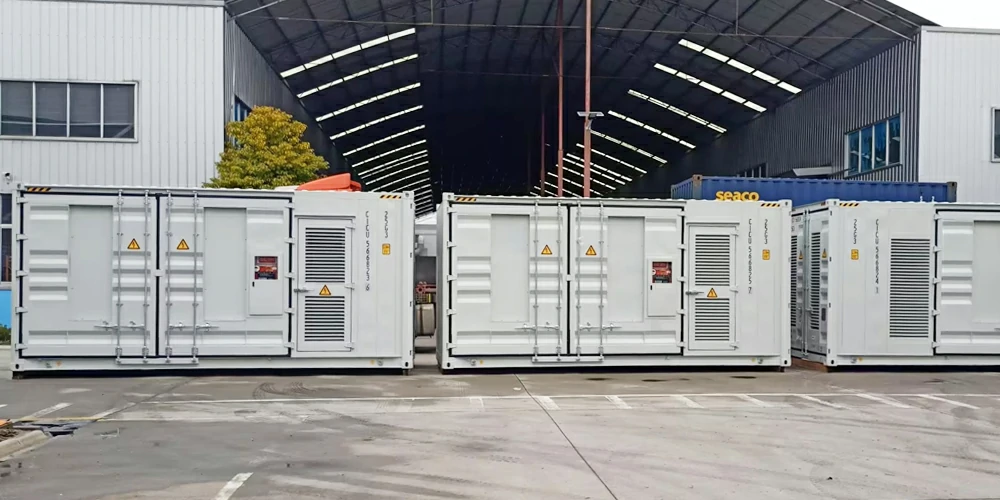

• Containerized Energy Storage Systems:These are large systems in containers with modularity and scalability. They work well in situations where you need more capacity or you know you will be expanding.
• Standard Indoor Systems:Usually smaller and capacity limited installed within existing infrastructure these systems can be more difficult to integrate and may require dedicated climate control.

Knowing these types will help you to determine which size system is needed for your project, as well as, the energy you would like to store.

Key Selection Criteria

When assessing an ESS, take into account the following:

The Size and Power Consumption

You will need your system to be aligned with your energy consumption. High power output may be needed for short-duration peak shaving, while storage capacity may be more important for load shifting or for backup use. A proper load assessment will ensure that the ESS is neither too large nor too small for the operational requirements.

Safety and Compliance

Safety is a critical concern for any ESS. The U.S. Environmental Protection Agency – Battery Energy Storage Systems: Main Considerations for Safe Battery Storage Systems shows that proper ventilation, fire suppression, and monitoring systems are essential for preventing accidents and ensuring regulatory compliance. This guidance is particularly relevant for commercial sites where multiple stakeholders interact with the system.

System Chemistry and Lifecycle

The cost, performance, and life of a battery are all influenced by its chemistry. Hydrogen-bromine flow batteries and vanadium redox flow batteries are also options, but other chemistries like lead-acid may be feasible for the budget, available space and usage pattern. Knowing the rates of degradation and the level of maintenance required allow estimation of the lifecycle costs and the timing of replacement.

Integration and Control

Modern ESS often integrate with building energy management systems (BEMS) or microgrids. Compatibility with existing infrastructure and smart control features can enhance efficiency and provide automated responses to demand fluctuations. The New York State Energy Research and Development Authority – Battery Energy Storage System Guidebook demonstrates practical considerations for integrating storage into commercial and small industrial operations, emphasizing planning and coordination with local utilities.

Environmental and Operational Considerations

System performance is influenced by environmental factors, including temperature extremes and humidity. The outdoor cabinet systems need to be equipped with rugged enclosures and thermal management to protect the system in the outdoor environment. Modular cooling and fire suppression options are available with containerised systems, allowing them to be used in more demanding environments. Proper site preparation and environmental controls help ensure the longevity and reliability of the system.

Maintenance and Monitoring

Routine maintenance and monitoring are vital to achieve proper performance. State of battery health, inverter health and environment need to be continuously monitored. Early recognition of abnormalities eliminate downtime and repair costs.

Case Study: Small Commercial Deployment

A manufacturer of a small size installed a 250 kWh outdoor cabinet ESS to shave peak demand and save energy cost. Based on EPA safety guidelines, the system had fire suppression, thermal sensors and automated alerts. The systems were interfaced with the facility’s BEMS to enable dynamic load management and resulted in a 15 percent energy bill savings in the first year. This is an example of how informed choices and appropriate application can balance/align performance, safety, and financial outcomes.

Cost and Incentives

The evaluation of cost should include consideration of capital expenditure, operating cost and possible incentives. Tax credits, rebates and utility programs may cover a substantial portion of the upfront costs. Life-cycle cost analysis guarantees that you will receive “real” financial benefit during the operational life of the system.

Compliance with Safety Standards

Following standardized safety and compliance measures is essential. The Sandia National Laboratories – Energy Storage System Guide for Compliance with Safety Codes and Standards provides technical guidance for designing, installing, and maintaining ESS in compliance with industry standards. This includes requirements for fire suppression, ventilation, and monitoring systems, particularly relevant for containerized or modular installations.

Implementation Best Practices

• Perform a full energy analysis to determine size and power requirements.
• Select a system type that is compatible with the environmental conditions and space availability.
• Comply with local codes and use accepted practices for safety.
• Connect to building control systems for automated energy use.
• Consider long term expandability, maintenance, and life-cycle costs.

Conclusion

Selecting the right C&I energy storage system requires balancing performance, safety, cost, and operational flexibility. Considering system type, battery chemistry, site conditions, and integration capabilities ensures the ESS meets both current and future energy needs. Facility managers and project planners should prioritize proper planning, safety compliance, and continuous monitoring to maximize system reliability and financial benefits.
