Supports Multiple Operating Modes: Supports both grid-connected and off-grid operation modes;
Good Compatibility: Compatible with photovoltaic systems and can be used in hybrid energy solutions;
High Integration with a Complete System: Integrated with an intelligent energy management system, supporting real-time monitoring and control;
Product Parameters

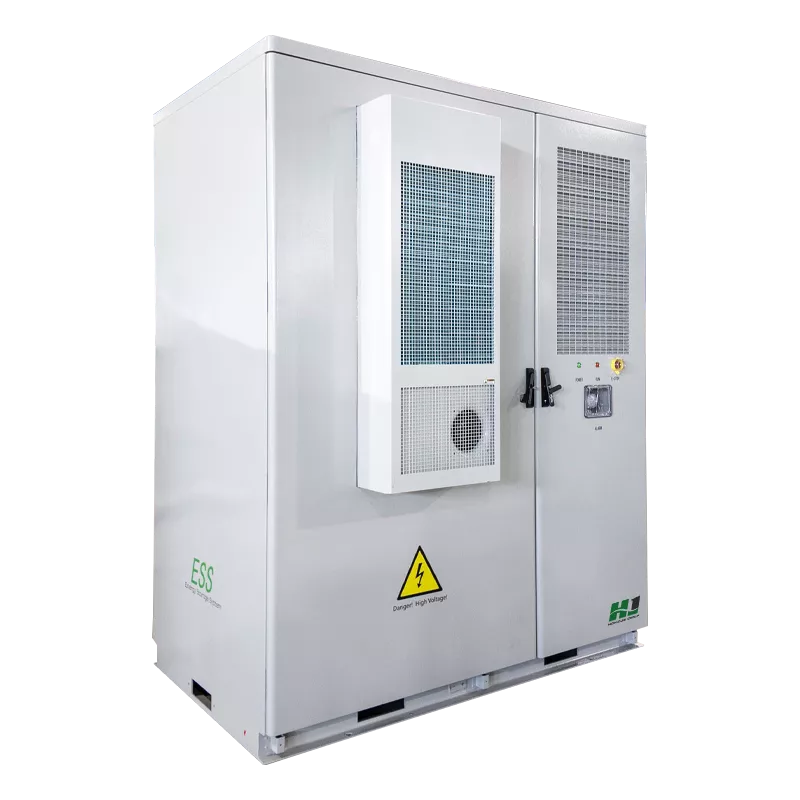

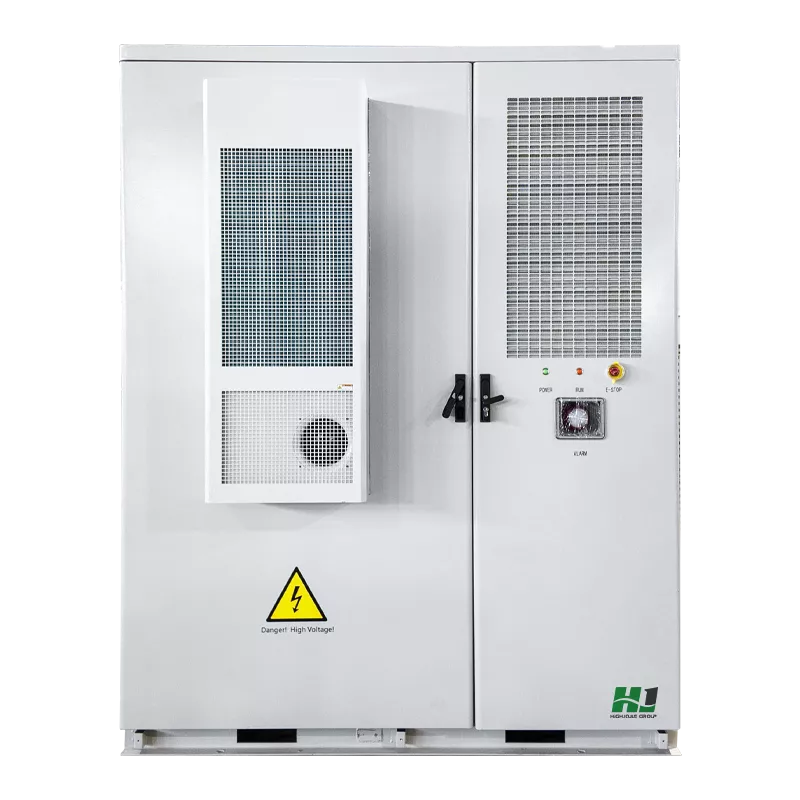

| HJ-G100-215F/HJB-G100-215F (100KW/215KWh) | |||
| DC Parameters | AC Parameters | ||
| Battery Type | Lithium Iron Phosphate / Semi-solid | Rated AC Power | 100KW |
| Cell Capacity | 3.2V/280Ah | Maximum AC Power | 110KW |
| System Battery Configuration | 1P240S | Total Harmonic Distortion (THD) | ≤3% at rated power |
| Battery Rated Capacity | 215KWh | Rated AC Voltage | 380V AC |
| Battery Voltage Range | DC636-876V | AC Connection Mode | 3P+N+PE |
| Charge/Discharge Rate | 0.5C | Rated Grid Frequency | 50/60Hz |
| Depth of Discharge | 80% | Power Factor Range | 0.98 |
| Battery Cooling Method | Air Cooling | Off-grid Operation | Supported |
| System Parameters | |||
| Dimensions | 1600*1280*2200mm (Reference) | Temperature Control Method | Industrial-grade temperature control air conditioning |
| Protection Level | IP55 | Fire Protection Scheme | Aerosol, Perfluorohexane |
| System Communication Protocol | Standard: Modbus | Communication Interface | RS485, RJ45 |
