Efficient: 30 inputs,{>} 150% DC/AC ratio;
Each MPPT maximum current 80A, compatible with 182 and 210 series bifacial modules;
Patented heat transfer technology, continuous output increase of 5% at high temperature;
Safe: IP66, C5-M Anti-Corrosion level;
Intelligent string break, remote release for DC switch，active safety;
Support intelligent AC/DC terminal temperature detection;
Smart:Intelligent string monitoring, smart l-V curve scan;
Each MPPT online insulation fault detection facilitates rapid fault identification;
Low temperature antifreeze,reverse dust removal indoor dehumidification;
Economic:Inverter with 20ms fast reactive power response, can replace SVGt;
Support 400mm’aluminum wire connection, savingAC cable costt;
Support PLC communication,saving communication cables and construction cost;
Product Parameters

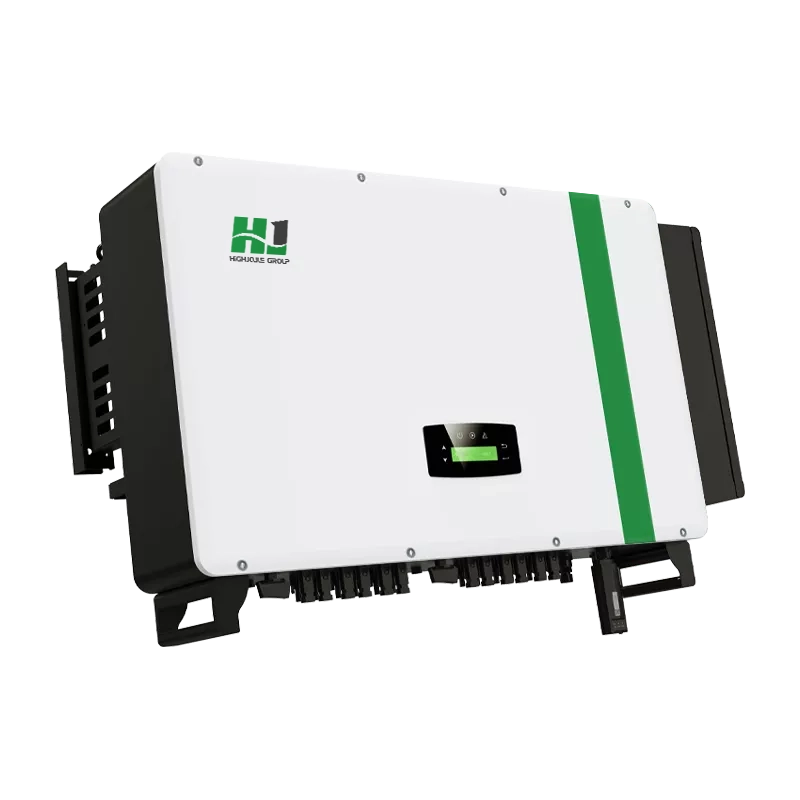

| Production Model | HJ-IG48753T(E-32) |
| PV Input Date | |
| Max, Input Power | 112KW |
| MPPT Operating Voltage Range | 500 – 850V |
| Max.Short Circuit Current | 38 x 6A |
| Number of MPPT Trackers | 6 |
| AC Data | |
| Nominal Power | 75KW |
| Nominal Voltage | 3P+N+PE /3P+PE 230/400 |
| Nominal Frequency | 50/60Hz |
| Max.Current | 120A |
| Power Factor | 1 default (adjustable from 0.8 leading to 0.8 lagging) |
| Protection | |
| Protection | DC Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection Residual Curent Monitoring Unit Insulation Resistance Monitoring Ground Fault Monitoring Grid Monitoring Py String Monitoring Surge Protection |
| General Data | |
| Operating Temperature Range | -25 to 60 |
| Cooling | Intelligent fan cooling |
| Relative Humidity | 0 -100% |
| Display | LCD / LED+APP |
| Communication | RS485 / WiFi / Wire Ethernet / GPRS |
| Installation | wall-mounted |
| Protection Degree | IP66 |
| Dimension (W*D*H) | 983 x 610 x 318mm |
| Weight | 78kg |
| Certification | |
| Production Certification | EN/IEC 61000-6-2, EN/IEC 61000-6-4, EN61000-3-11, EN61000-3-12,IEC 60068, UL1741, EN62109 |
