Suitable for new communication sites without grid power or with unstable grid power, providing a modular, integrated hybrid energy system.

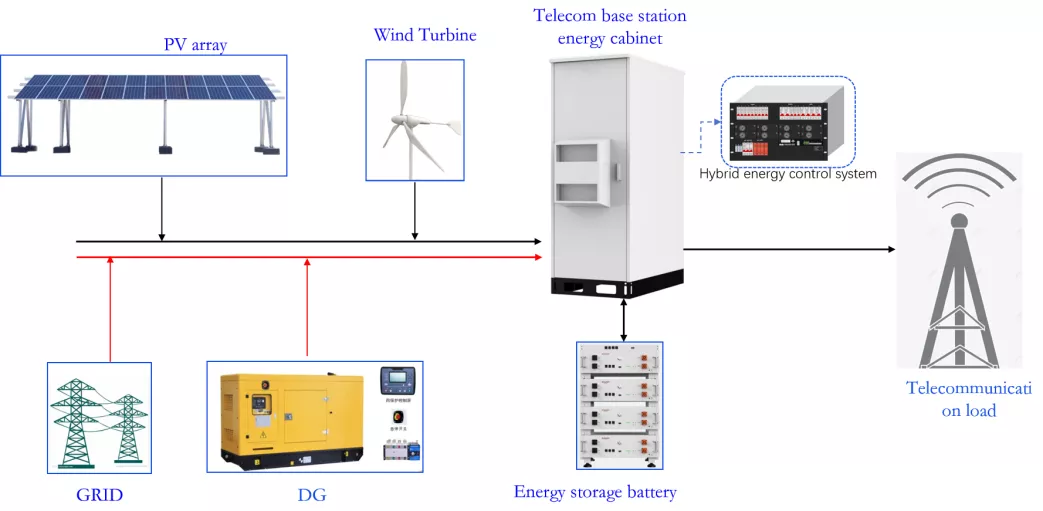

1. System Composition
   • Photovoltaic (PV) Array
   • Wind Turbine (48V Small-Scale Wind Turbine)
   • Energy Storage Lithium Battery System (Smart Lithium Battery/Standard Lithium Battery)
   • Hybrid Energy Control Cabinet (Includes Rectification, PV, Inverter, Power Distribution, Monitoring)
   • Diesel Generator Set (Silent Type, with ATS Automatic Transfer Switch)
   • EMS/FSU Smart Monitoring Platform

2. Core Product Line

（1）Energy Cabinet Series

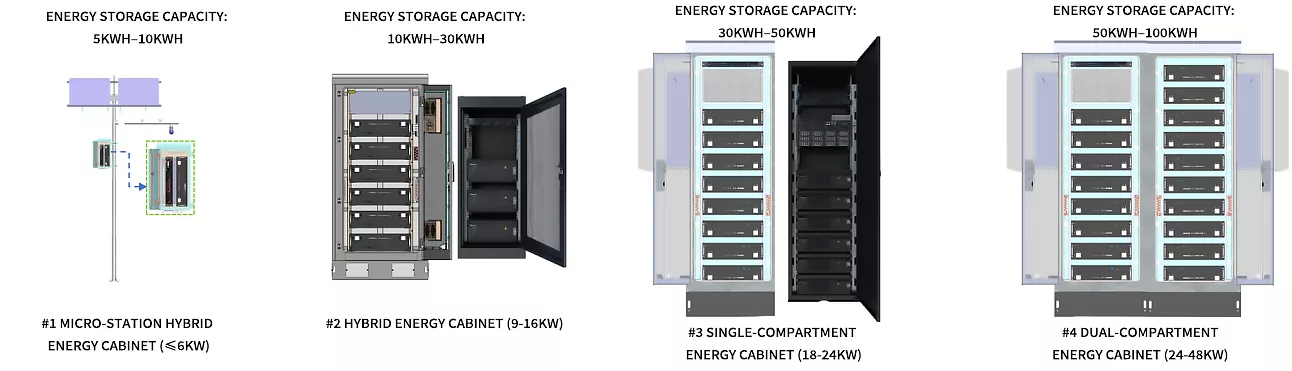

（a）Classified by capacity level (4 categories in total)：

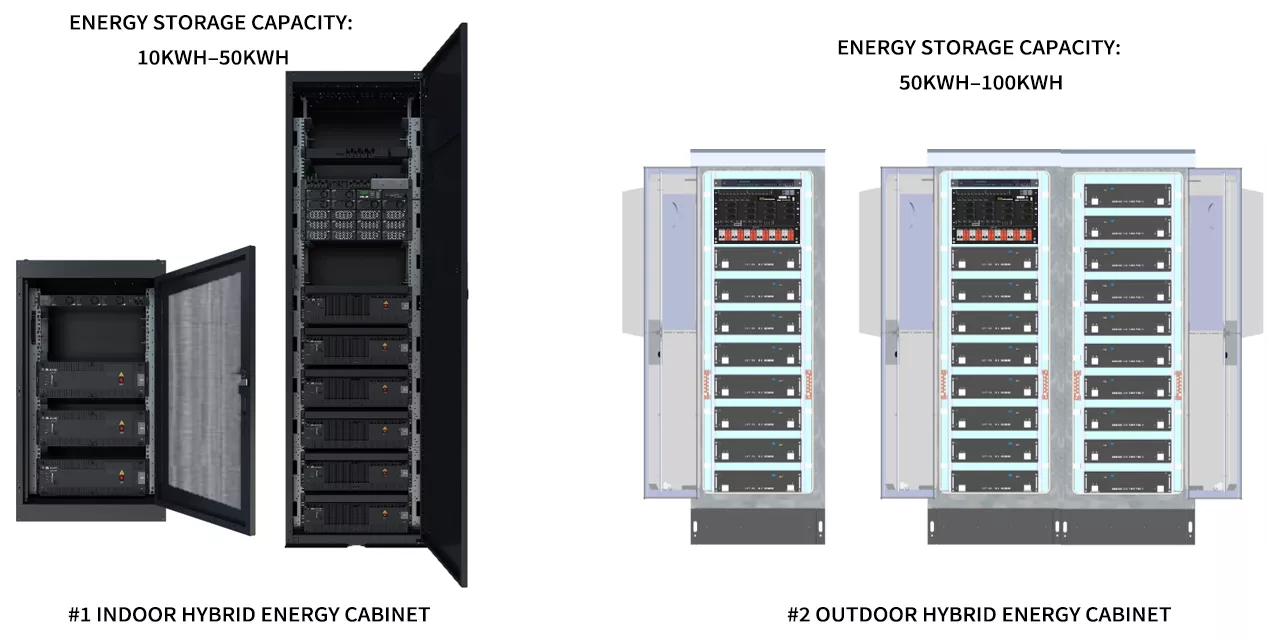

（b）By Installation Environment：

Note: Some models support flexible capacity expansion, such as upgrading a 6kW system to 8kW by replacing the 4kW module.

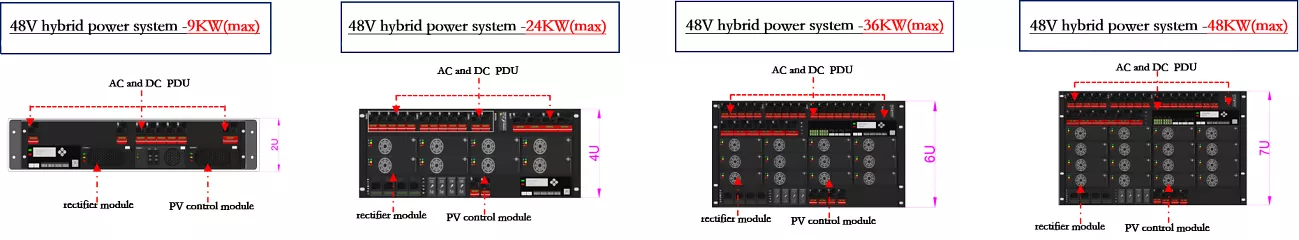

（2）48V Hybrid Power System (DC Output)

• Power ratings: 9kW / 24kW / 36kW / 48kW
• Supports multi-source input: PV, utility grid, diesel generator
• Peak efficiency ≥94% (96% optional)
• Output voltage: 43.2–58V DC (default 53.5V)

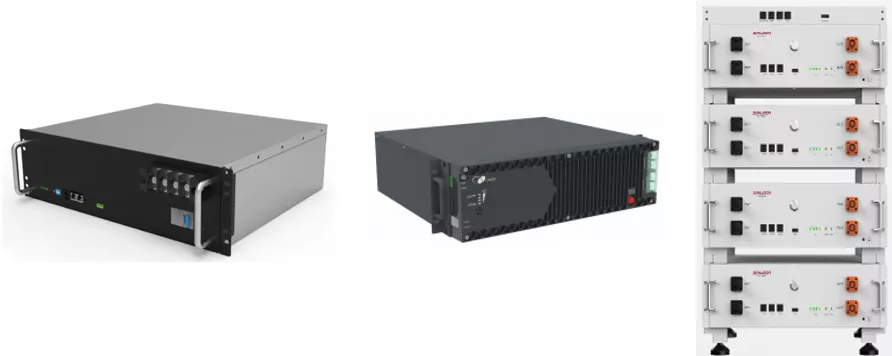

（3）Energy Storage Lithium Battery

• Smart Lithium Battery: Supports constant voltage output, bidirectional DC/DC conversion, integrated BMS, and mixed use of new and old batteries
• Standard Lithium Battery: Modular design, maintenance-free, supports parallel expansion
• Capacity Options: 100Ah, 200Ah, etc., delivering 4.8–10.24kWh per module
• Operating Temperature: Discharge -20°C to +45°C; Charge 0°C to +45°C

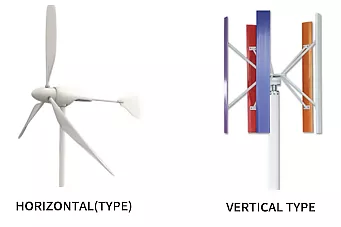

（4）Wind Power Generation Components (48V)

• Power: 600W / 1000W / 2000W
• Available in horizontal-axis and vertical-axis configurations
• Low start-up wind speed as low as 2.5m/s, suitable for wind resource areas such as islands and remote rural regions

（5）Photovoltaic System

• Component Type：

• P-type 500 Series (Hi-MO5, 540–560W, 21.7% efficiency)
• P-type 600 Series (Hi-MO X, 630–650W, 24.1% efficiency, BC technology)
  • Installation methods: Ground-mounted (steel structure/truss/single column), rooftop-mounted (flat roof/color-coated steel sheet)

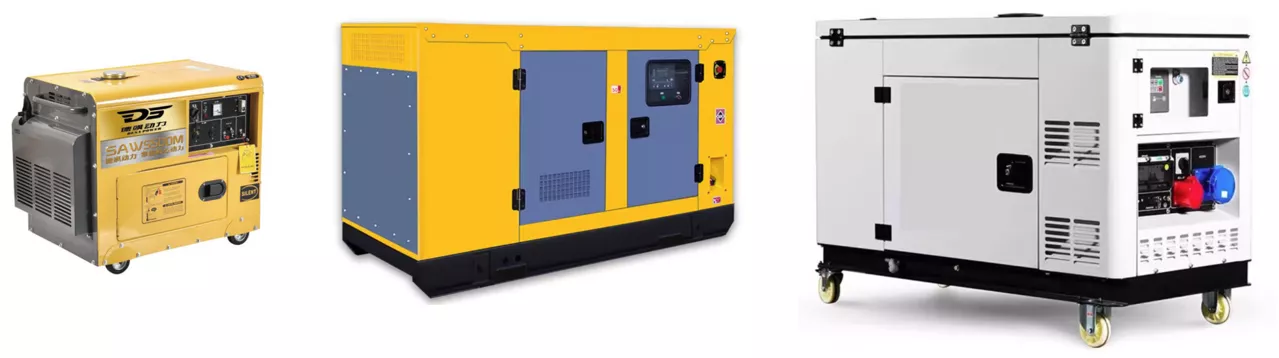

（6）Diesel Generator Set

• Power: 5kW – 30kW
• Quiet design with intelligent monitoring and remote management
• Supports automatic start/stop, ATS switching, and low emissions

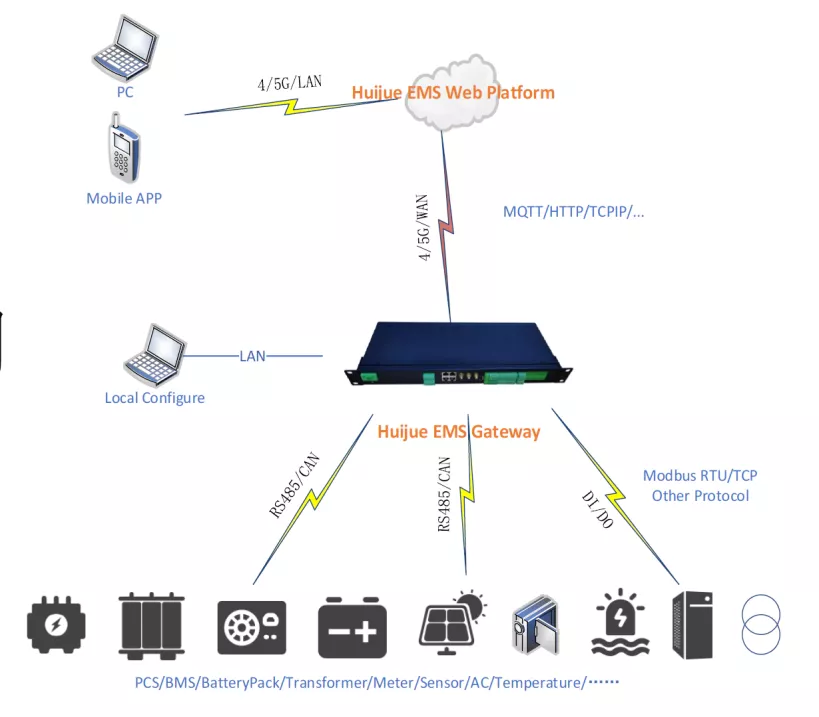

（7）EMS/FSU Monitoring System

• Supports 8 DI channels, 4 DO channels, and 8 RS485 channels
• Connects to smoke detectors, door contacts, water leak sensors, temperature/humidity sensors, and other devices
• Supports MQTT/HTTP/Modbus protocols for integration with cloud platforms

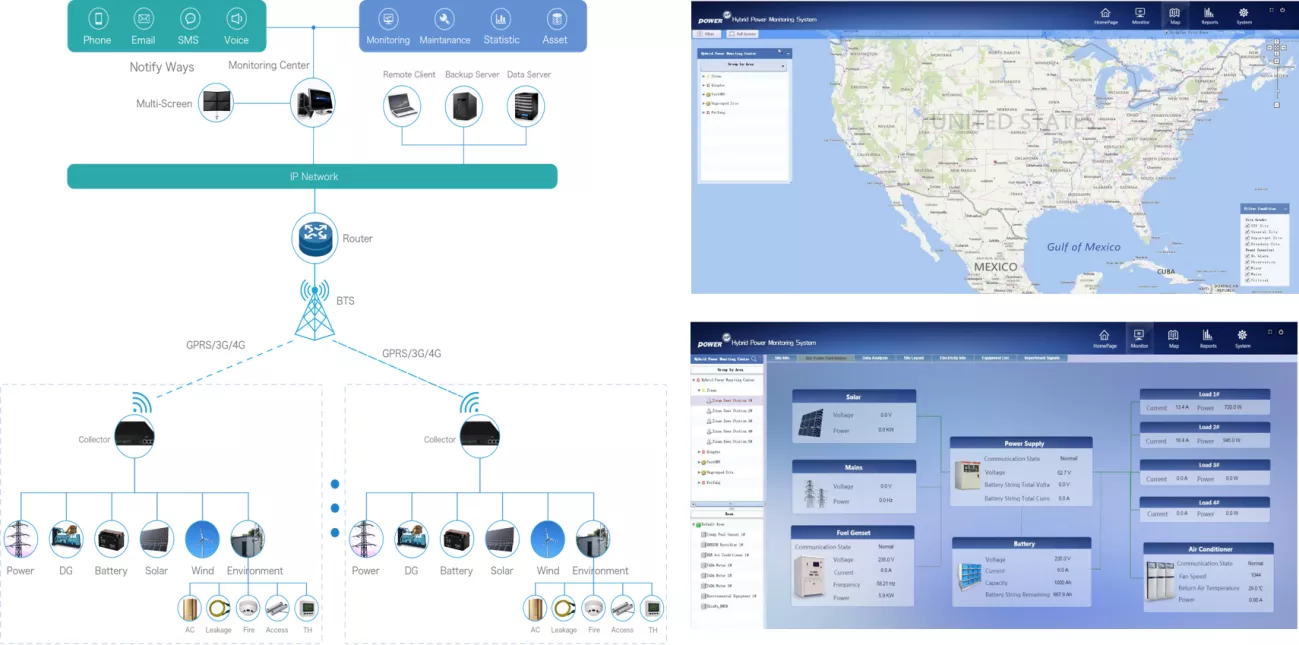

（8）Energy Management Platform (HJ-EMS)

• Enable site-level/network-level visual operations management
• Support load balancing, remote alerts, asset statistics, and multi-screen coordination
• Dual-platform management via mobile app + web interface
