Long Lifespan and High Safety: Uses high-quality, safe, and reliable lithium iron phosphate (LiFePO4) battery cells, ensuring high safety and long lifespan, making it suitable for long-term use;
Integrated Design: An integrated solution that supports the synchronous connection of loads, batteries, grids, diesel generators, and photovoltaic systems;
High-Performance Configuration: Integrates EMS functionality and is equipped with a high-performance processor, providing safe and stable power supply while maximizing the utilization of renewable energy;
Flexible Layout: Can be flexibly installed according to the user's space layout, combining both practicality and aesthetic appeal;
Product Parameters
| Product Model | HJ-H05-O05（B-19） | HJ-H10-O05（B-20） | |
| No. | Item | Specification | Specification |
| Battery Parameters | Battery | LiFeCoPO4 3.2V/100Ah | LiFeCoPO4 3.2V/100Ah |
| Array Mode | 16S1P | 16S2P | |
| Rated Capacity | 51.2V100Ah | 51.2V200Ah | |
| Capacity | 5.12kWh | 10.24kWh | |
| Operating Voltage | 40-58.4V | 40-58.4V | |
| Standard Charging Current | 100A | 100A | |
| Communication Ports | RS485/CAN/232 | RS485/CAN/232 | |
| Photovoltaic Parameters | PV Input Power | 5500W | 5500W |
| PV Input Voltage Range | 120~500V | 120~500V | |
| Maximum Power Point Tracker Count | 1 | 1 | |
| AC Parameters | Rated AC Input Voltage | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) |
| AC Input Voltage Range | 90~280VAC±3V(APL); 170~280VAC±3V(UPS) | 90~280VAC±3V(APL); 170~280VAC±3V(UPS) | |
| AC Input Frequency | 50HZ/60HZ (Adaptive) | 50HZ/60HZ (Adaptive) | |
| Rated Output Power | 5000W | 5000W | |
| Rated Output Voltage | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) | |
| Waveform | Sine Wave | Pure Sine Wave | |
| Transfer Time (Adjustable) | Computer (UPS Mode) 10ms, Household Equipment (APL Mode) 20ms | Computer (UPS Mode) 10ms, Household Equipment (APL Mode) 20ms | |
| Peak Power | 10000VA | 10000VA | |
| Overload Capacity | Battery Model: 21s@105%~150% load, 11s@150%~200% load, 400ms@>200% load | Battery Model: 21s@105%~150% load, 11s@150%~200% load, 400ms@>200% load | |
| Maximum Efficiency | >98% | >98% | |
| System Parameters | Net Weight | 58Kg | 100Kg |
| Packing Weight | 85Kg | 130Kg | |
| Net Dimensions (H×W×D) | 850*480*160(mm) | 1100*540*160(mm) | |

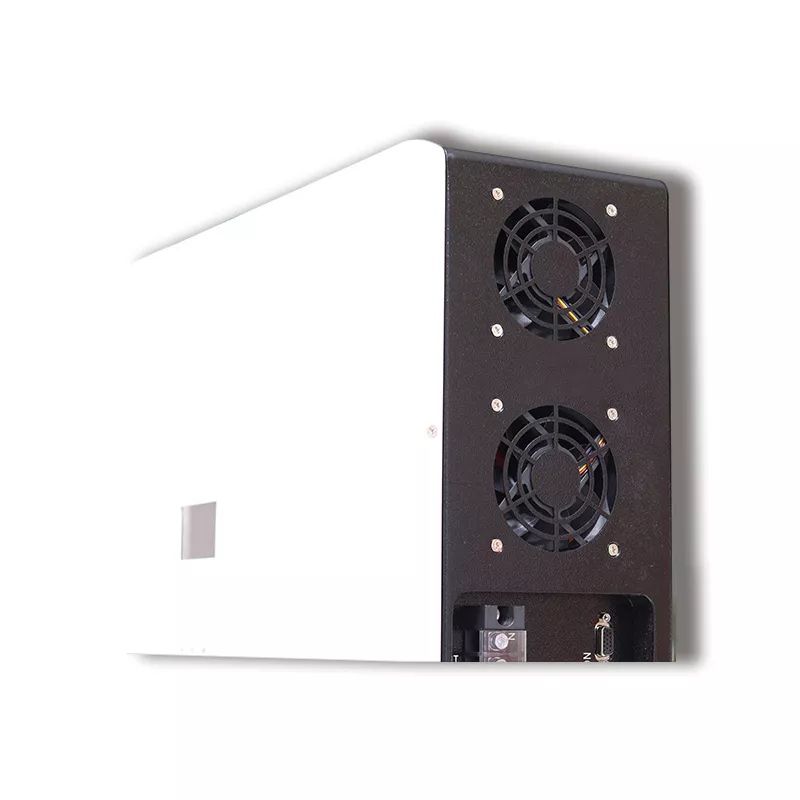

| Cooling Method | Forced Air Cooling | Forced Air Cooling | |
| Operating Environment | Charging Temperature: 0℃~55℃ / Discharge Temperature: -20℃~60℃ / Storage Temperature: -10℃~45℃ | Charging Temperature: 0℃~55℃ / Discharge Temperature: -20℃~60℃ / Storage Temperature: -10℃~45℃ | |
| Operating Humidity | Relative Humidity: 5%~95% | Relative Humidity: 5%~95% | |
| Installation Type | Wall-mounted | Wall-mounted | |
| Communication Mode | RS485/WIFI/4G | RS485/WIFI/4G | |
| Certifications | IEC62619, UN38.3, MSDS | IEC62619, UN38.3, MSDS | |
