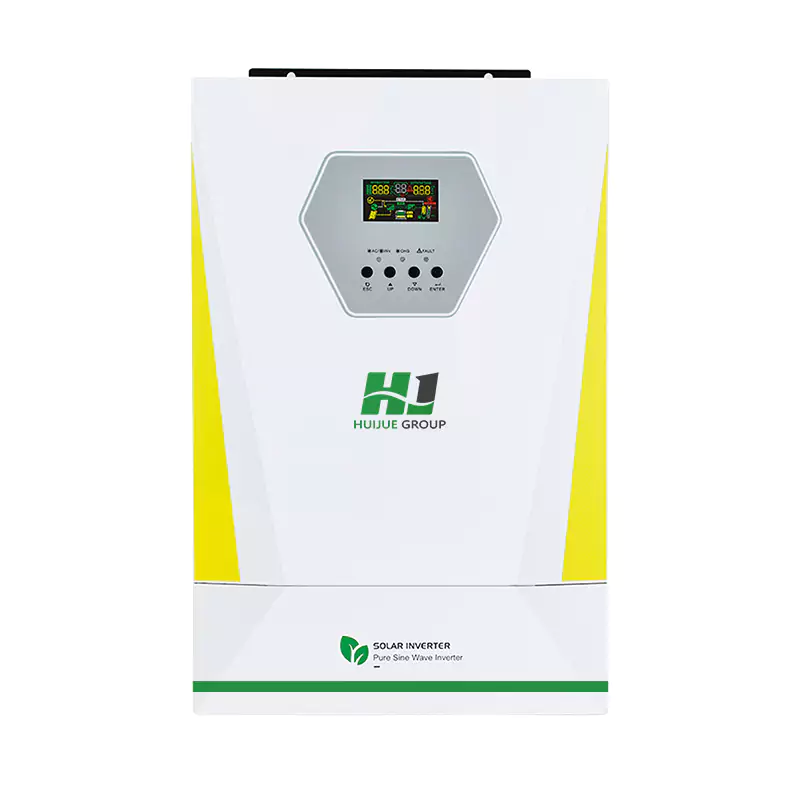

3kW-6.2kW Single-Phase Off-Grid Inverter

This series of high-frequency inverters features a lightweight design, with a full-load output power factor of PF=1 and a high 500V photovoltaic input, enabling higher efficiency and stronger performance.

Product Features

High-Frequency Inverter, Lightweight Design, Higher Efficiency
Output Power Factor PF=1
Supports Lithium Battery Activation, Compatible with AC and Solar Modes
Parallel Expansion Capability
Higher Solar Charging Efficiency and Battery Protection Features
Pure Sine Wave Output, Suitable for Different Loads
500V High Voltage Photovoltaic Input
Optional Wi-Fi Function
Supports Operation with or without Batteries

Product Parameters

Product Model		HJ-HIO4863S (H-16)	HJ-HIO4863S-P (H-17)	HJ-HIO4863S-L (H-22)	HJ-HIO4833S-L (H-20)
Input	Rated Voltage	208/220/230/240VAC	208/220/230/240VAC	220/230/240VAC	220/230/240VAC
	Voltage Range	154-264VAC±3V (Normal Mode) 185-264VAC±3V (UPS Mode)	154-264VAC±3V (Normal Mode) 185-264VAC±3V (UPS Mode)	90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode)	90-280VAC±3V (Normal Mode) 170-280VAC±3V (UPS Mode)
	Frequency Range	50Hz/60Hz (Auto-adaptive)	50Hz/60Hz (Auto-adaptive)	50Hz/60Hz (Auto-adaptive)	50Hz/60Hz (Auto-adaptive)
Output	Rated Power	6200W	6200W	6200W	3000W
	Output Voltage (AC)	208/220/230/240VAC±5%	208/220/230/240VAC±5%	220/230/240VAC±5%	220/230/240VAC±5%
	Grid/Off-Grid	Yes	Yes	Yes	Yes
	Output Frequency	50/60Hz±0.1%	50/60Hz±0.1%	50/60Hz±0.1%	50/60Hz±0.1%
	Dual Output	Optional
	Waveform	Sine Wave	Sine Wave	Sine Wave	Sine Wave
	Transfer Time (Optional)	Computer Equipment: 10ms, Household Appliances: 20ms	Computer Equipment: 10ms, Household Appliances: 20ms	Computer Equipment: 10ms, Household Appliances: 20ms	Computer Equipment: 10ms, Household Appliances: 20ms
	Peak Power	12400VA	12400VA	12400VA	6000VA
	Overload	Battery Mode: 1min@102%~110% Load, 10s@110%~130% Load, 3s@130%~150% Load, 200ms@>150% Load	Battery Mode: 1min@102%~110% Load, 10s@110%~130% Load, 3s@130%~150% Load, 200ms@>150% Load	Battery Mode: 11s@105%~150% Load, 2s@150%~200% Load, 400ms@>200% Load	Battery Mode: 11s@105%~150% Load, 2s@150%~200% Load, 400ms@>200% Load
Battery	Rated Voltage	48VDC	48VDC	48VDC	24VDC
	Constant Voltage Charging Voltage (Optional)	56.4VDC	56.4VDC	56.4VDC	28.2VDC
	Float Charging Voltage (Optional)	54VDC	54VDC	54VDC	27VDC
Charger	PV Charging Method	MPPT	MPPT	MPPT	MPPT
	Max PV Input Power	6200W	6200W	7500W	3000W
	MPPT Tracking Range	90~500VDC	90~500VDC	60~500VDC	40~500VDC
	Max PV Input Voltage	500VDC	500VDC	500VDC	500VDC
	Max PV Input Current	100A	100A	120A	100A
	Max AC Charging Current	80A	80A	100A	60A
	Max Charging Current	100A	100A	120A	100A
Display	LCD Display	Operation Mode / Load / Input / Output, etc.	Operation Mode / Load / Input / Output, etc.	Operation Mode / Load / Input / Output, etc.	Operation Mode / Load / Input / Output, etc.
Communication Ports	RS232	5PIN/Pitch2.0mm, Baud Rate 2400	5PIN/Pitch2.0mm, Baud Rate 2400	Baud Rate 2400	Baud Rate 2400
	Expansion and Configuration Ports	2×5PIN/Pitch2.54mm, Lithium Battery BMS Communication Card, Wi-Fi Card, Dry Contact Card, etc.	2×5PIN/Pitch2.54mm, Lithium Battery BMS Communication Card, Wi-Fi Card, Dry Contact Card, etc.	Lithium Battery BMS Communication Card, Wi-Fi Card, Dry Contact Card, etc.	Lithium Battery BMS Communication Card, Wi-Fi Card, Dry Contact Card, etc.
Environmental Parameters	Operating Temperature	-10~60℃	-10~60℃	-10℃~+50℃	-10℃~+50℃
	Operating Humidity	20%~95% (Non-condensing)	20%~95% (Non-condensing)	20%~95% (Non-condensing)	20%~95% (Non-condensing)
