This project is located in Sudan and addresses the local issue of insufficient grid power supply by adopting an integrated “photovoltaic + energy storage” solution, providing stable and clean electricity support to customers. The overall system includes a 215KWh energy storage cabinet project (2+1 sets in parallel) and a 50KWh energy storage cabinet project (1 set), primarily operating in off-grid mode, with a reserved expansion function for grid connection.
Project Details
Application Scenarios
Off-grid Power Supply: Photovoltaic system prioritizes meeting the load, with excess energy stored in batteries. During nighttime or cloudy days, the energy storage system continues to supply power.
Grid Expansion (Reserved): When connected to the grid in the future, the system will support grid-connected operation, balancing self-consumption and grid interaction.
Anti-backflow Design (50KWh Project): Ensures that excess energy is not sent to the grid, while retaining the interface for selling electricity.
Installed Capacity
215KWh Project:
Configuration 1: 2 units of 100KW/215KWh energy storage cabinets + 5 units of 125KW photovoltaic inverters (reserved for expansion).
Configuration 2: 1 unit of 100KW/215KWh energy storage cabinet + 3 units of 125KW photovoltaic inverters (reserved for expansion).
50KWh Project: 1 unit of 50KW/50KWh energy storage cabinet + 1 unit of 50KW photovoltaic inverter + high-voltage box.
Major Equipment

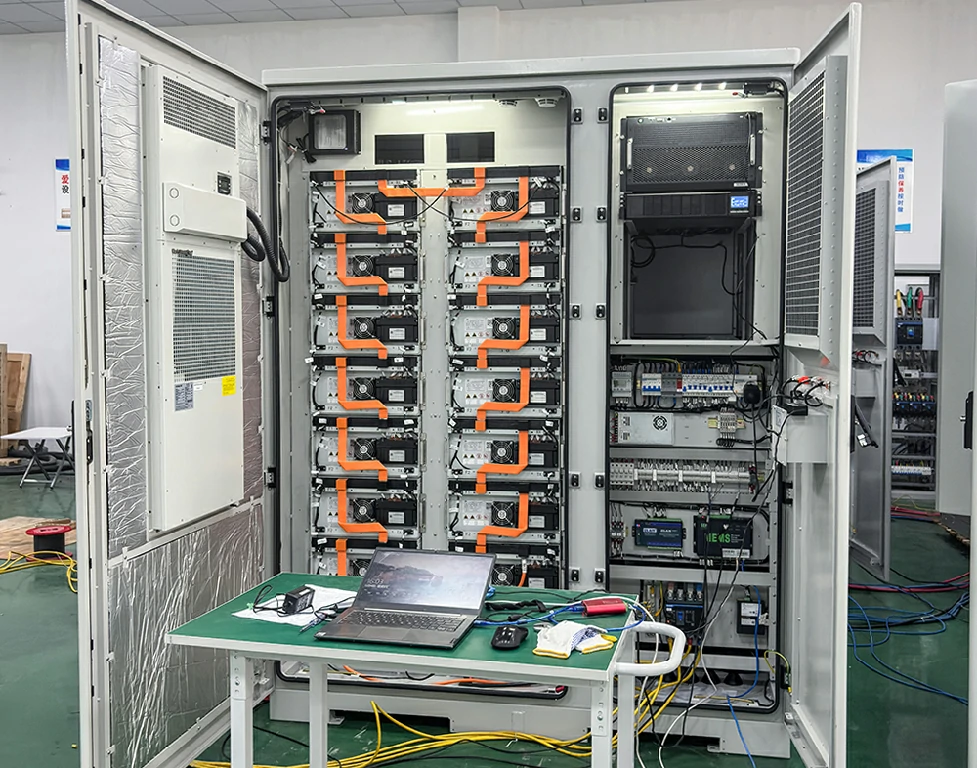

Energy Storage Cabinet: 100KW/215KWh, 50KW/50KWh
Photovoltaic Inverter: 125KW, 50KW
Battery System: 215KWh, 50KWh lithium battery pack
EMS Energy Management System & Anti-backflow Meter
