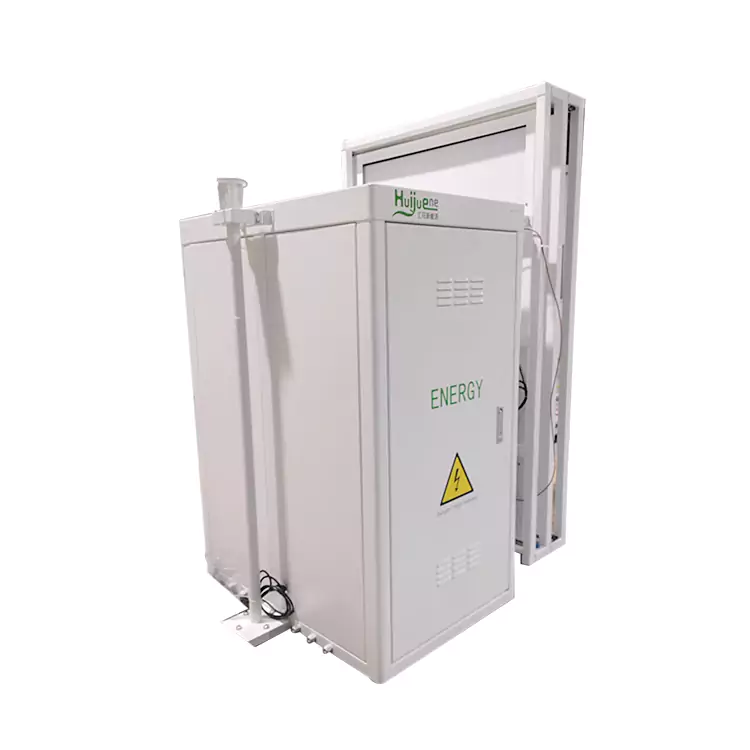

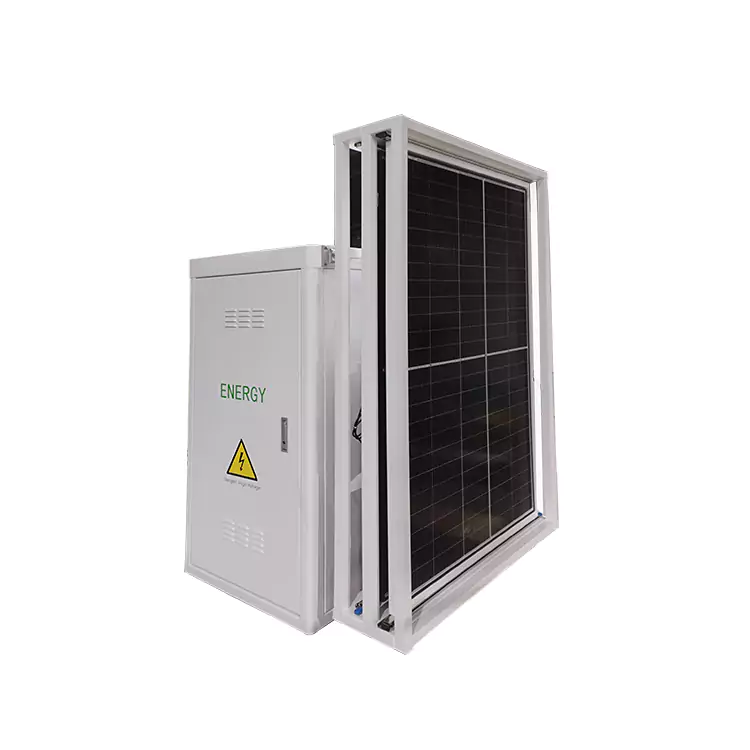

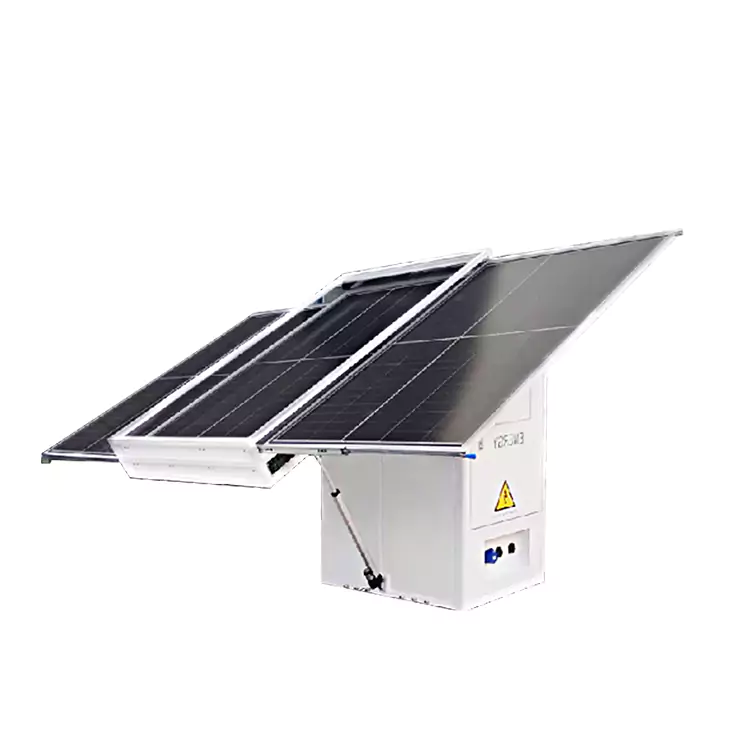

The HuiJue Group HJ-SPW Household Wind-Solar Energy Storage Integrated System converts wind and solar energy into electricity for household appliances, while storing excess energy for use during the night or when there is no grid power. This system can also be connected to an emergency generator for backup.
Product Features
Multiple Mode Integration: Supports multiple energy inputs, effectively adapting to different needs and environments;
Easy to Transport: Designed for easy transportation, ensuring convenience and mobility for all users;
Space-Saving: Compact design minimizes space usage, making it ideal for areas with limited space;
Extremely Long Lifespan: Durability was considered during construction, ensuring an exceptionally long service life;
Contact Us

Product Parameters

Parameter Table Model
Serial Number Project HJ-SPW-C
Parameter
1 Environmental Requirements Operating Temperature -40~+50℃
Relative Humidity 5%~95%, no condensation
Cooling Method Intelligent temperature-controlled fan
2 Basic Parameters Dimensions (H*W*D) 1750mm*1350mm*1250mm
Main Material Aluminum alloy and Q235 steel plate (load-bearing components), surface spray treatment
Application Scenario Off-grid, household (mobile), industrial and commercial, etc.
Protection Level IP54 protection, C4 corrosion resistance
Weight <500KG (excluding equipment)
3 AC Input Input Voltage Single-phase 85V AC~300V AC / 380V three-phase, 45Hz~66Hz
Lightning Protection Level Grade B 60KA
4 Photovoltaic Input Photovoltaic Capacity Maximum 2.75KWp
5 Wind Power Input Wind Turbine + Controller Maximum 600W/48V battery system (optional)
6 Load Output Capacity Inverter output 3KW~10KW, 1ph
7 Energy Storage System Lithium Iron Phosphate Battery Maximum 30KWh
8 Generator Diesel Generator Set Silent type, fully automatic, AC 380V, 8KW~20KW (optional)
9 Monitoring Monitoring System (including APP) With display screen, remote monitoring of internal devices and environmental conditions; optional
