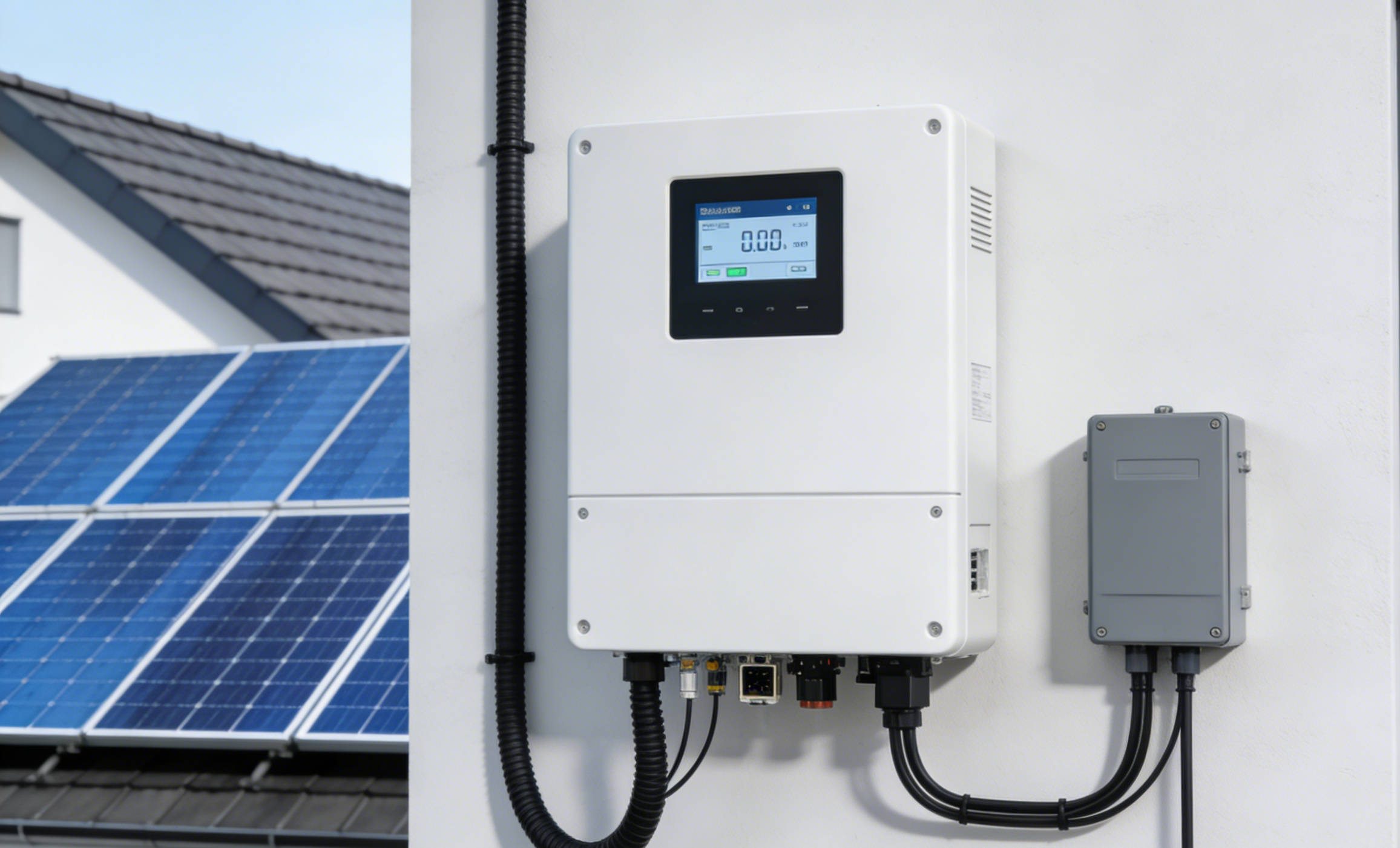

A single phase inverter is an electronic power conversion device that changes direct current into single phase alternating current. Because it performs a fundamental role in residential energy supply and modern renewable energy systems the single phase inverter is widely used in household solar installations uninterruptible power supplies and small scale industrial applications. Understanding how this device operates is essential for anyone evaluating power electronics or planning to install a solar inverter system.

How a single-phase inverter works.

A single phase inverter operates by switching direct current at high frequency through semiconductor devices to produce a controlled alternating output waveform. Although different designs exist the essential working principle remains the same. The inverter must generate an output voltage that alternates its polarity in a consistent repeating pattern so that the load receives usable alternating current.

Power conversion stages

A single phase inverter typically includes several power processing stages. These may be arranged differently depending on whether the inverter is designed for grid tied solar applications off grid systems or standalone industrial use. Common stages include the input filtering stage to stabilize the incoming direct current the switching bridge to produce the alternating waveform and the control stage to manage output quality.

Waveform generation

Most single phase inverters rely on pulse width modulation. In this method very rapid switching events shape the output waveform to closely follow a desired sinusoidal form. When designed correctly the output waveform achieves high power quality low harmonic distortion and stable performance. Pulse width modulation is also used in grid interactive solar inverter systems because it allows precise synchronization with grid voltage.

Control strategies

Accordingly, more sophisticated control strategies will be required to realize stable alternating current output under dynamic load conditions. Recent engineering research indicates that robust control algorithms can enhance response characteristics and reduce harmonic distortion even under fluctuating supply or load environments. Scientific Reports Nature Computationally analyzing inverter operation modeled how modulation techniques, enhanced by computational analysis, might optimize inverter performance.

Main Components of a Single Phase Inverter

Although designs vary, most single-phase inverters use several essential components that determine performance and reliability.

Semiconductor switches

The rapid switching of the current is done by semiconductor switches, like insulated gate bipolar transistors or metal oxide field effect transistors. Speed efficiency and temperature handling capability directly affect the quality of the inverter.

Gate driver circuitry

Gate driver circuits ensure that the main switching devices receive the proper triggering signals. Since switching has to happen with exact timing, the gate driver protects the semiconductor devices while ensuring optimum operation.

Filtering elements

Capacitors and inductors shape the output waveform and reduce unwanted harmonics. Proper filtering improves the quality of power delivered to the load and protects sensitive appliances.

Control unit

A digital signal processor or microcontroller computes the right switching pattern. This unit monitors voltage, current, temperature, and grid conditions when applicable. It also makes sure safety and grid standards are met.

Applications of Single Phase Inverters

Single-phase inverters are used in many situations where alternating current has to be fed from a direct current source.

Home Solar Power Systems

One of the most common uses of a single phase inverter is in residential solar energy systems. Most rooftop photovoltaic installations generate direct current which must be converted into alternating current for household use. The residential grid is typically single phase which makes the single phase inverter an ideal match. Solar inverter manufacturers incorporate advanced protection features to ensure safe power delivery and grid compliance.

Backup power supplies

Uninterruptible power supply systems also depend on single phase inverters. When the grid fails the system instantly converts battery stored direct current into alternating current to keep essential devices running.

Small industrial and commercial systems

Single-phase inverters are employed where the equipment requires stable alternating current in case of poor or unavailable grid quality. Many small workshops, laboratories, and commercial units use single-phase inverters.

Real World Case Studies

Case Study One Residential solar project in California in 2022

In 2022 a residential solar installation in California upgraded its legacy power equipment to a modern single phase solar inverter system. The installation included a rooftop array connected to a high efficiency inverter with advanced modulation control. After integration the household achieved stable alternating current output lower harmonic distortion and improved energy yield especially during variable sunlight conditions. The case demonstrates how proper inverter technology significantly affects renewable energy performance.

Case Study Two Small laboratory power system in Germany in 2023

In the year 2023, an accurate single-phase inverter was implemented in a research laboratory in Munich as part of an experimental power electronics bench. The inverter allowed precise waveform generation for sensitive measurement applications. Using a digitally controlled inverter with superior filtering components, the laboratory reported lower levels of noise and more stable readings during experiments that required very high precision.

Comparison Table for Better Understanding

Advantages of a Single Phase Inverter

A single-phase inverter has several important advantages when applied to residential and small-scale systems.

Ease and cost effectiveness

The design and installation process is usually simpler, which reduces the overall cost. Homeowners and small system operators benefit from accessible technology meeting everyday energy needs.

Reliability within household settings

These inverters are designed to provide reliable performance even when load patterns change. Features such as filtering and control ensure steady output and protect home appliances.

Integration with renewable energy

Single-phase inverters are central to photovoltaic systems. They allow homes to directly utilize the produced power or feed it into the grid where local regulations permit. More recent designs for this type of inverter also boast advanced monitoring features for maximum energy utilization.

Future Trends in Single Phase Inverters

Technological development continues to influence inverter design. New control strategies, materials, and digital simulation tools have been developed that help to raise efficiency and durability. Applied and Computational Engineering ACE Analysis based on computational modeling covers developments in computational modeling for power equipment which can guide future inverter development. Although computational studies may not be directed exclusively to single-phase inverters, very often the understanding obtained gives support to the innovations in switching control, thermal behavior, and optimization of electronic components.

Conclusion

A single phase inverter plays a central role in homes and small scale facilities by converting direct current into usable alternating current. From solar inverter applications to backup power systems the technology enables efficient reliable and safe power delivery. The field continues to evolve with new research on switching control modulation techniques and digital modeling. Understanding these fundamentals helps homeowners engineers and energy planners make informed decisions about selecting and applying inverter technology. If you are interested in learning more about single phase inverter systems you can check our related guides.
