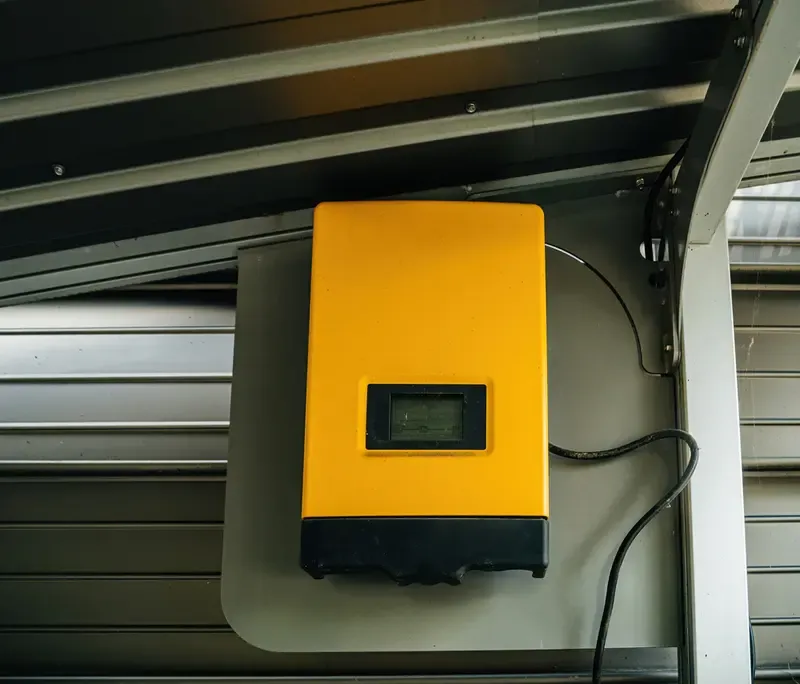

Essentially, the solar inverter is the main component that converts the direct current, or DC, electricity generated by the solar panels to alternating current, or AC, that can be consumed by the home and the grid. In the case of an on-grid solar inverter, the solar panel system is connected to the public grid. There are no batteries needed for the system to function. Instead, the solar panel system is connected to the grid, and the solar inverter sends the extra power outward when the solar panel system produces more power than needed.

While the solar panels are the engine of the photovoltaic system, the solar inverter is the transmission. Without the solar inverter, the solar panels on the roof will not be able to power the appliances at home.

What Does a Solar Inverter Actually Do?

At the most basic level, the solar inverter converts the direct current, or DC, to alternating current, or AC. However, when the solar panel system is connected to the public grid, the solar inverter’s functions go far beyond that.

DC to AC Conversion

The electricity produced by the solar panels is in the form of DC because it uses a semiconductor junction to move the electrons in one direction. However, the majority of household appliances and the grid operate on AC. This is done by rapidly switching electronic components to produce a waveform that corresponds to AC from the incoming DC voltage.

Grid Synchronization and Safety

The importance of synchronizing the inverter in a solar grid tie inverter system cannot be overstated. If the grid supply fails in the event of a blackout, the inverter disconnects itself from the grid. This feature is known as anti-islanding protection. This prevents the inverter from backfeeding electricity into the utility supply lines in the event that it fails.

The U.S. Department of Energy’s publication Solar Photovoltaic System Design Basics explains that grid-connected PV systems rely on inverters to convert DC electricity and interface safely with the utility grid, highlighting the inverter as the control center of system operation.

Power Optimization and Monitoring

Moreover, modern on-grid solar inverters optimize the energy harvest. This is done through maximum power point tracking, whereby the inverter changes conditions to ensure maximum extraction of power from the panels. In addition, some of the devices have monitoring systems that enable users to keep track of the systems in real time.

How an On-Grid Solar Inverter Works in Practice

To understand how an on-grid solar inverter works, it is necessary to look at the flow of electricity during the day.

Daytime Operation

Once the panels receive the sun’s power, the DC power is then directed to the inverter. The AC power is then directed into the building’s electrical panel. When the power generated is more than the power required inside the building, the power is then exported to the utility grid.

Nighttime and Low Production

When the sun is not shining, especially during the night or on a cloudy day, the solar panel does not produce power. In an on-grid setup without a battery bank, the building will then draw power from the utility grid. The transition is seamless because the inverter is always synchronized with the utility grid.

This is done to ensure the system is not complicated and is therefore cost-effective.

On-Grid vs. Off-Grid: What Makes Grid-Tie Different?

The term ‘on grid solar inverter’ is used to describe inverters that are connected to a utility grid. This is a fundamental difference in how they function.

No Battery Dependency

In off-grid inverters, a battery is a must-have, and the inverters are designed to handle this. In grid-tie inverters, the grid is used as a battery. This means that if you are producing more energy than is being used, the energy is exported out. And if more energy is being used than is being produced, then energy is imported in.

Automatic Shutdown During Outages

A common myth is that solar energy will be used to light homes during a blackout. This is not the case. In a normal ‘on grid’ solar inverter, if there is no grid energy, then the inverter will shut off. This is a safety feature that is a requirement in almost all countries.

Cost and Efficiency Advantages

They do not demand battery integration and energy storage management. This makes them cheaper and better in terms of efficiency in pure conversion. This design suits most homes in cities and towns where access to the grid is not a problem.

Why On-Grid Solar Systems Dominate Globally

Grid-connected systems make up the majority of installed solar power systems around the world. This is because of their simplicity.

The study titled Trends in Photovoltaic Applications 2025, published by International Energy Agency, finds that grid-connected photovoltaic systems represent the overwhelming share of global PV deployment, reflecting the scalability and economic advantages of grid integration.

This is also a global phenomenon that supports the position that the solar inverter plays a vital role. This is because, with the increasing capacity of these installations, inverter technology is also improving in terms of efficiency and smart communication features.

Key Components Inside a Solar Grid Tie Inverter

While it is generally considered to be one single unit mounted on a wall or on a structure, the inverter itself has a number of components that are built-in to ensure that the energy produced by the sun is compatible with the utility supply. These components include:

• Power electronic switching devices used to perform the dc-ac inversion process
• Control circuits used to monitor voltage and frequency
• Maximum power point tracking circuits
• Protection circuits used to protect against over-voltage, over-current, and grounding faults
• Communication circuits used to monitor the system and ensure compliance with utility standards

When Is an On-Grid Solar Inverter the Right Choice?

On-grid solar inverters are usually the best choice if the following conditions are met:

• Stable grid supply is available
• Net metering or feed-in tariffs are available
• No need for power backup during grid failure
• Want to save on electricity bills with minimal complexity

However, if the need for a backup power source is a priority, a hybrid solar inverter might be a better choice.

A solar inverter is more than just a converter. It is the functional brain of an on-grid solar energy system. It converts DC to AC, synchronizes with the grid, optimizes energy production, and provides protection. In a solar grid tie inverter, this equipment is used to facilitate the interaction of a solar energy system and the grid.

If you are thinking of a solar energy system, then think about the grid reliability, energy, and cost. For most homes connected to a grid, an on-grid solar inverter is a cost-effective and technically mature solution. Knowing more about this equipment will help you ensure that your solar energy system is aligned with the way electricity works, inside and outside of your home.
