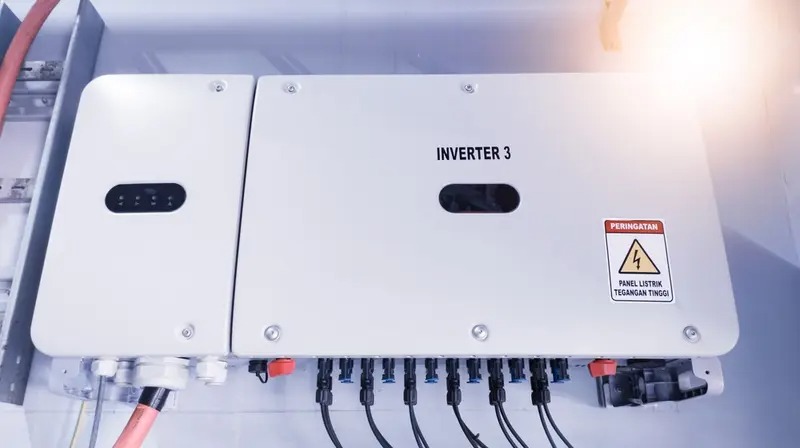

Solar energy systems can generate electricity instantly when sunlight falls on the panels containing photovoltaic cells; however, this energy cannot be used immediately in homes and businesses. This is where the solar inverter plays a crucial role in converting the direct current generated by the solar panels into alternating current, which is required to be used in homes and businesses.

Learning about the solar inverter and its role in a solar energy system can be used to explain why the solar inverter is considered the brain of the solar energy system rather than simply a converter.

What a Solar Inverter Does in a Solar Power System

Solar panels are DC power-producing devices, while AC is the standard current for running appliances, buildings, and electrical grids. The solar inverter is a vital component for enabling solar energy to power appliances.

Apart from conversion, solar inverters also:

• Track system performance
• Optimize energy production
• Provide electrical safety
• Integrate grid operations

Solar panels are unable to power electrical appliances without a solar inverter.

Why DC Must Be Converted to AC

Direct current moves in one direction, whereas alternating current changes direction many times in a second. The reason why power grids around the world operate with AC is that it can be easily transmitted over long distances and transformed to various voltages.

A solar inverter changes DC to AC in order to:

• Power domestic appliances using solar energy
• Excess power can be supplied to the electricity grid
• The stability of the electrical system is maintained

The above process is not an on/off process but needs sophisticated electronic control to generate a stable sine wave.

Core Working Principles of a Solar Inverter

DC to AC Conversion

Essentially, a solar inverter makes use of fast-switching electronic switches that change DC power into a waveform that resembles AC power. The steps that a solar inverter follows to change DC power to AC power include:

• Rapid switching of semiconductor devices (such as transistors)
• Creating a stepped waveform from DC input
• Filtering the waveform to produce smooth AC output

This controlled switching allows the inverter to match the voltage and frequency required by the grid or local electrical system.

Maximum Power Point Tracking (MPPT)

The solar panels are not constant power producers. The voltage and current drawn from the panels change according to the intensity of sunlight, temperature, and shading. Maximum Power Point Tracking guarantees that the maximum possible power is tapped from the solar panels.

The MPPT algorithm continuously changes the operating point of the solar panels to find the optimal combination of voltage and current. This method can result in a substantial increase in the amount of power tapped from the solar panels.

Grid Synchronization

In grid-connected systems, the inverter must synchronize with the grid frequency and phase. If the synchronization is not achieved, the power cannot be exported to the grid.

In the study titled A Review of Single-Phase Grid Connected Inverters for Photovoltaic Modules published by the IEEE, it is evident that the inverters connected in the grid use precise control methods for the stability of the voltage, frequency, and safe injection of power in the grid.

Types of Solar Inverters and How They Work

String Inverters

String inverters have multiple panels connected in series. They convert the DC output to AC output.

Advantages:

• Cost-effective
• Reliability

Limitations:

• Performance is affected when one of the panels is shaded

Microinverters

Microinverters are installed on each panel. Each micro-inverter converts DC to AC output individually.

Advantages:

• Panel optimization
• Ability to work even when one panel is shaded

Limitations:

• Expensive

Hybrid Inverters

Hybrid inverters are those which include solar and battery management. They can store power and provide backup power.

The basic functions are as follows:

• Charging batteries
• Providing power in case of outages
• Managing energy flows between solar, battery, and grid

How Solar Inverters Ensure Safety

In solar inverters, safety is ensured in various ways.

Anti-Islanding Protection

In the event the grid is switched off, the inverter immediately stops the export of energy. This ensures that the power lines, which utility workers may be fixing, are not energized.

Ground Fault Detection

Inverters have the ability to detect electrical leakage, leading to shutdown in the event of unsafe conditions.

Overvoltage and Temperature Protection

Inverters have the ability to monitor the voltage levels and the temperature inside the inverter, thus protecting the components from damage.

Efficiency and Performance Factors

However, not all solar inverters have the same efficiency levels. There are several factors that affect efficiency:

• Conversion efficiency (Generally between 95 and 99 percent)
• MPPT accuracy
• Thermal management
• System design and shading

Any increase in efficiency, no matter how small, can result in substantial benefits in terms of energy production.

Common Misconceptions About Solar Inverters

An inverter only converts electricity

In truth, contemporary inverters are capable of monitoring, optimization, communication, and safety control. They are intelligent energy management systems.

All inverters work the same way

There are different types of inverters, and they employ different architectures and control methods. The system design will dictate which method is most effective.

Bigger is always better

Inverters that are too large can be inefficient, and inverters that are too small can restrict energy production.

Choosing the Right Solar Inverter

In choosing an inverter, the goals of the system, as well as the site, are important.

Consider:

• Shading of the roof
• Presence of battery backup
• Financial constraints
• Grid connections

For instance, homes with shading may use microinverters, while homes with high power requirements may use string inverters for cost-effectiveness.

The Role of Solar Inverters in the Future Energy Landscape

As the use of renewable energy increases, solar inverters are also developing into smart grid technology, providing the following functions:

• Real-time energy monitoring
• Remote diagnostics
• Integration with energy storage
• Participation in grid stabilization

All these functions make solar inverters important components in the development of decentralized energy systems.

Conclusion

A solar inverter is more than just an energy converter; it is an energy converter that changes solar energy into usable energy, optimizes the solar energy system, ensures the safety of the users, and allows the users to connect with the electrical grid. It is important for the users of solar energy systems to understand the function of the solar inverter in the energy system, making informed decisions about the solar energy systems they use. It is important for users of solar energy systems to consider the solar inverter while planning the solar energy systems they use, making informed decisions about the solar energy systems they use.
