Automatic operation.
Multi-stage water supply, storage, and distribution solutions.
Solar pump output adjusts with solar energy availability, with customizable pump output priorities.
Versatile application scenarios with expandable functions, allowing for upgrades based on specific needs and high compatibility.
Touch screen human-machine interface (HMll enables monitoring of the inverter's status and parameters, as well as setting its priority starting level.
DC busbar design allows multiple solar pump inverters to maximize daily water output while enhancing overall system efficiency and solar energy utilization.
Product Parameters

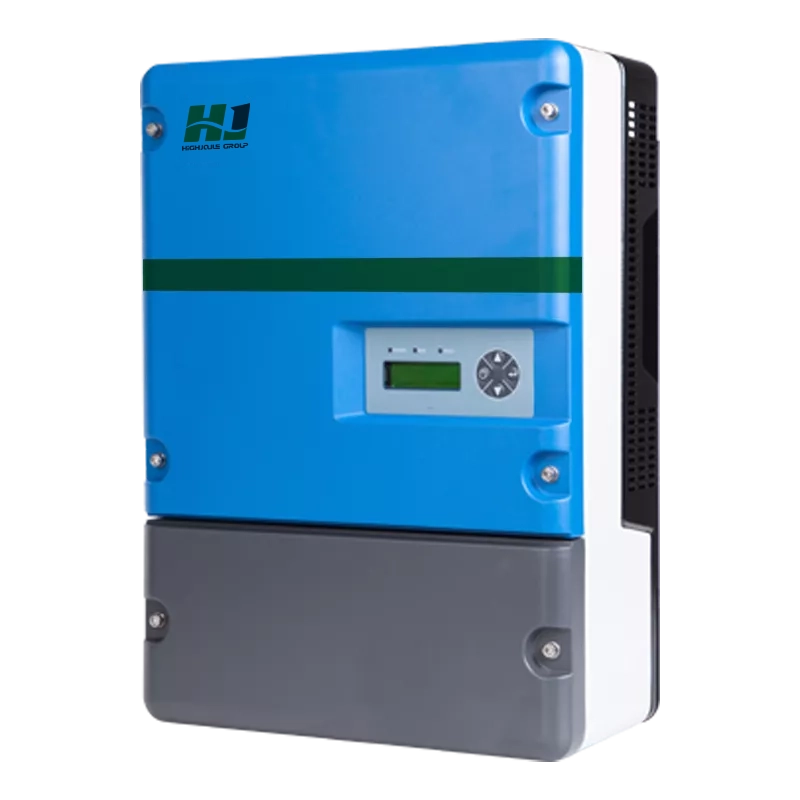

| MODEL | JNP15KH-V5 |
| HJ Model | HJ-PP15KH-P30H13 |
| PV Input | |
| Max. Input Voltage | 880V |
| Recommended MPPT Voltage | 460-850V |
| Max. input Current | 45A |
| Max. MPPT Efficiency | ＞99% |
| Number of String | 1 |
| A.c. Input | |
| Voltage | 360-460Vac, 3PH |
| Frequency | 50Hz/60Hz (±3%) |
| A.c. Output | |
| Max. Motor Output Power | 15kW |
| Rated Output Voltage | 380-460Vac (3PH) |
| Output Frequency Range | 0-50/60Hz |
| Max.Output Current(1PH/3PH) | 29A |
| Q.max. (m³/h) | 36 |
| H.max. (m) | 80 |
| System | |
| Protection Level | IP65 |
| Operating Temperature | -25~+60℃ |
| Cooling Way | Force cooling |
| Display | LCD |
| Communication | RS485,GPRS |
| Altitude | 3000m,above 3000m need derate operating |
| Noise Emission | <50dB |
| Dimension(W/D/Hmm) | 265/173/518.5 mm |
| Weight(kg) | 17.5kg |
| Compliance | EN 50178; IEC/EN 62109-1;IEC61800 |
