Modular Design: Expand capacity by adding more battery modules to the rack.
High Efficiency: Advanced energy management ensures optimal charging and discharging performance.
Intelligent Energy Control: Supports grid-connected, off-grid, and hybrid solar system setups to ensure seamless energy supply management.
Enhanced Safety: Equipped with overcharge, over-discharge, and temperature protection to ensure safe operation.
Durability: Robust design that can withstand daily use and harsh environmental conditions.
Space-saving Design: Compact rack-mounted structure, easy to install and maintain.
Product Parameters

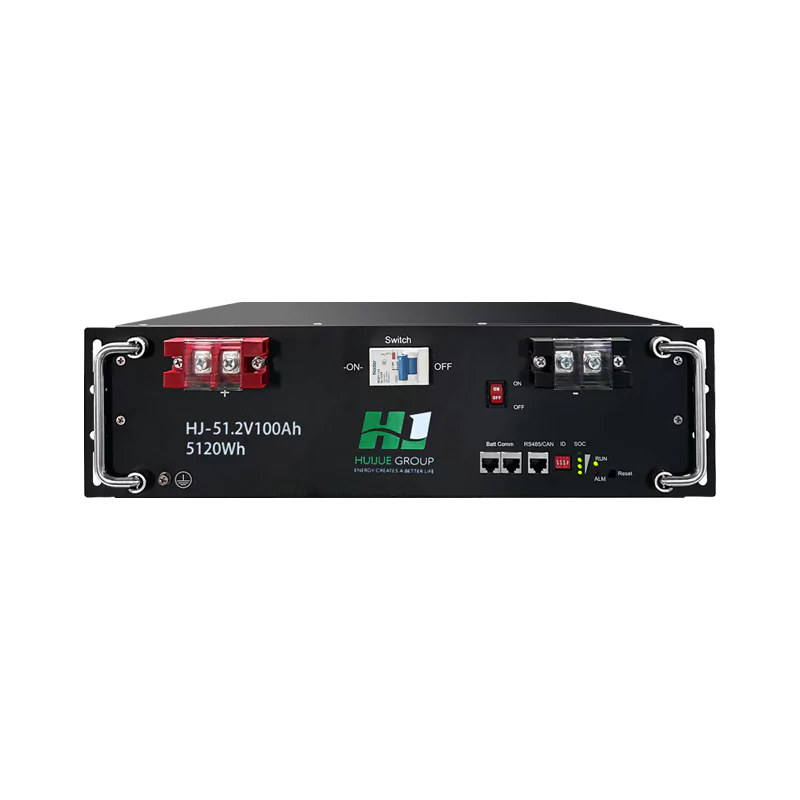

| Product Name | Rack-mounted Home Energy Storage System | |
| Product Model | HJ-HBL48100R | HJ-HBL48200R |
| Battery Type | LiFePO4 Battery | |
| Battery Energy Storage | 5.12kWh | 10.24kWh |
| Battery Capacity | 100Ah | 200Ah |
| Nominal Voltage | 51.2Vdc | |
| Rated Charge/Discharge Current | 25A | 50A |
| Max Charge/Discharge Current | 50A | 100A |
| Cycle Life | > 6000 times @80%DOD@25°C | |
| Communication Protocol | RS485/CAN | |
| Display | LCD/LED (Optional) | |
| IP Rating | IP20 | |
| Certification | CE/IEC/UN38.3/MSDS | |
