Efficient: 30 inputs,{>} 150% DC/AC ratio;
Each MPPT maximum current 80A, compatible with 182 and 210 series bifacial modules;
Patented heat transfer technology, continuous output increase of 5% at high temperature;
Safe: IP66, C5-M Anti-Corrosion level;
Intelligent string break, remote release for DC switch，active safety;
Support intelligent AC/DC terminal temperature detection;
Smart:Intelligent string monitoring, smart l-V curve scan;
Each MPPT online insulation fault detection facilitates rapid fault identification;
Low temperature antifreeze,reverse dust removal indoor dehumidification;
Economic:Inverter with 20ms fast reactive power response, can replace SVGt;
Support 400mm’aluminum wire connection, savingAC cable costt;
Support PLC communication,saving communication cables and construction cost;

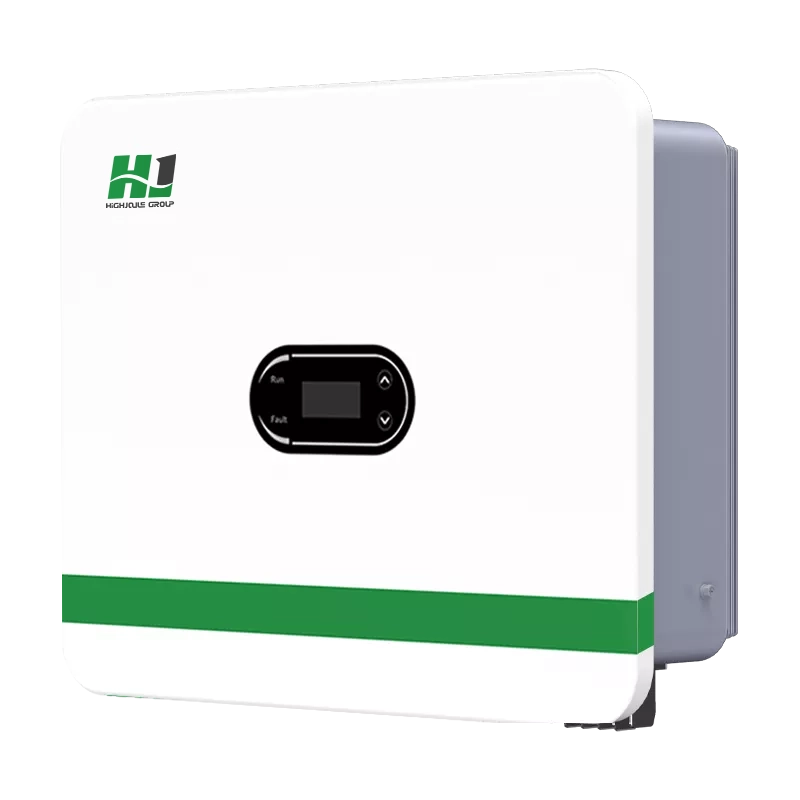

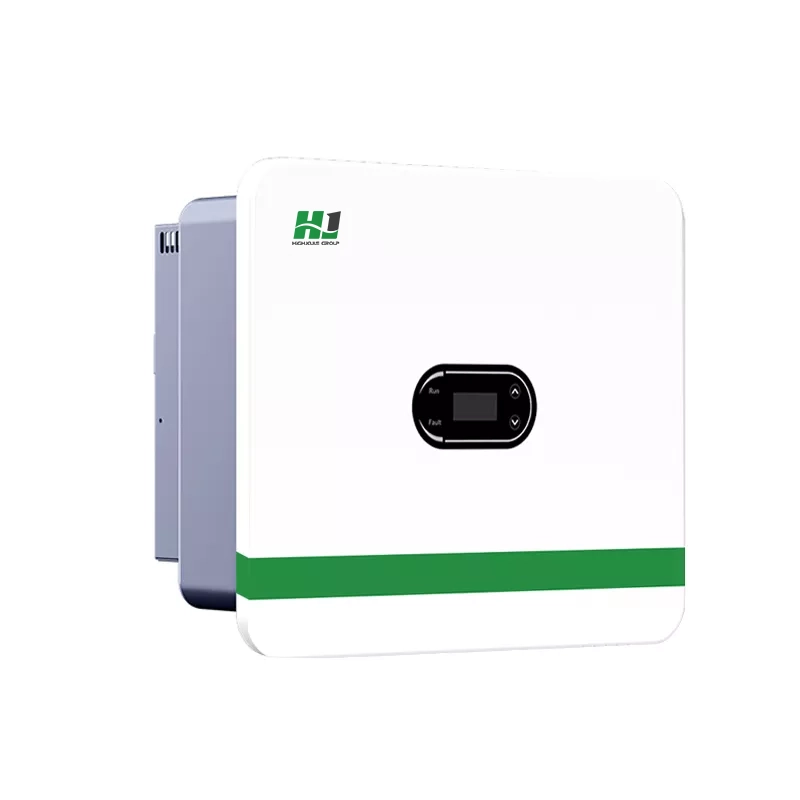

Product Parameters
| Production Model | HJ-IG48203T(E-29) |
| PV Input Date | |
| Max, Input Power | 32KW |
| MPPT Operating Voltage Range | 200~1000V |
| Max.Short Circuit Current | 32A/32A |
| Number of MPPT Trackers | 2 |
| AC Data | |
| Nominal Power | 20KW |
| Nominal Voltage | 230/400Vac,3L+N+PE/3L+PE |
| Nominal Frequency | 50/60Hz±5HZ（adjustable） |
| Max.Current | 35.3A |
| Power Factor | 0.8 leading ~ 0.8 lagging （adjustable） |
| Protection | |
| Protection | DC Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection Residual Curent Monitoring Unit Insulation Resistance Monitoring Ground Fault Monitoring Grid Monitoring Py String Monitoring Surge Protection |
| General Data | |
| Operating Temperature Range | (-25℃~+60℃), auto derating is required if the ambient temperature exceeds 45°C |
| Cooling | Smart fan |
| Relative Humidity | 0~100% |
| Display | LED, Bluetooth + APP |
| Communication | RS485/WiFi/4G/GPRS |
| Installation | wall-mounted |
| Protection Degree | IP66 |
| Dimension (W*D*H) | 534 x 440 x 220mm |
| Weight | 24kg |
| Certification | |
| Production Certification | IEC/EN 62109-1/2, IEC/EN 61000-6-1/3, IEC60068, IEC61683, EN 50 VDE 4105, VDE 0124, RD244, UNE217001, UNE217002, NC RfG, AS4777 549, IEC61727/IEC62116, CEI 0-21, C10/C11, |
