Project Overview

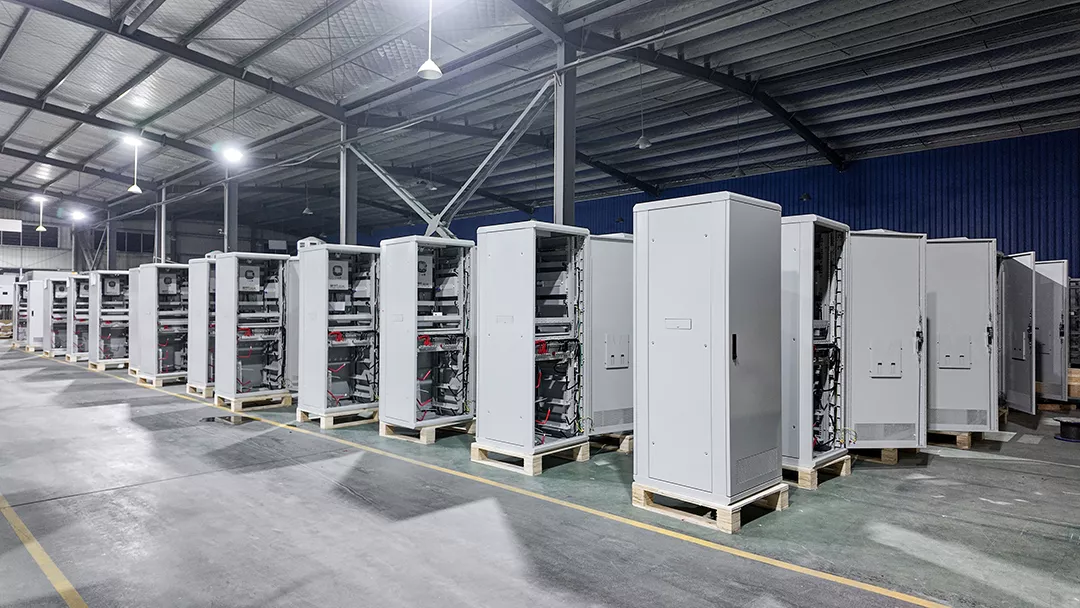

This initiative delivers high-performance off-grid/backup power solutions for indoor telecommunications rooms and data sites. Deploying 400 bespoke indoor satellite communication base station energy cabinets effectively resolves sustained power supply and electrical safety challenges within complex indoor environments. The system integrates high-performance energy storage batteries, intelligent photovoltaic control, and comprehensive electrical protection, enabling efficient clean energy utilisation and rapid, seamless integration with facility infrastructure.
- Project Specifications
Application Scenarios
Satellite Communication Base Stations: Provides stable indoor power for satellite ground receiving stations in remote or specialised locations.
Data Centres/Equipment Rooms: Serves as an off-grid power supply system for indoor data sites or emergency backup power for critical loads.
Indoor Communication Facilities: Adapts to standardised equipment room environments, supporting sustained operation of various network devices.
Installed Capacity
Single-unit storage capacity: 4.8kWh (48V / 100Ah lithium iron phosphate battery pack).

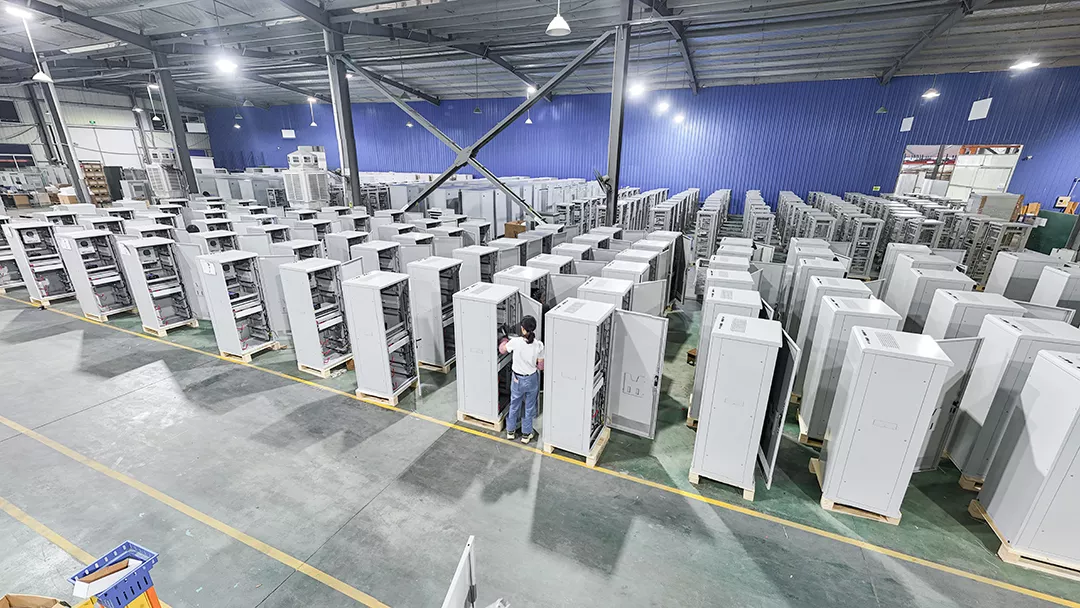

Total project scale: 400 systems, cumulative storage capacity reaching 1.92MWh.
Charging capability: Maximum charging current 80A, supporting 0–230V wide-range photovoltaic input.
Primary Equipment
Energy Storage System: 48V/100Ah rack-mounted lithium battery (15S configuration), with integrated intelligent BMS, cycle life >4000 cycles.
Control System: 80A high-current PV controller, compatible with multiple indoor/outdoor PV connections.
Cabinet Dimensions: 1600mm (H) × 600mm (W) × 600mm (D).

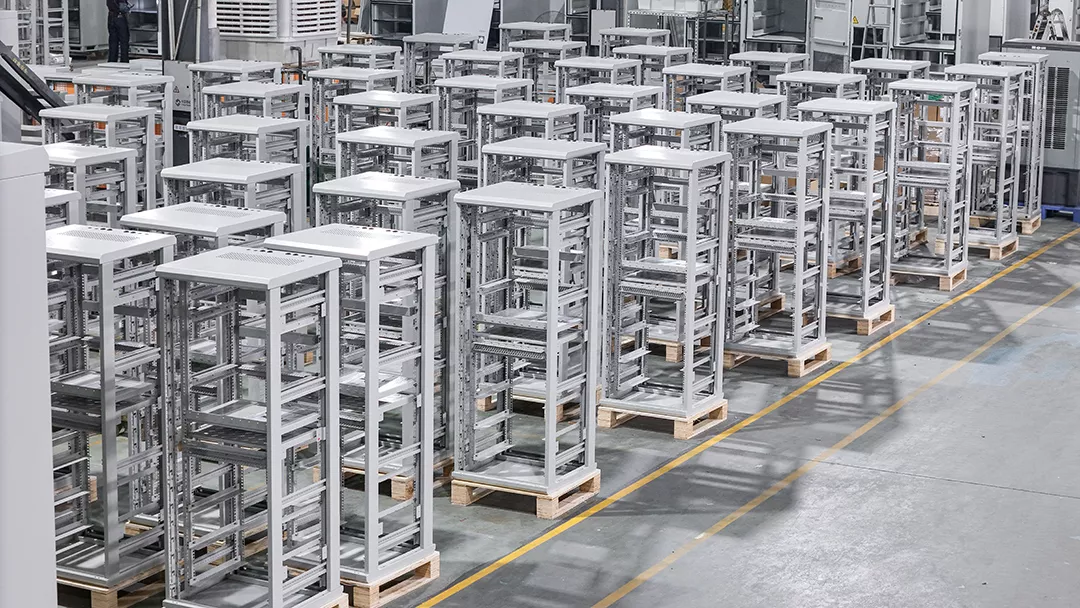

Material: 1.5mm steel frame with perforated door and side panels for ventilation and heat dissipation.
Accessories: Includes L-shaped brackets, battery busbars, grounding busbars, and US-standard sockets.
Electrical Protection: Integrated with 2 x PV circuit breakers, 2 x PV surge protection devices (SPDs), dedicated battery switch, and inverter switch.
