What are some key parameters of energy storage systems?

Rated power is the total possible instantaneous discharge capacity of the system, usually in kilowatts (kW) or megawatts (MW). Energy is the maximum energy stored (power rate in a given time), usually described in kilowatt-hours (kWh) or megawatt-hours (MWH).

What are the application values of industrial and commercial energy storage systems?

Peak-valley arbitrage To reduce corporate electricity costs, utilize the difference in peak-valley electricity prices, charge in valley periods and flat periods, and discharge in peak and peak periods.

What information about the power-consuming enterprise is necessary when installing an energy storage power station?

Basic information: electricity type, basic electricity price, time-sharing period/time-sharing electricity price, and the company's electricity shutdown production situation;

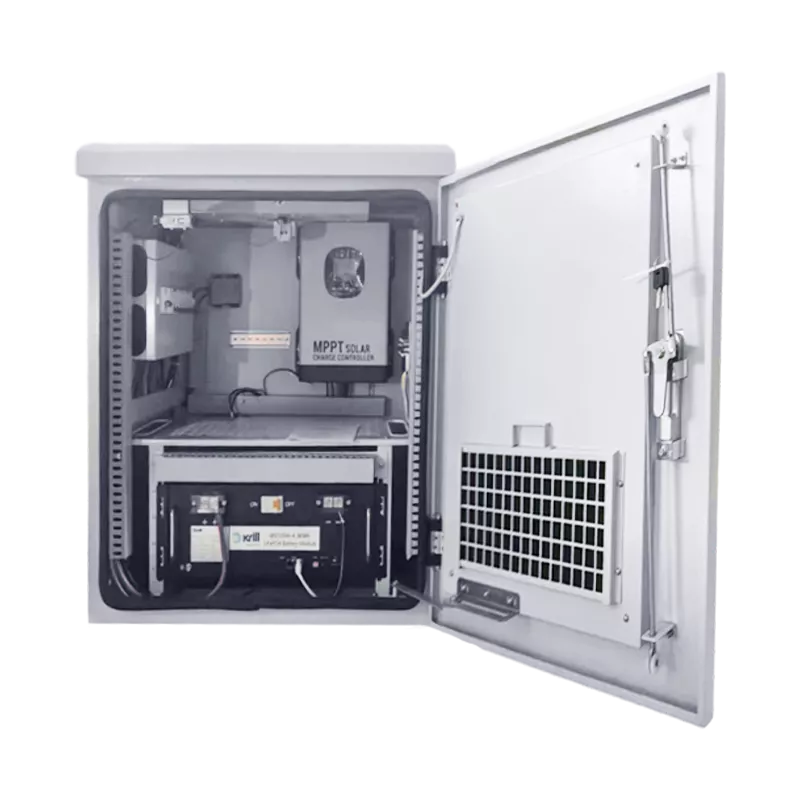

Satellite Communication Energy Cabinet

The Satellite Communication Energy Cabinet is a PV energy storage cabinet from Highjoule Technology Group designed specifically for off-grid satellite communication sites. The system consists of PV modules, an MPPT solar controller, an LFP (Lithium Iron Phosphate) battery pack, a thermal management system, and a power distribution unit, forming a complete off-grid PV generation and energy storage system that provides stable power to satellite communication base stations. The system adopts a modular design and can be efficiently operated and maintained via local and remote monitoring. It supplies 48V DC and AC 120V–200V power to satellite and other industry communication equipment, supporting floor-standing and pole-mount installation.

Product Features

Simple installation supporting floor-standing, pole-mount, and other configurations;
Can integrate a monitoring unit and connect to O&M management platforms via wireless networking;
Available in indoor and outdoor versions, suitable for a variety of environmental conditions;
Designed for fully off-grid scenarios; generates power from PV renewable energy with zero carbon emissions;

Product Parameters

Model	HJ-PS-0105K	HJ-PS-0315K
Capacity	1000W	3000W
MPPT Capacity	Max. 30A	Max. 80A
Dimensions	750(H)700(W)625(D)mm	1600(H)600(W)600(D)mm
PV Input	32A/2P*1	32A/2P*1
Lightning Protection Device	PV DC lightning protection
DC Output	DC 48V (Max. 1000W)	DC 48V (Max. 3000W)
AC Output	AC 110V (Max. 300W)	AC 110V (Max. 500W)
Battery Interface	1× battery interface
Lithium Battery	Includes 1–4× 100Ah lithium batteries
Protection Rating	IP55/IP20
