Stacked-PV MPPT Solar Controller

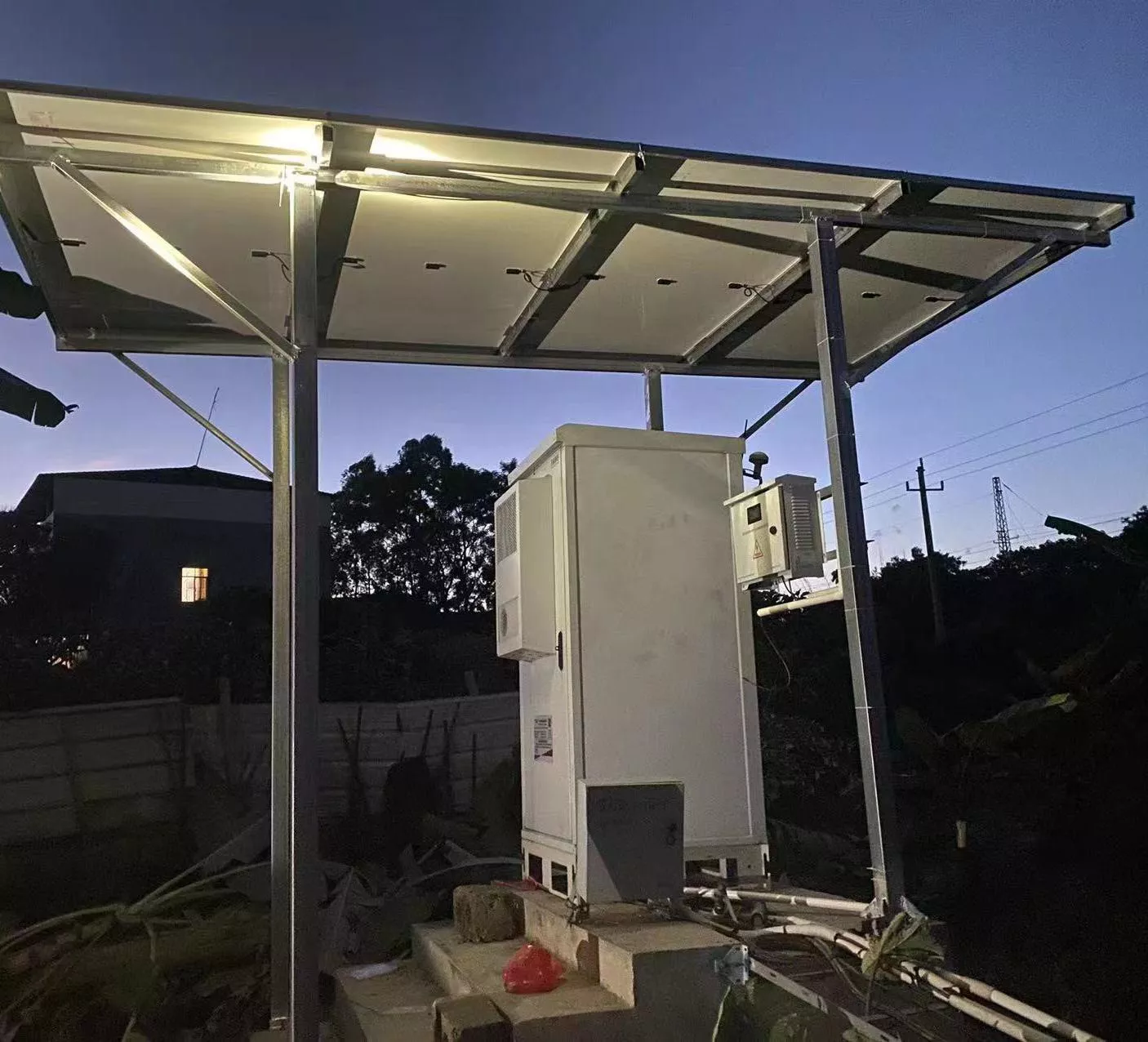

The Stacked-PV MPPT Solar Controller is specially developed for PV capacity expansion at base station sites. Using a series-connection scheme, the system consists of PV modules, a stacked-PV MPPT controller, and a DC meter. Each PV string is series-connected to the controller, which steps down the module output voltage to −48V and injects it onto the rectifier output busbar to supply DC loads. Designed for communication base stations, it supports wall-mount and pole-mount installation. The product is available in outdoor and rack-mount versions.

Product Features

Supports wall-mount and pole-mount installation, suitable for both indoor and outdoor environments
High efficiency: combines multiple MPPT algorithms for a conversion efficiency of up to 97%
High quality: uses internationally leading-brand components for superior electrical performance, high reliability, and long service life
High safety: Protection Rating IP55, supports outdoor installation, built-in circuit breaker and lightning/surge protection

Product Parameters

Parameter Category	Parameter Name	Value

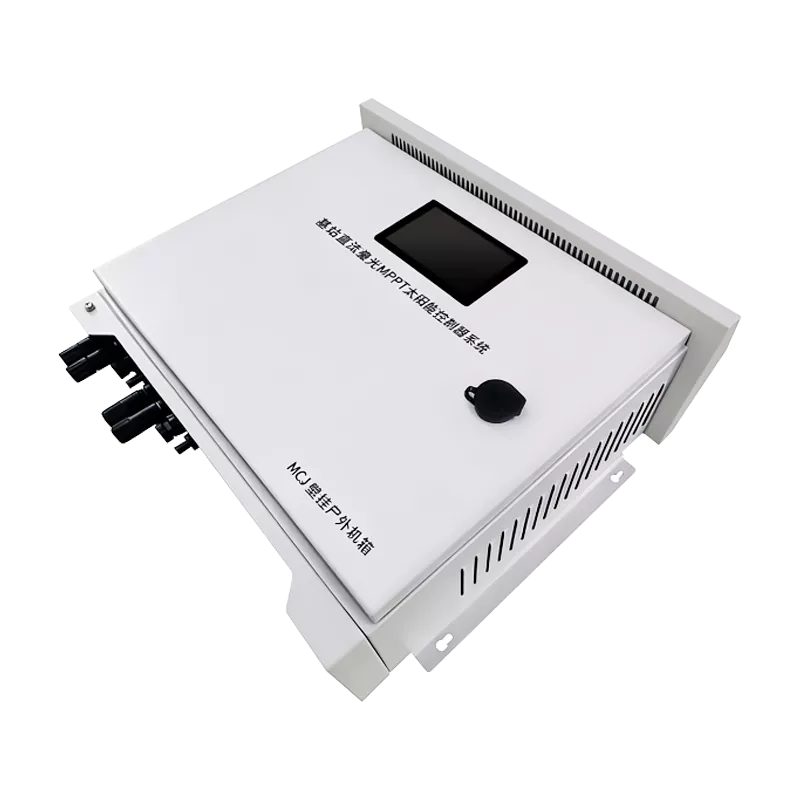

Basic Parameters	Model	HJ-MCJ48H60	HJ-MCJ48H100	HJ-MCJ48H120
	Conversion Efficiency	97%
PV Input	Input Operating Voltage Range	65~250VDC
	PV Input Rated Power	3400W	5600W	6800W
DC Output	DC Output Voltage	Default: 56V DC (adjustable)
Communication Interface	RS485	Standard Modbus protocol
Mounting Method		Wall-mount / pole-mount (indoor or outdoor)

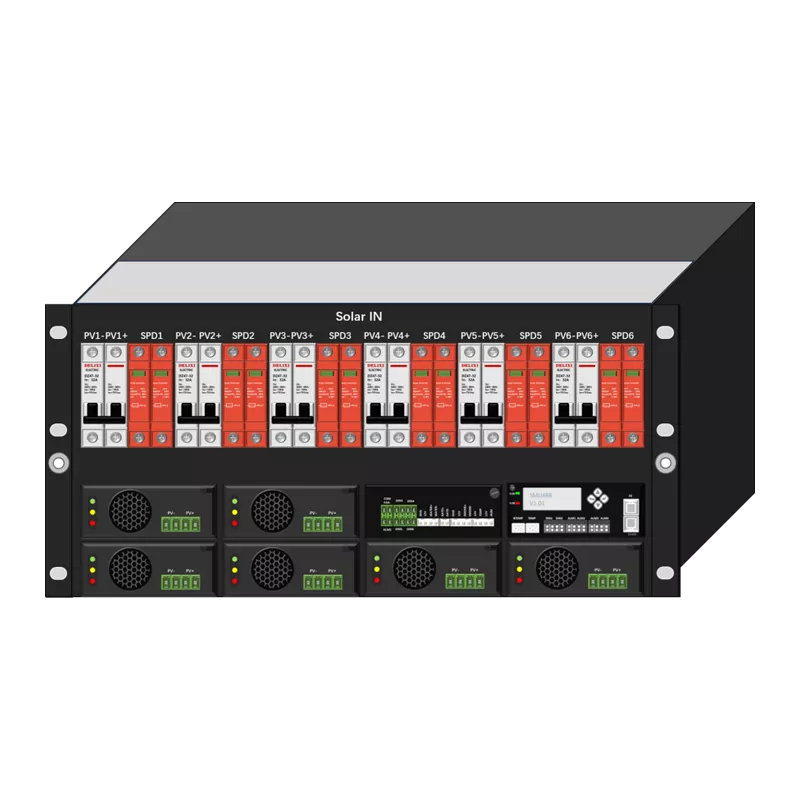

Product Model		HHYS48300A-H5B6-GB01
Shelf/Frame System	Dimensions (W × D × H)	482mm(W) × 365mm(D) × 222mm(H)
	Installation Mode	19-inch rack mount
	Weight	≤20 kg (excluding modules)
Input Characteristics	Input Voltage	DC: 100~400VDC, Rated: 240VDC/336VDC
	Max. Input Current per Module	19A
	Input Capacity	6*32A/2P
Output Characteristics	Output Voltage	43.2V DC ~ 58V DC (default 53.5V DC)
	Rated Output Power	18000W （200Vdc~400Vdc）
		9000W~18000W（100Vdc-200Vdc）
	Peak Efficiency	97%
	Rated Output Current	300A (max）
	Module Slots	6 groups
	Extended DC Interface	Copper busbar: 300A
Monitoring Features	Signal Input	2× analog detection inputs, 6× digital inputs
	Alarm Output	8× dry contact outputs
	Communication Interface	RS485/FE（SNMP/WEB）
	Event Log Storage	Stores more than 1,000 historical alarm events
	Display	LCD 128*48
