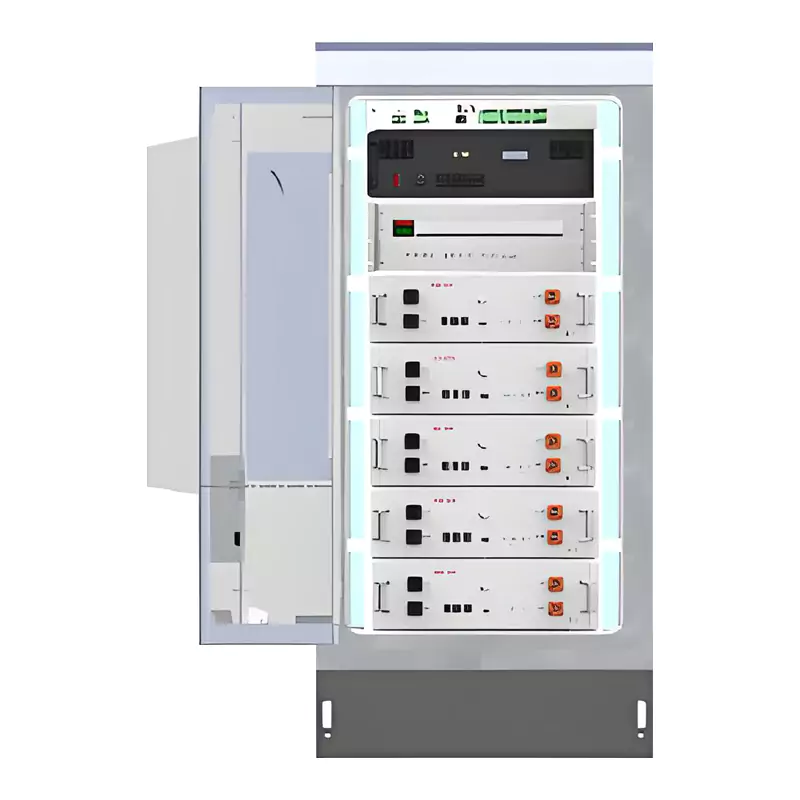

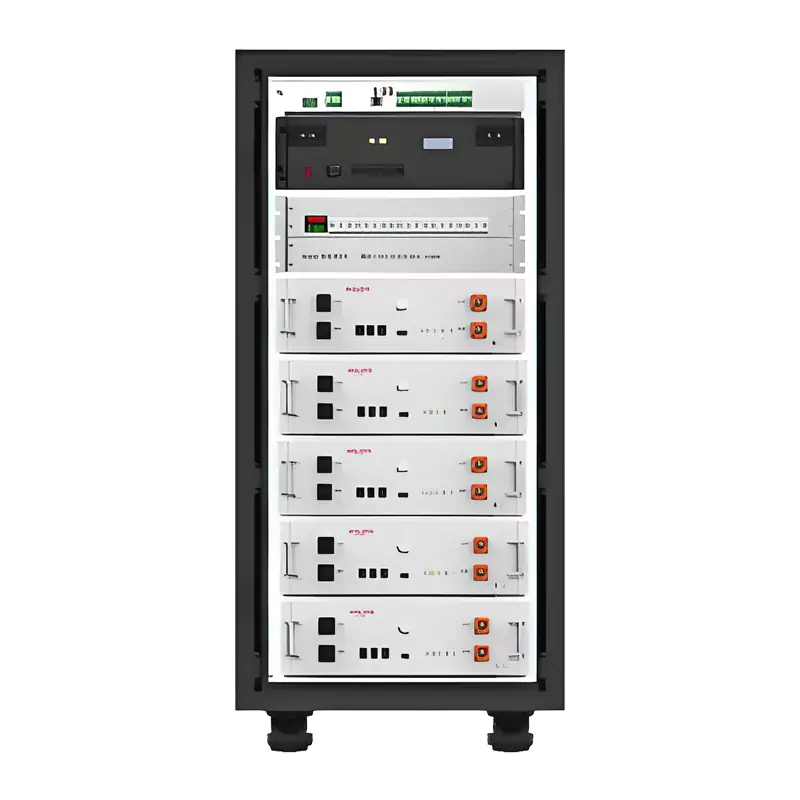

Efficient Integrated Design: Featuring a modular rack-mounted inverter design, this system integrates photovoltaic inversion, energy storage charging and discharging, and intelligent power distribution. It is easy to install, saves space, and adapts to a variety of scenario requirements.
Intelligent Energy Management: Equipped with an EMS (Energy Management System) to dynamically control energy distribution. It prioritizes the use of photovoltaic power generation, stores excess energy, or feeds it back to the grid. It also combines peak-valley electricity pricing strategies to automatically select low-price periods for charging and high-price periods for discharging, reducing electricity costs.
Multi-Mode Flexible Operation: Supports three core modes: self-consumption, grid-connected power generation, and off-grid backup. It can quickly switch to off-grid power supply during a grid outage, ensuring that critical loads continue to operate.
High Safety and Reliability: Built-in BMS (Battery Management System), intelligent battery temperature control, and multiple protection mechanisms (overcharge/over-discharge/short-circuit protection). It is designed to operate in complex environments such as high temperatures and humidity, ensuring the system's long lifespan and stable performance.
Strong Compatibility and Expandability: Supports flexible expansion of storage battery capacity to accommodate different electricity needs. It is compatible with mainstream photovoltaic modules and grid standards, meeting future upgrade requirements.
Product Parameters
| Model | HJ-H10-H05-05A | HJ-H20-H08-08A | HJ-H30-H08-08A | HJ-H10-O05-05A | HJ-H20-O08-08A | HJ-H30-O08-08A |
| Power | 5KW | 8KW | 8KW | 5KW | 8KW | 8KW |
| Maximum Storage Capacity | 10KWh | 20KWh | 30KWh | 10KWh | 20KWh | 30KWh |
| Operating Environment | Indoor floor installation | Outdoor floor installation | ||||
| Dimensions | 1000mm*600mm*600mm | 1400mm*600mm*600mm | 1800mm*600mm*600mm | 1200mm*650mm*650mm | 1600mm*700mm*700mm | 2000mm*700mm*700mm |
