G652D / G657A1 / G657A2 single-mode fiber ensures stable transmission and low signal attenuation
LSZH jacket produces low smoke and zero halogen when burned, meeting indoor fire safety regulations
Simplex/duplex structure options; customizable from 2 to 288 cores to suit diverse structured cabling needs
Wide operating temperature range (-40 to +60 deg C) for various complex indoor environments
Up to 15 years warranty for long service life and low maintenance costs
Product Parameters

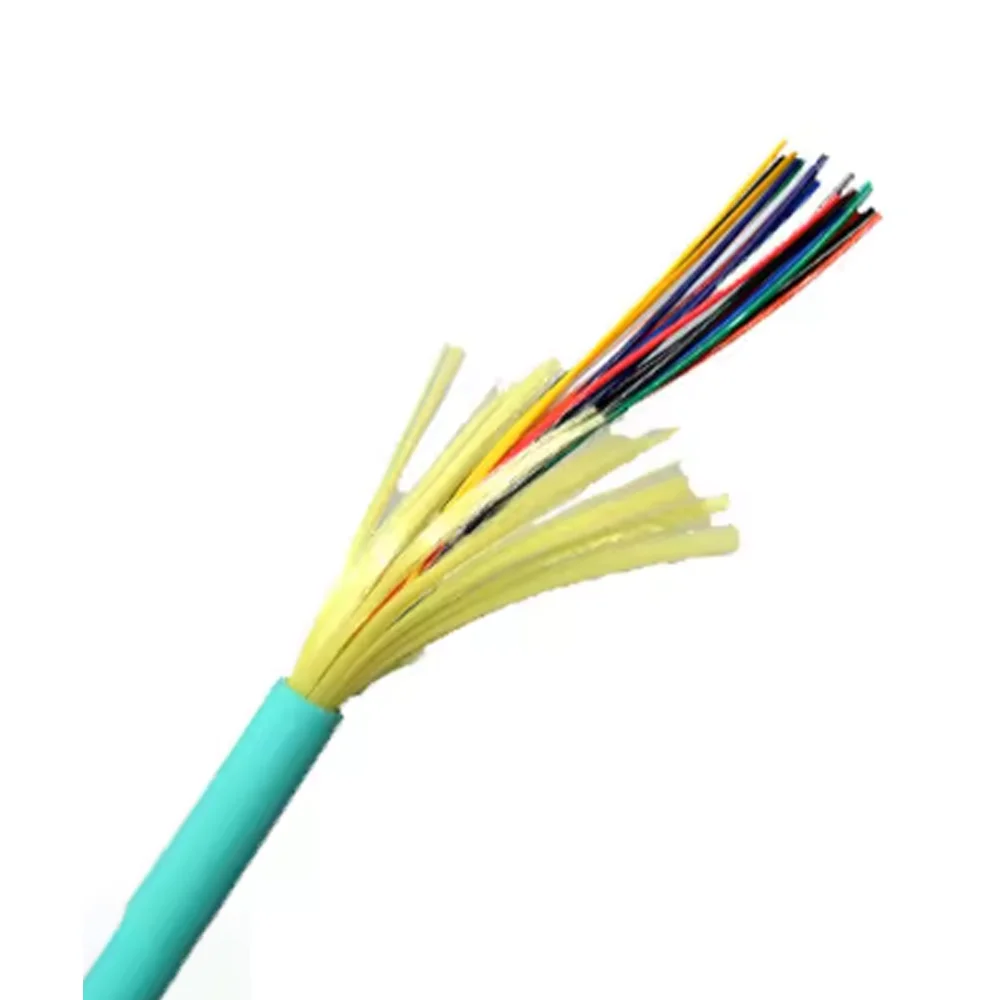

Indoor Fiber Optic Cable LSZH 2-288 Core
| Item | Value |
| Product Name | GJBFJH/V OUFU Indoor Fiber Optic Cable (LSZH Jacket) |
| Model Number | GJBFJH / GJBFJV |
| Cable Type | Indoor Fiber Optic Cable |
| Fiber Type | G652D / G657A1 / G657A2 Single Mode Fiber |
| Fiber Count | 2 to 288 Cores (Customizable) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Application | Indoor Structured Cabling |
| Operating Temp | -40 to +60 deg C |
| Warranty | 15 Years |
| Package Size | 29.5 x 45.5 x 31.5 cm |
| Gross Weight | 32.5 kg |
| Selling Unit | Single item |
| MOQ | 2,000 meters |
| Price Range | $0.11 ~ $0.22 / meter |
| Lead Time | 1-2,000 m: 3 days; >2,000 m: negotiable |
| Shipping | Ocean freight via Maersk, from $0.84/kg (min. 50kg) |
| Transit Time | Est. 17-24 days |
| Customization | Logo, packaging, graphic customization (MOQ 1 meter) |
| Payment | T/T, L/C, D/P |

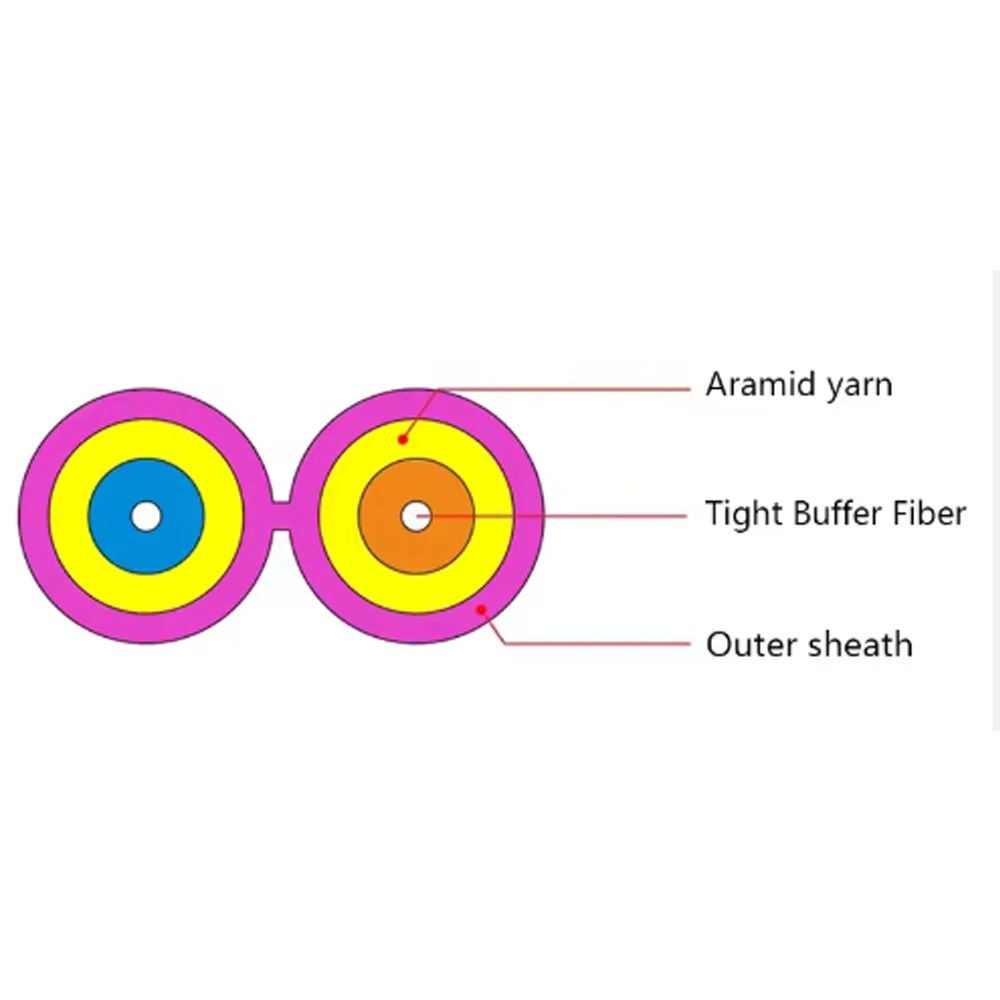

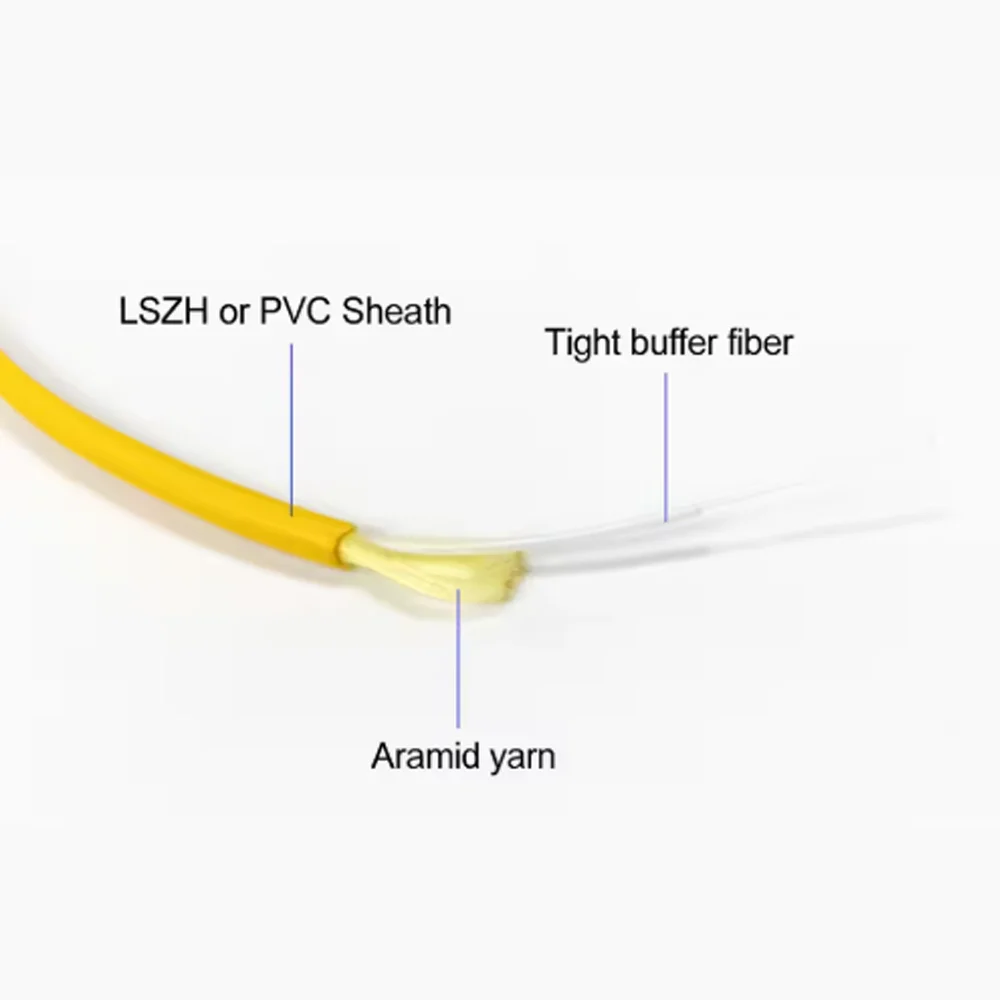

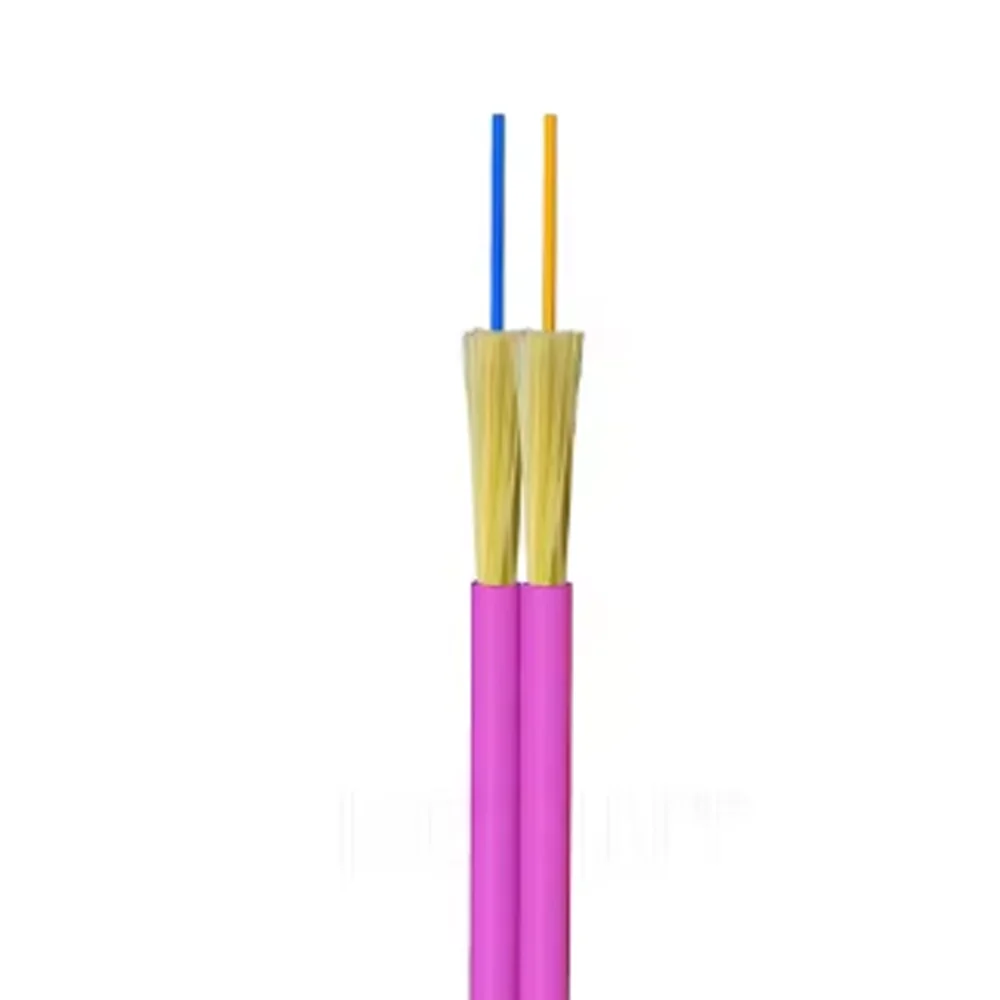

Indoor Fiber Optic Cable Single/Multi Mode Simplex & Duplex
| Item | Value |
| Product Name | GJBFJH Indoor Fiber Optic Cable (Simplex/Duplex, SM/MM) |
| Model Number | GJBFJH / GJBFJV |
| Cable Type | Indoor Fiber Optic Cable |
| Fiber Type | G652D / G657A1 / G657A2 (Single Mode); Multimode customizable |
| Fiber Count | 1 / 2 / 48 Cores (customizable 2-288 cores) |
| Structure | Simplex / Duplex |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Application | Indoor Structured Cabling |
| Operating Temp | -40 to +60 deg C |
| Warranty | 15 Years |
| Package Size | 29.5 x 45.5 x 31.5 cm |
| Gross Weight | 32.5 kg |
| MOQ | 3 kilometers |
| Lead Time | 1-3 km: 7 days; >3 km: negotiable |
| Price Range | $0.30 ~ $0.50 / km |
| Shipping | Ocean freight via Maersk, from $0.84/kg (min. 50kg) |
| Transit Time | Est. 17-24 days |
| Customization | Logo, packaging, graphic customization (MOQ 1 km) |
| Payment | T/T, L/C, D/P |
