Return loss >= 25 dB effectively suppresses optical reflection noise, ensuring stable high-speed multimode link transmission
LSZH jacket produces no toxic gases and minimal smoke when burned, meeting strict fire safety requirements of telecom-grade equipment rooms and data centers
MPO connector uses Female design for seamless mating with standard MTP/MPO adapters and trunk cables
PVC jacket with good flexibility and bend resistance, suitable for repeated insertion/removal and dense routing in equipment rooms
Product Parameters

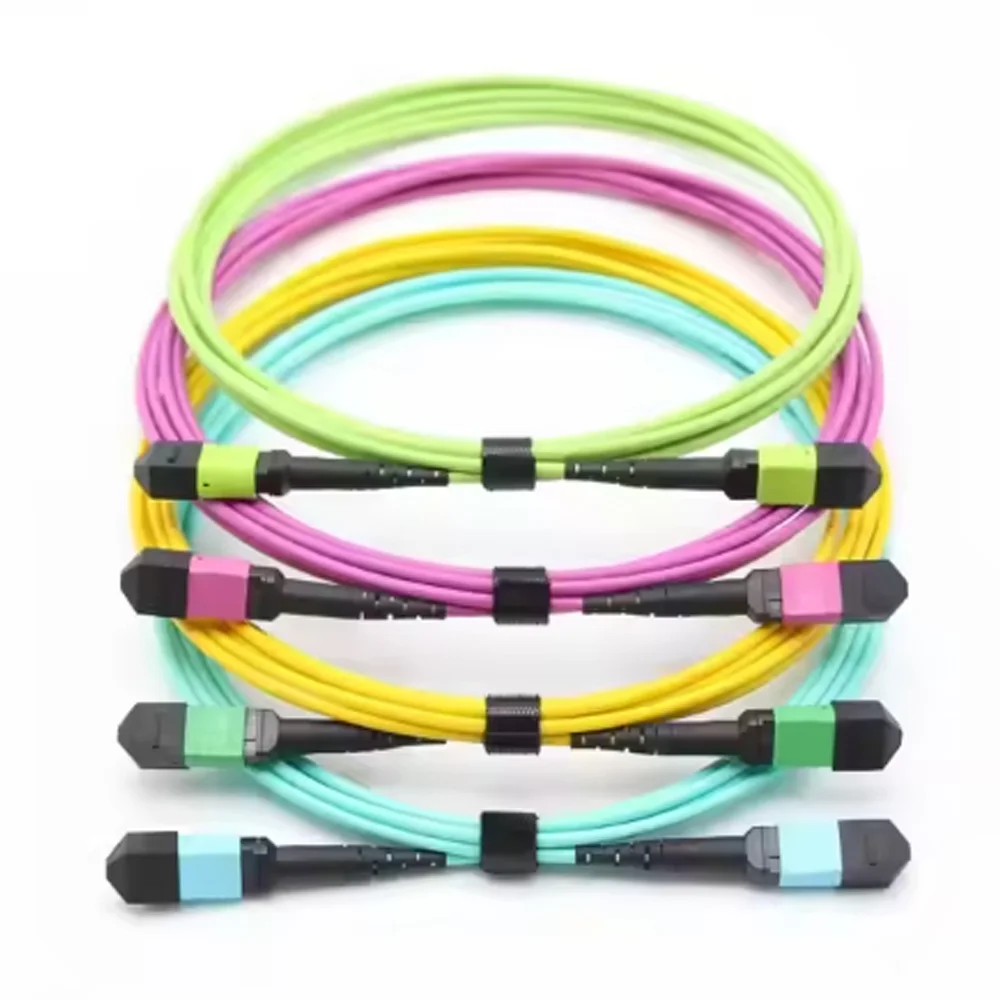

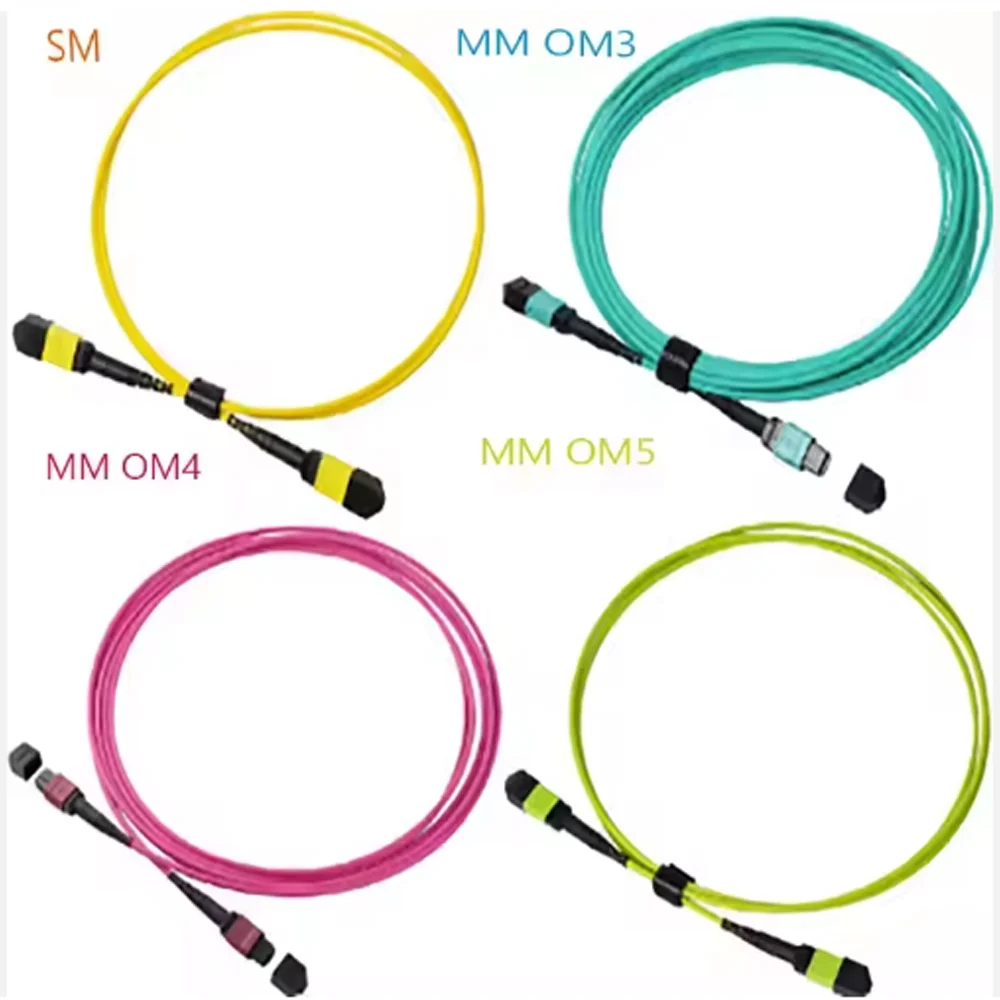

MPO OM3 Multimode Fiber Optic Patch Cord
| Item | Value |
| Product Name | MPO OM3 Multimode Fiber Optic Patch Cord |
| Product Type | Fiber Optic Patch Cord |
| Connector | MPO to MPO (MPO-MPO) |
| Fiber Type | OM3 Multimode Fiber |
| Fiber Color | Aqua (OM3 Standard Color) |
| Return Loss | >= 25 dB |
| Application | 40G QSFP+ SR Module High-Speed Interconnect; High-Density Data Center Cabling |
| Available Lengths | Approx. 1m / 1.5m / 2m and other lengths customizable |
| Color | As shown in pictures (customizable) |
| Selling Unit | Single item |
| MOQ | 500 pieces |
| Lead Time | 1-500 pcs: 10 days; 501-1,000 pcs: 14 days; >1,000 pcs: negotiable |
| Customization | Packaging customization supported (MOQ 500 pcs) |
MPO-MPO OM4 Multimode LSZH Fiber Optic Patch Cord
| Item | Value |
| Product Name | MPO-MPO OM4 Multimode LSZH Fiber Optic Patch Cord for Telecommunications |
| Product Type | Fiber Optic Patch Cord |
| Connector | MPO to MPO (MPO-MPO) |
| Fiber Type | OM4 Multimode Fiber |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Cable Color | As shown in pictures (customizable) |
| Return Loss | >= 25 dB |
| Application | 40G QSFP+ SR Module; Telecom-grade High-Density Fiber Interconnect |
| Available Lengths | Approx. 1m / 1.5m / 2m and other lengths customizable |
| Selling Unit | Single item |
| MOQ | 500 pieces |
| Lead Time | 1-500 pcs: 10 days; 501-1,000 pcs: 14 days; >1,000 pcs: negotiable |
| Customization | Packaging customization supported (MOQ 500 pcs) |

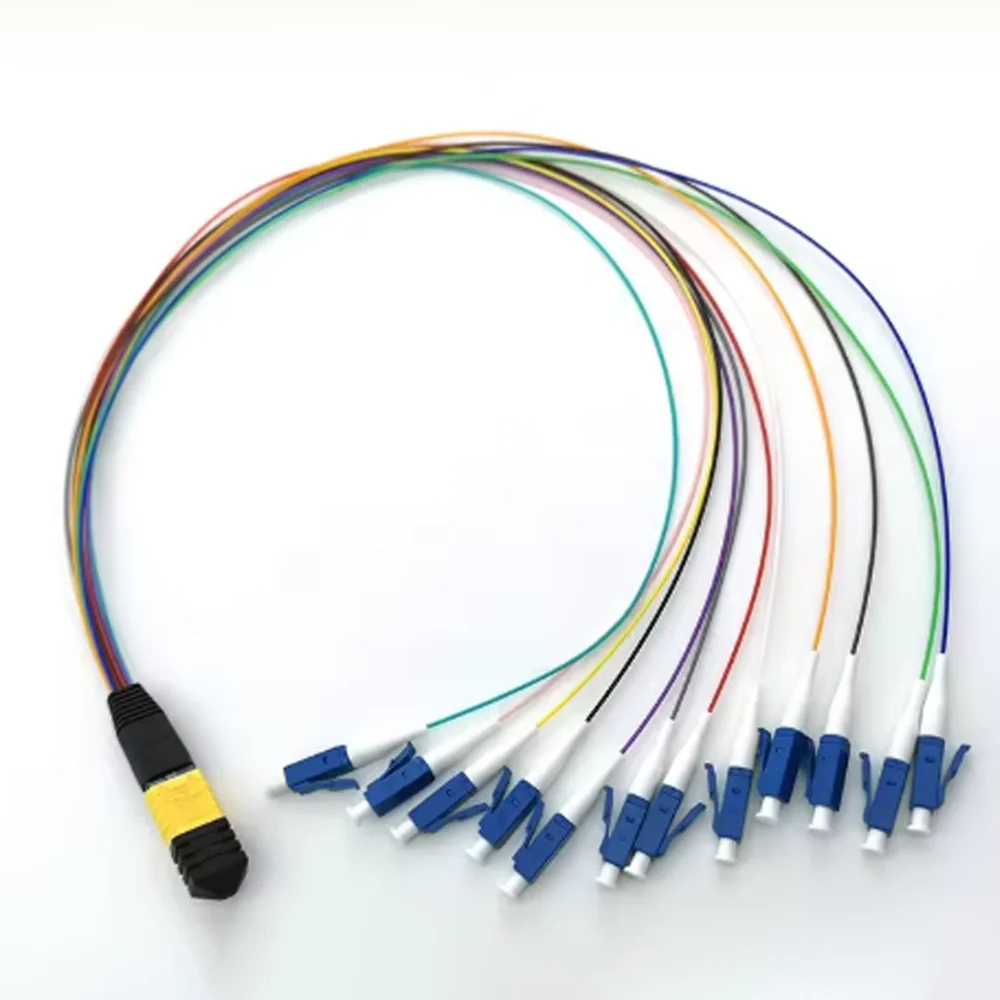

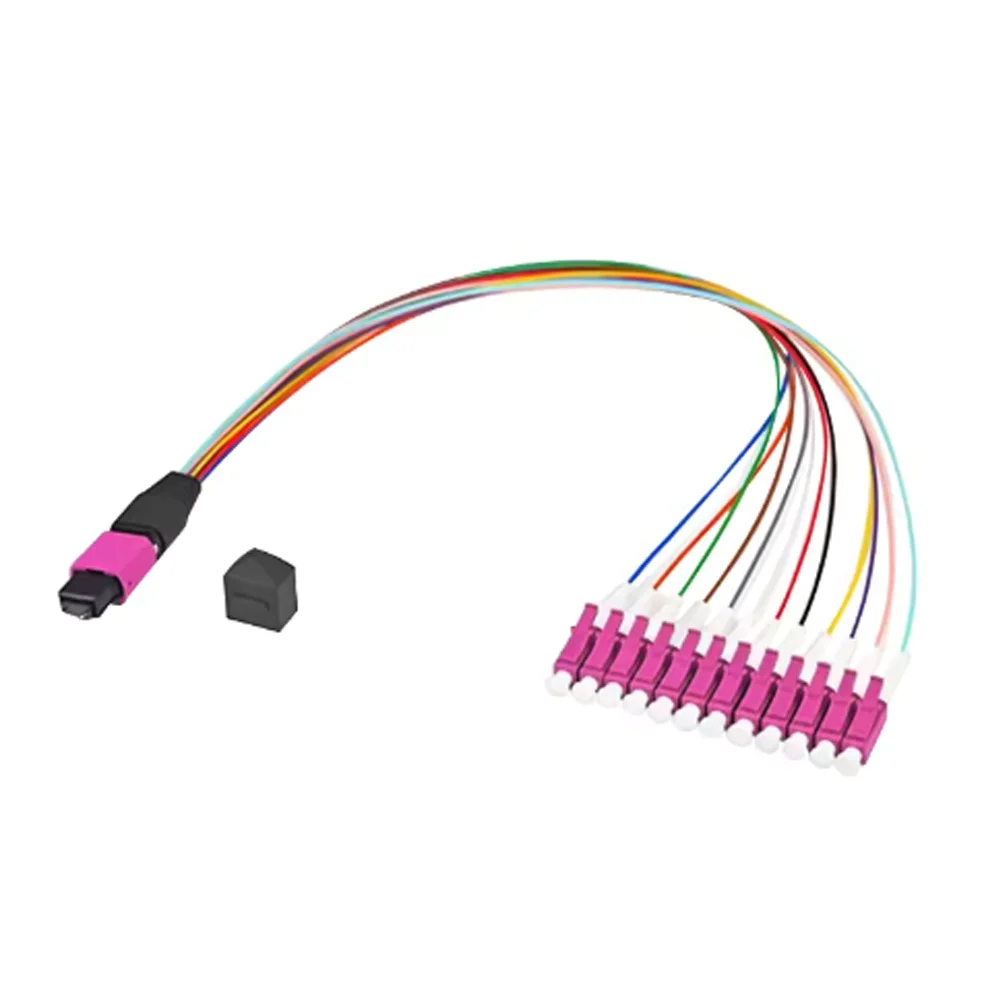

MPO-LC OM4 8-Core 2.0mm Fiber Optic Patch Cord
| Item | Value |
| Product Name | 40G MPO to LC OM4 Multimode Fiber Optic Patch Cord (Fanout) |
| Product Type | MPO to LC Fanout Fiber Optic Patch Cord |
| Connector | MPO Female to 8x LC (Duplex) |
| Fiber Type | OM4 Multimode Fiber |
| Fiber Count | 8 Cores |
| Cable Diameter | 0.9mm / 1.6mm / 2.0mm / 3.0mm / 5.0mm / 7.0mm / 8.0mm (optional) |
| Jacket Material | PVC / LSZH (optional) |
| Insertion Loss | <= 0.7 dB (Standard Loss) |
| Return Loss | >= 60 dB |
| Long-Term Tensile | 50 N |
| Installation Tensile | 100 N |
| Loss Grade | Standard Loss / Low Loss (optional) |
| Standard Length | 5 meters (other lengths customizable) |
| Application | 40G High-Density Parallel Optical Interconnect in Data Centers |
| Selling Unit | Single item |
| MOQ | 30 pieces |
| Customization | OEM brand and packaging customization supported |
Fiber Optic MPO to MPO Single Mode Patch Cord G652D
| Item | Value |
| Product Name | PVC Fiber Optic MPO to MPO Single Mode Patch Cord |
| Product Type | MPO Fiber Optic Patch Cord |
| Connector | MPO to MPO (MPO-MPO) |
| Fiber Type | G652D Single Mode Fiber |
| Jacket Material | PVC |
| Return Loss | >= 50 dB |
| Application | 40G QSFP+ SR Module High-Speed Interconnect |
| Available Lengths | Approx. 1m / 1.5m / 2m and other lengths customizable |
| Color | As shown in pictures (customizable) |
| Selling Unit | Single item |
| MOQ | 500 pieces |
| Lead Time | 1-500 pcs: 15 days; 501-3,000 pcs: 25 days; >3,000 pcs: negotiable |
| Customization | Logo, packaging, graphic customization supported |
