Fiber Optic Patch Cord – All Models Combined
Fiber Optic Patch Cord – All Models Combined
Fiber Optic Patch Cord – All Models Combined
Fiber Optic Patch Cord – All Models Combined
Fiber Optic Patch Cord – All Models Combined
Fiber Optic Patch Cord – All Models Combined

Fiber Optic Patch Cord – All Models Combined

Fiber Optic Patch Cords are pre-terminated fiber optic cables used for equipment interconnection, test connections, and link extensions in optical communication systems. This product series covers Single-Mode (SM) and Multimode (MM, OM3/OM4) categories, supporting FC, LC, SC and other mainstream connector types with UPC and APC polishing options in both Simplex and Duplex configurations. All products use G652D/G657A single-mode or multimode fibers with low insertion loss, high return loss, and excellent repeatability. Suitable for FTTH, data centers, LAN, and CATV applications.
Product Features
Full range: Single-Mode (G652D/G657A) and Multimode (OM3/OM4)
Multiple connector types: FC, LC, SC with UPC and APC polishing options
Low insertion loss (≤ 0.3 dB); high return loss (UPC ≥ 50 dB; APC ≥ 60 dB)
OEM/ODM customization available
Contact Us
Parameters Video Document

Product Parameters

Product Model List

Single Mode, Simplex, FC/APC-FC/APC
Single Mode, Simplex, FC/UPC-FC/UPC
Single Mode, Simplex, LC/APC-LC/APC
Single Mode, Simplex, LC/UPC-LC/UPC
Single Mode, Simplex, SC/APC-SC/APC
Single Mode, Simplex, SC/UPC-SC/UPC

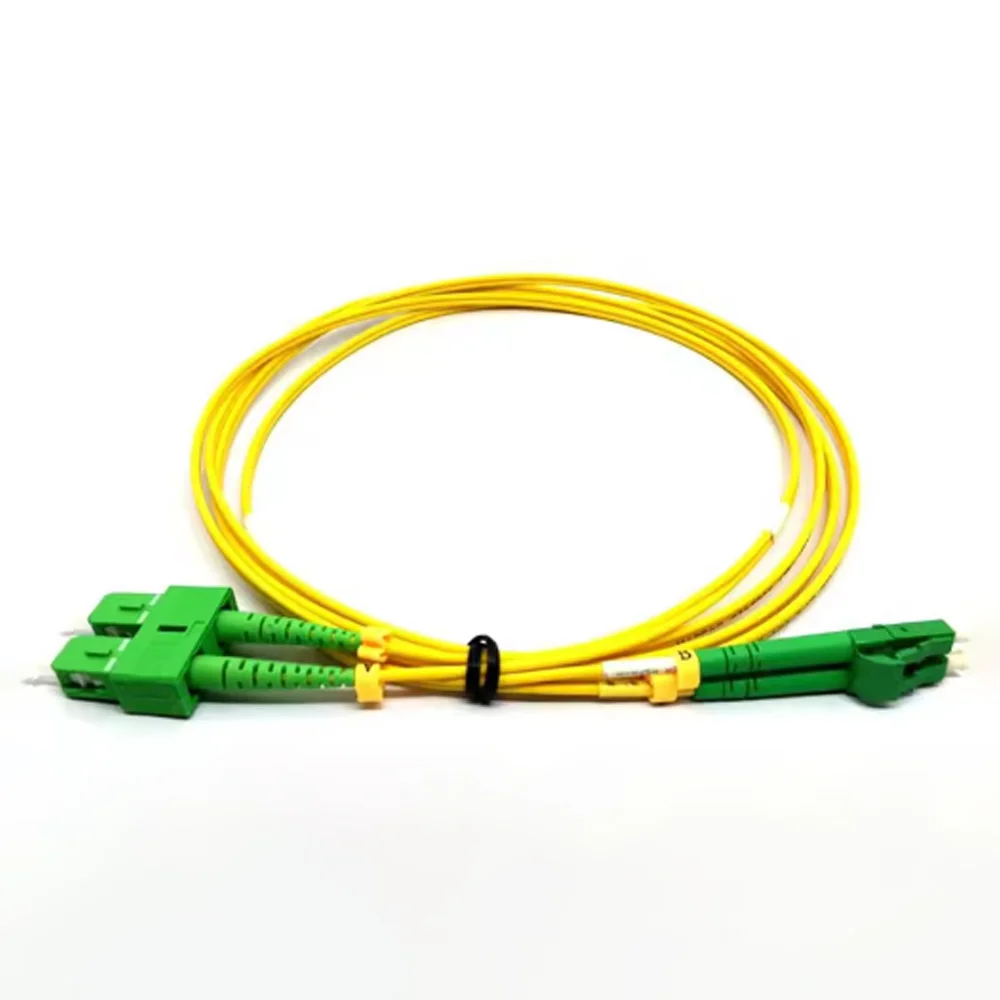

Single Mode, Duplex, DSC/APC-DLC/APC
Single Mode, Duplex, FC/APC-FC/APC
Single Mode, Duplex, FC/UPC-FC/UPC
Single Mode, Duplex, LC/APC-LC/APC
Single Mode, Duplex, LC/UPC-LC/UPC
Single Mode, Duplex, SC/APC-SC/APC
Single Mode, Duplex, SC/UPC-SC/UPC
Multimode, Simplex, FC/UPC-FC/UPC
Multimode, Simplex, LC/UPC-LC/UPC
Multimode, Simplex, SC/UPC-SC/UPC
Multimode, Duplex, FC/UPC-FC/UPC
Multimode, Duplex, LC/UPC-LC/UPC
Multimode, Duplex, SC/UPC-SC/UPC
Multimode OM3, Simplex, FC/UPC-FC/UPC
Multimode OM3, Simplex, LC/UPC-LC/UPC
Multimode OM3, Simplex, SC/UPC-SC/UPC
Multimode OM3, Duplex, LC/UPC-LC/UPC
Multimode OM4, Duplex, FC/UPC-FC/UPC
Multimode OM4, Duplex, LC/UPC-LC/UPC
