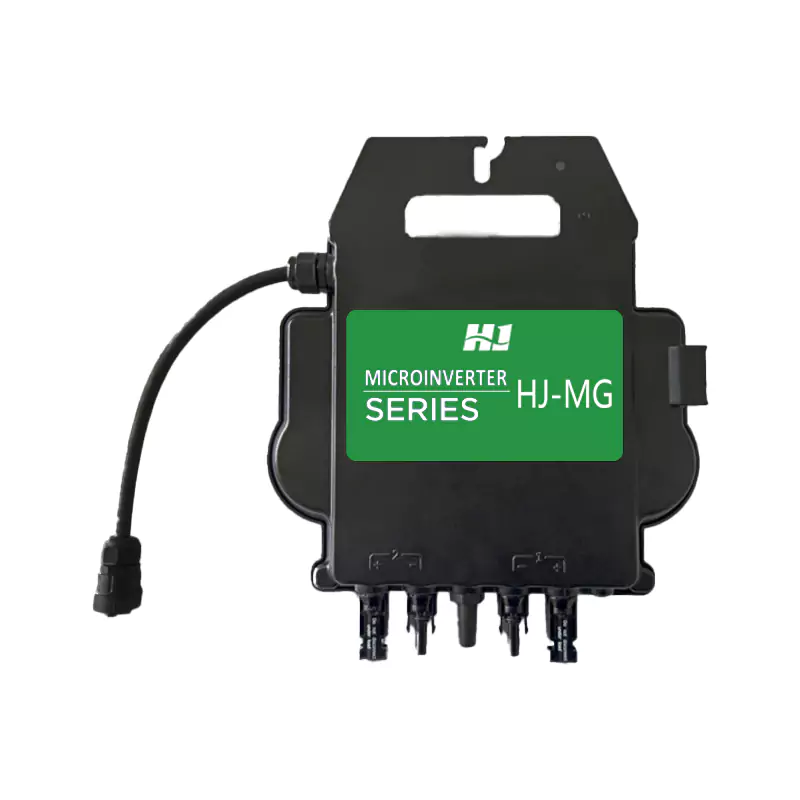

Independent MPPT: One microinverter connects two modules with independent MPPTs, with a maximum output power of 1000W.
High Protection Level: IP67 high protection level.
Comprehensive Features: Built-in Wi-Fi and Bluetooth; built-in safety protection relay; direct plug-in to wall socket.
Product Parameters
| DC Input | |
| Recommended Module Power Range | 410Wp-760Wp+ |
| MPPT Voltage Range | 28V-45V |
| Operating Voltage Range | 26V-60V |
| Maximum DC Input Voltage | 60V |
| Maximum DC Input Current | 20A x 2 |
| Maximum DC Short-Circuit Current | 25A x 2 |
| AC Output | |
| Rated Output Power | 1000W |
| Rated Output Voltage / Default Output Voltage Range | 220V / 187V-242V |
| Maximum Output Current | 4.5A |
| Rated Output Frequency / Default Output Frequency Range | 50Hz / 47.5Hz-50.5Hz |
| Power Factor | >0.99 |
| Efficiency | |
| Maximum Efficiency | 96% |
| MPPT Tracking Efficiency | 99.90% |
| Night Loss | 20mW |
| Mechanical Data | |
| Operating Temperature | -40℃ to +65℃ |
| Storage Temperature | -40℃ to +85℃ |
| Dimensions (LxWxH) | 263mm x 218mm x 37mm |
| Weight | 3kg |
| DC Connector Type | Staubli MC4 PV-ADBP4-S2 & ADSP4-S2 |
| Cooling | Natural Cooling (No Fan) |
| Protection Rating | IP67 |
| Pollution Degree | PD3 |
| Working Humidity Range | 4%-100% |
| Maximum Altitude | <2000m |
| Overvoltage Category | PV Input Circuit OVC II, Power Supply Circuit OVC I |
| Power Cable (Optional) | |
| Cable Size | 2.5mm² |
| Cable Length | Default 4 meters |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Isolation Design | High-frequency transformer, current isolation |
| Energy Management* | AP EasyPower App |
| Warranty | Standard 12 years |
