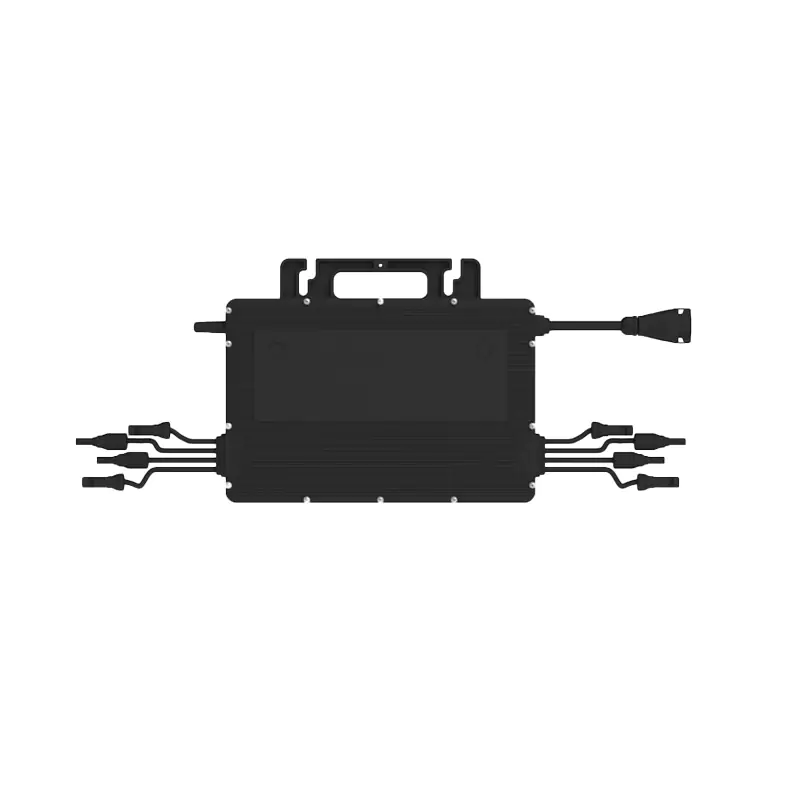

High Power: High-power microinverter with an output power of up to 2000VA.
High Efficiency: Module-level MPPT and data monitoring for higher power generation and simpler operation and maintenance.
Reactive Power Compensation: Equipped with reactive power compensation functionality, compliant with the NB/T 32004-2018 standard.
High Safety: Meets the stringent North American rapid shutdown requirements, making it safer for use in rooftop PV systems.
Product Parameters

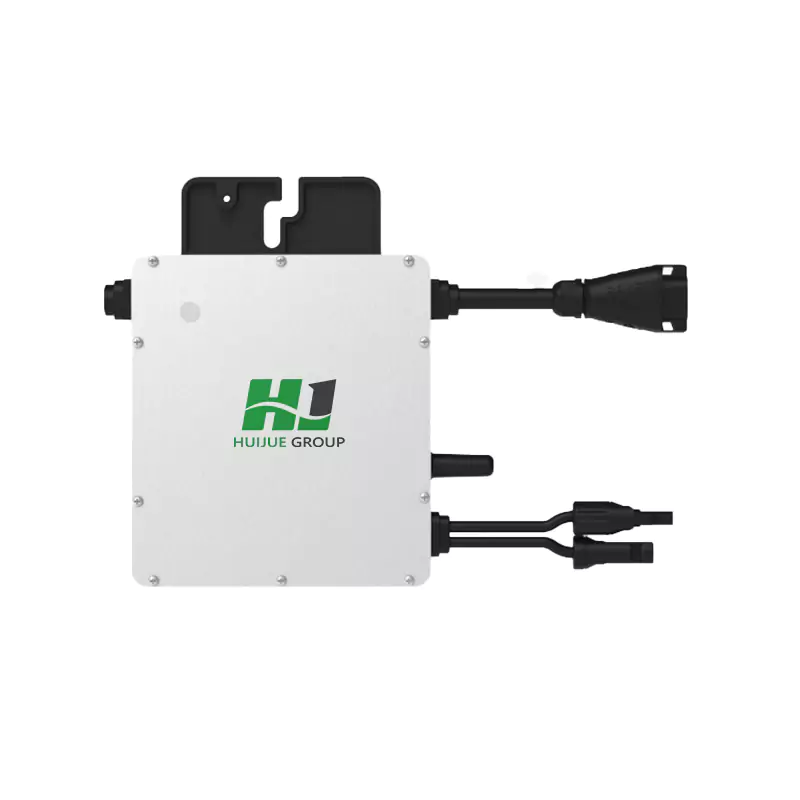

| Model | HJ-MG0003-W (500W) |
| Input (DC) | |
| Compatible Module Power (W) | 360~600+ |
| Maximum Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16~60 |
| Start Voltage (V) | 22 |
| Maximum Input Current (A) | 15 |
| Maximum Input Short-Circuit Current (A) | 25 |
| Number of MPPTs | 1 |
| Maximum MPPT Inputs per Channel | 1 |
| Output (AC) | |
| Rated Output Power (VA) | 450 |
| Rated Output Current (A) | 2.05 |
| Output Voltage / Range (V) | 220 / 180~275 |
| Rated Frequency / Range (Hz) | 50 / 45~55 |
| Adjustable Power Factor (at Rated Power) | >0.99 Default, 0.8 Leading… 0.8 Lagging |
| Total Harmonic Distortion (at Rated Power) | <3% |
| Maximum Micro Inverters per Branch (2.5mm² Bus) | 11 |
| Maximum Micro Inverters per Branch (4mm² Bus) | 15 |
| Maximum Micro Inverters per Branch (6mm² Bus) | 19 |
| Efficiency | |
| Peak Efficiency | 96.5% |
| MPPT Efficiency | 99.8% |
| Night Power Consumption (mW) | <50 |
| Mechanical Parameters | |
| Ambient Temperature (°C) | -40~+65 |
| Dimensions (W×H×D mm) | 182×164×30 |
| Weight (kg) | 1.75 |
| Protection Class | Outdoor-IP67 |
| Cooling Mode | Natural Convection |
| Safety Protection Features | |
| Anti-islanding Protection, Input Reverse Connection Protection, Output Short Circuit Protection, Output Overcurrent Protection, Output Overvoltage Protection, 6000V Surge Protection | |
| Features | |
| Active Power Adjustment, Reactive Power Adjustment, High Voltage Ride Through (Optional), Low Voltage Ride Through (Optional), High Frequency Transformer Isolation | |
| Other | |
| Communication Mode | Sub-1G |
| Model | HJ-MG0003-W (1000W) |
| Input (DC) | |
| Compatible Module Power (W) | 400~670+ |
| Maximum Input Voltage (V) | 65 |
| MPPT Voltage Range (V) | 16~60 |
| Start Voltage (V) | 22 |
| Maximum Input Current (A) | 2×15 |
| Maximum Input Short-Circuit Current (A) | 2×25 |
| Number of MPPTs | 2 |
| Maximum MPPT Inputs per Channel | 1 |
| Output (AC) | |
| Rated Output Power (VA) | 900 |
| Rated Output Current (A) | 4.09 |
| Output Voltage / Range (V) | 220 / 180~275 |
| Rated Frequency / Range (Hz) | 50 / 45~55 |
| Adjustable Power Factor (at Rated Power) | >0.99 Default, 0.8 Leading… 0.8 Lagging |
| Total Harmonic Distortion (at Rated Power) | <3% |
| Maximum Micro Inverters per Branch (2.5mm² Bus) | 5 |
| Maximum Micro Inverters per Branch (4mm² Bus) | 7 |
| Maximum Micro Inverters per Branch (6mm² Bus) | 9 |
| Efficiency | |
| Peak Efficiency | 96.50% |
| MPPT Efficiency | 99.80% |
| Night Power Consumption (mW) | <50 |
| Mechanical Parameters | |
| Ambient Temperature (°C) | -40~+65 |
| Dimensions (W×H×D mm) | 261×180×35.1 |
| Weight (kg) | 3.2 |
| Protection Class | Outdoor-IP67 |
| Cooling Mode | Natural Convection |
| Safety Protection Features | |
| Anti-islanding Protection, Input Reverse Connection Protection, Output Short Circuit Protection, Output Overcurrent Protection, Output Overvoltage Protection, 6000V Surge Protection | |
| Features | |
| Active Power Adjustment, Reactive Power Adjustment, High Voltage Ride Through (Optional), Low Voltage Ride Through (Optional) | High Frequency Transformer Isolation |
| Other | |
| Communication Mode | Sub-1G |
| Isolation Mode | High Frequency Transformer Electrical Isolation |
| Grid Connection Standard | NB/T 32004-2018 |
