Durable Structure: Thickened steel shell with a rust-resistant coating;
Intelligent BMS: Real-time monitoring of voltage, temperature, and system status;
Fast Installation: Plug-and-play terminals for convenient and secure connections;
High Compatibility: Supports multiple communication protocols and inverter brands;
Product Parameters

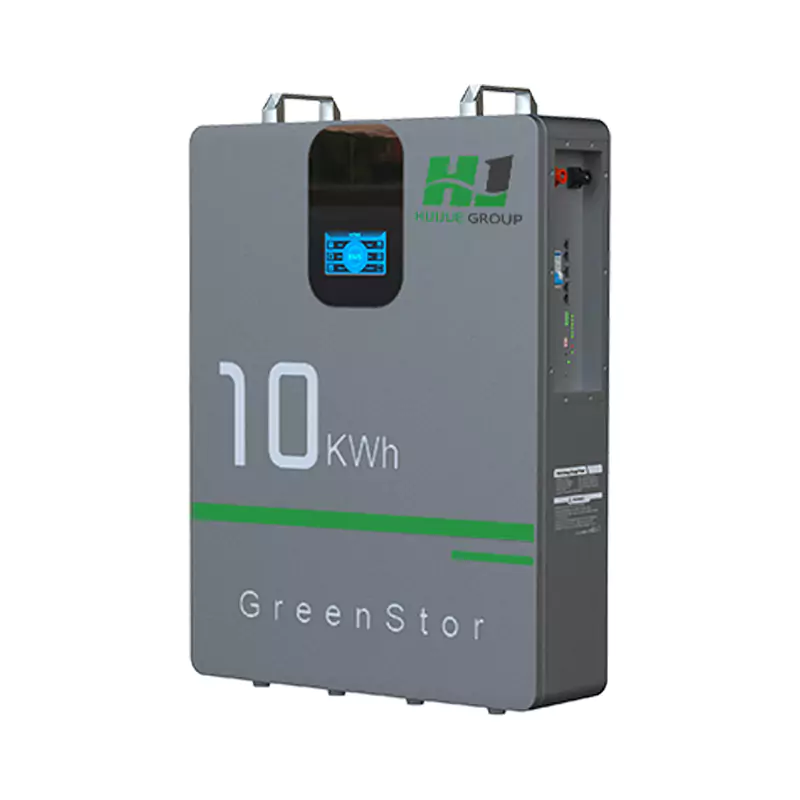

| Product Model | HJ-HBL48202W (B-52) |
| Battery Chemistry | LiFePO4 |
| Max Continuous Discharge Current | 100A |
| Usable Capacity | 10240Wh |
| Rated Voltage | 51.2VDC |
| Voltage Range | 40～58.4V |
| Max Charging Voltage | 58.4V |
| Recommended Charging Current | 40A |
| Cycle Life (Standard Charging/Discharging at Room Temperature) | ≥5000 cycles |
| Communication | Standard RS485, CAN |
| Battery Depth of Discharge (DOD) | ≥95% |
| Protection Features | |
| Charging Current Limit Function | 10A |
| Long Delay Overcurrent Protection (Charge/Discharge) | 105A |
| Instantaneous Discharge Overcurrent Protection | 300A±10A for 1S |
| Cell Temperature Protection | Charge: 0℃~45℃, Discharge: -20℃~60℃ |
| Weight (Net, for reference) | 83kg |
| Dimensions (L×W×H, mm) | 725×550×162±2mm (excluding rack handle) |
