High-Performance Battery System: Equipped with 75 units of 51.2V/314Ah battery packs, the battery system includes a BMS (Battery Management System) that allows real-time monitoring of battery status;
Intelligent Control System: Integrates an EMS (Energy Management System) into the combiner control cabinet and electrical control cabinet, enabling precise control of the energy storage system's charge and discharge process, optimizing energy distribution, and efficient management of the parallel combiner;
Complete Safety Protection: Equipped with a professional fire protection system, including a pipe network fire cabinet, fire control cabinet, fire host, fire cylinders, and other complete equipment. The cylinder size is adapted to the container, and in case of abnormal situations, it can respond quickly and extinguish the fire in time;
Intelligent Monitoring and Management: Features an intelligent monitoring platform with access control and environmental monitoring systems, enabling real-time monitoring of personnel access and environmental parameters such as temperature and humidity within the container, ensuring optimal operating conditions for the equipment;
Efficient Temperature Control System: Adopts a floor-mounted all-in-one air conditioning system with a rated cooling capacity of 20KW, paired with a custom air conditioning duct system to precisely control the temperature inside the container, ensuring the battery operates within the optimal temperature range;
Product Parameters
| Model | HJ-G500-1200F |

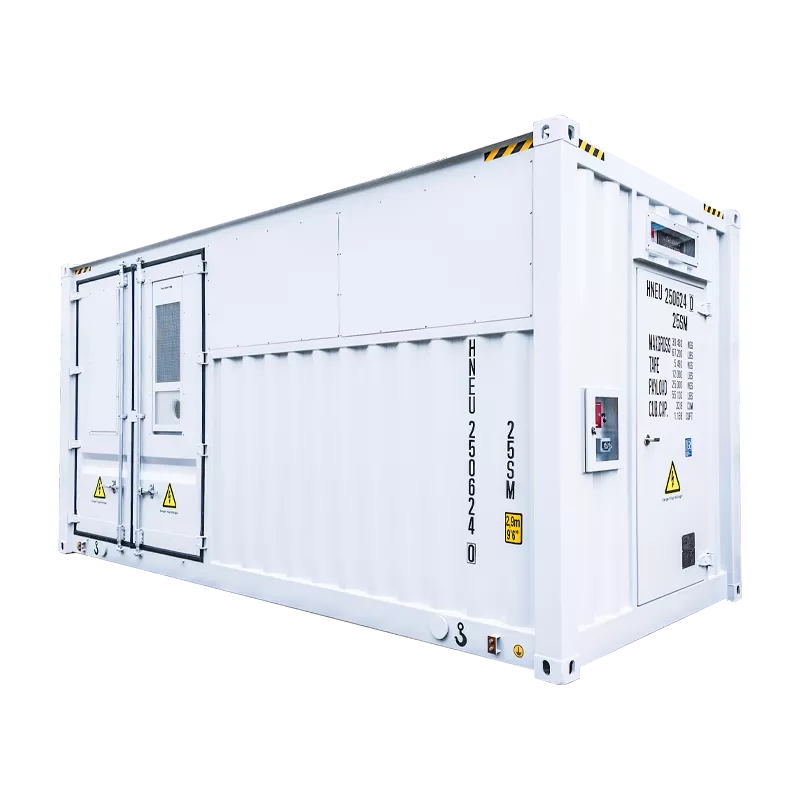

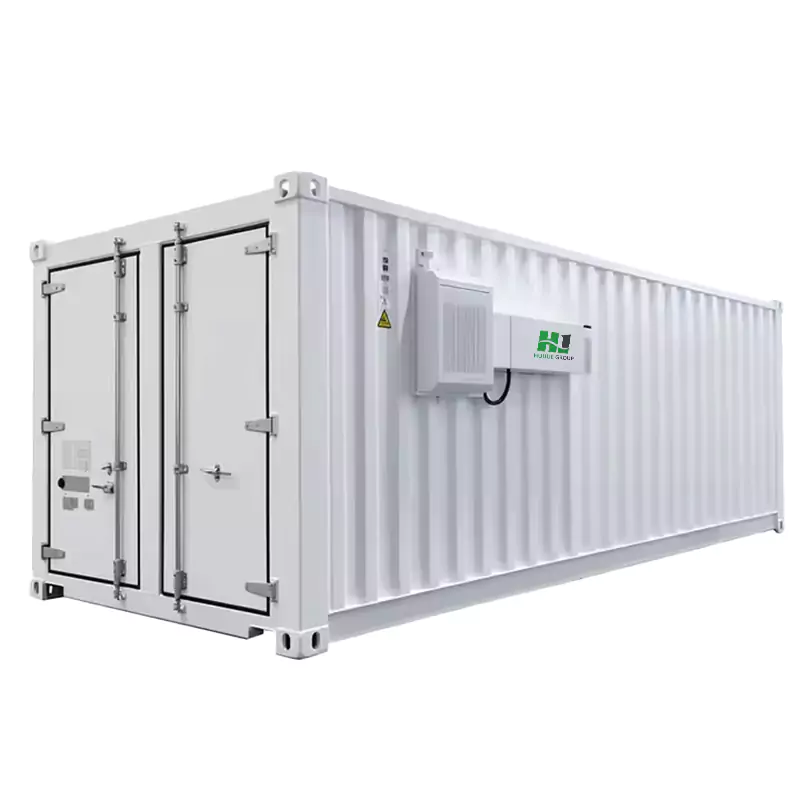

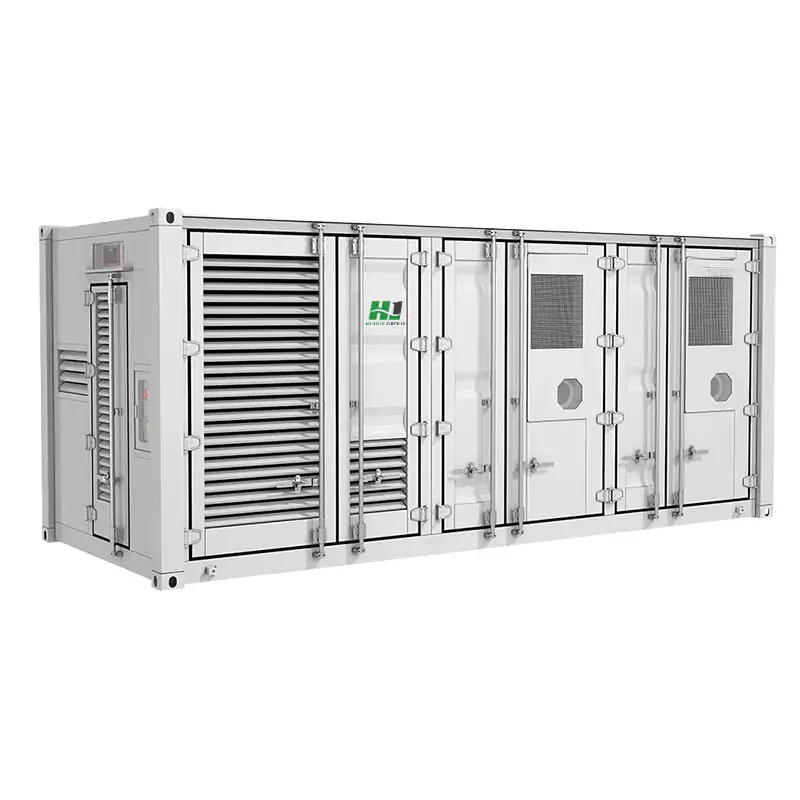

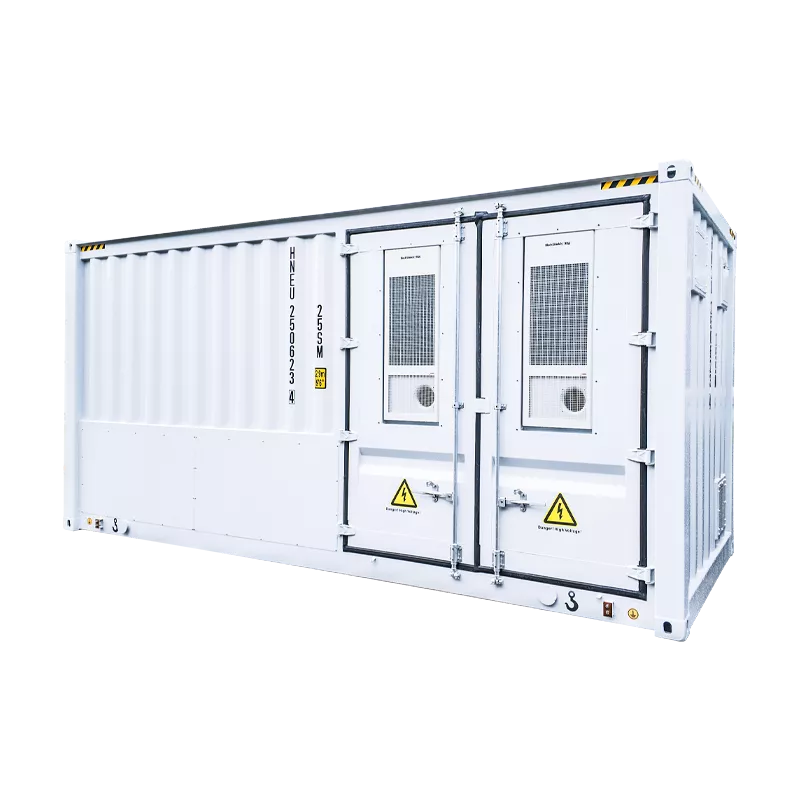

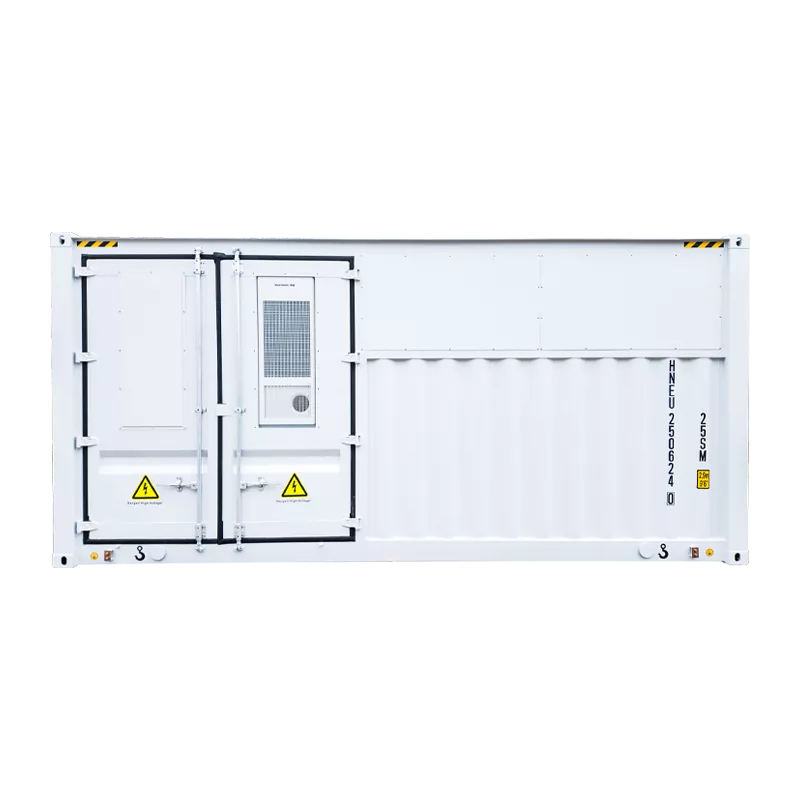

| Container System | 20-foot container (6058*2438*2896mm) |
| Battery System (including BMS) | 75 units of 51.2V/314Ah battery packs, total battery capacity 1205.760KWh |
| PCS | 500KW, off-grid and grid-connected options |
| Combiner Control Cabinet | EMS system, parallel combiner system |
| Electrical Control Cabinet | EMS system, AC distribution system |
| Fire Protection System | Includes pipe network fire cabinet, fire control cabinet, fire host, fire cylinders, venting warning signs, and sound-light alarms |
| Monitoring System | Includes access control system, environmental monitoring system |
| Air Conditioning System | Floor-mounted all-in-one unit, rated cooling capacity 20KW, including air conditioning duct system |
