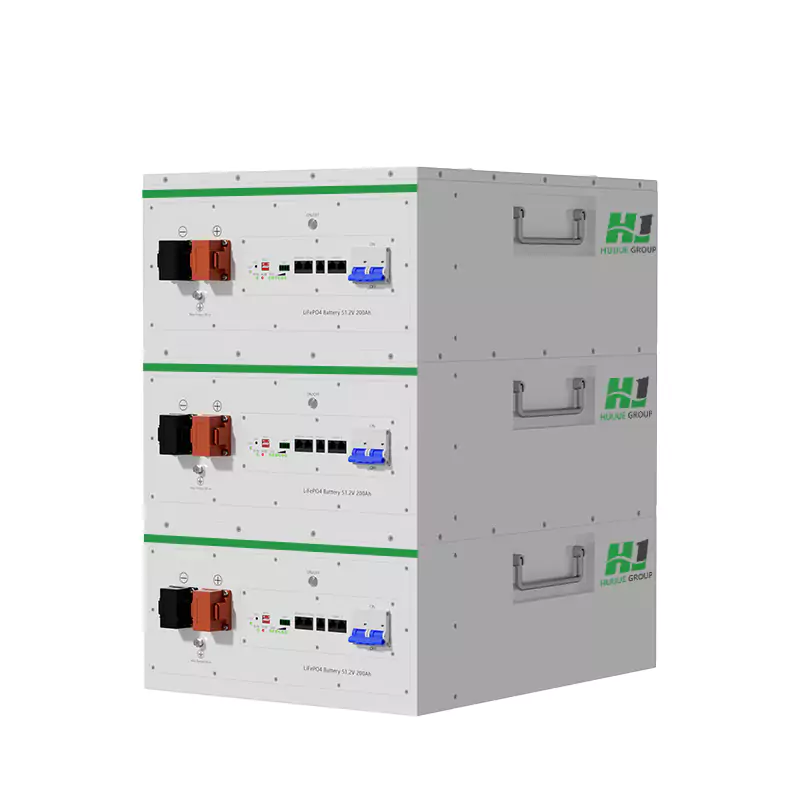

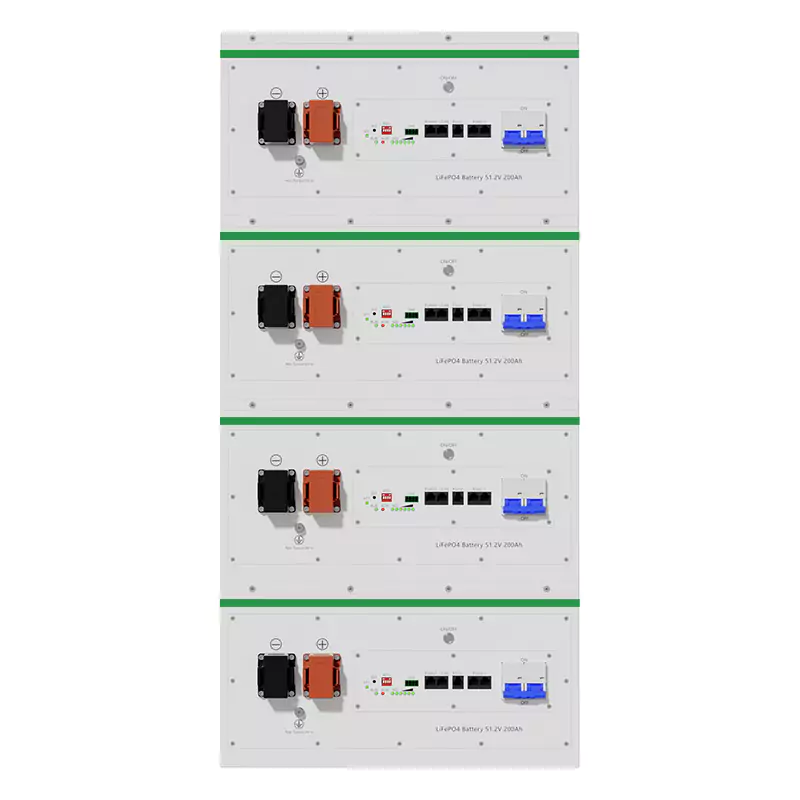

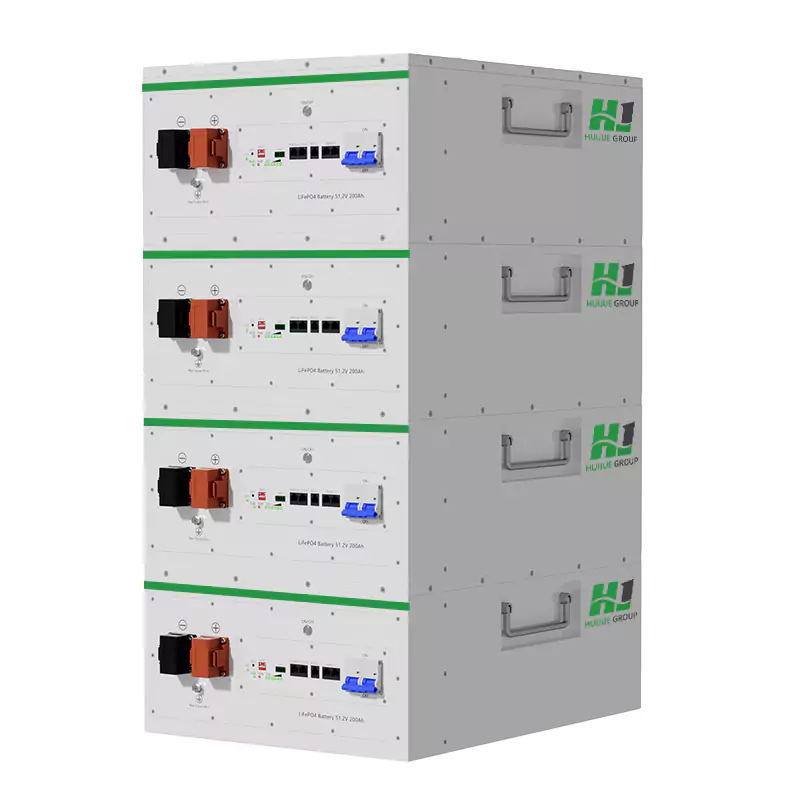

Modular Design: The battery modules are independently designed and can be freely stacked. Users can gradually increase the capacity based on actual needs without making significant upfront investments;
Long Cycle Life: After rigorous testing, the battery can withstand thousands of charge and discharge cycles, providing a long service life and reducing long-term usage costs;
Fast Charging and Discharging: Supports high-rate charging and discharging, enabling quick charging or the release of large amounts of energy in a short period, meeting the rapid response needs of various scenarios;
Low Maintenance Costs: The Battery Management System (BMS) automatically monitors the battery’s status, reducing the need for frequent checks and maintenance, thereby lowering operational costs;
Product Parameters
| Product Model | HJ-HBL48202S (B-16) |
| General Parameters | |
| Voltage | 51.2V |
| Capacity | 200Ah |
| Energy | 10.24KWh |
| Dimensions (L×W×H) | 580×440×227mm |
| Weight | 90Kg |
| Basic Parameters | |
| Service Life (25°C) | 5 years |
| Cycle Time (80% Depth of Discharge, 25°C) | 6000 cycles |
| Storage Time/Temperature | 5 months (25°C), 3 months (35°C), 1 month (45°C) |
| Operating Temperature | -20°C to 60°C, Relative Humidity 60±25% |
| Storage Temperature | 0°C to 45°C, Relative Humidity 60±25% |
| Enclosure Protection Rating | IP21 |
| Electrical Parameters | |
| Rated Voltage | 51.2VDC |
| Max Charging Voltage | 57.6VDC |
| Discharge Cutoff Voltage | 43.2VDC |
| Max Charging and Discharging Current | 100A/150A |
