Advanced System Architecture: Adopts a three-layer control architecture — the top layer as the Energy Management System (EMS), the middle layer as the Central Control System, and the bottom layer as the Equipment Layer — forming an autonomous system capable of self-control, protection, and management;
High-Efficiency and Reliable Converter: Features a 500kW integrated energy storage converter design that supports simultaneous connection of loads, batteries, grids, diesel generators, and photovoltaic sources. It offers multiple operating modes and flexible battery compatibility, with a maximum conversion efficiency of up to 98.3%;
Intelligent Monitoring and Management: Equipped with a dynamic environment monitoring system that uses various sensors to centrally monitor power equipment and environmental variables within the container, enabling real-time operation monitoring, anomaly prediction, and online intelligent fault diagnostics;

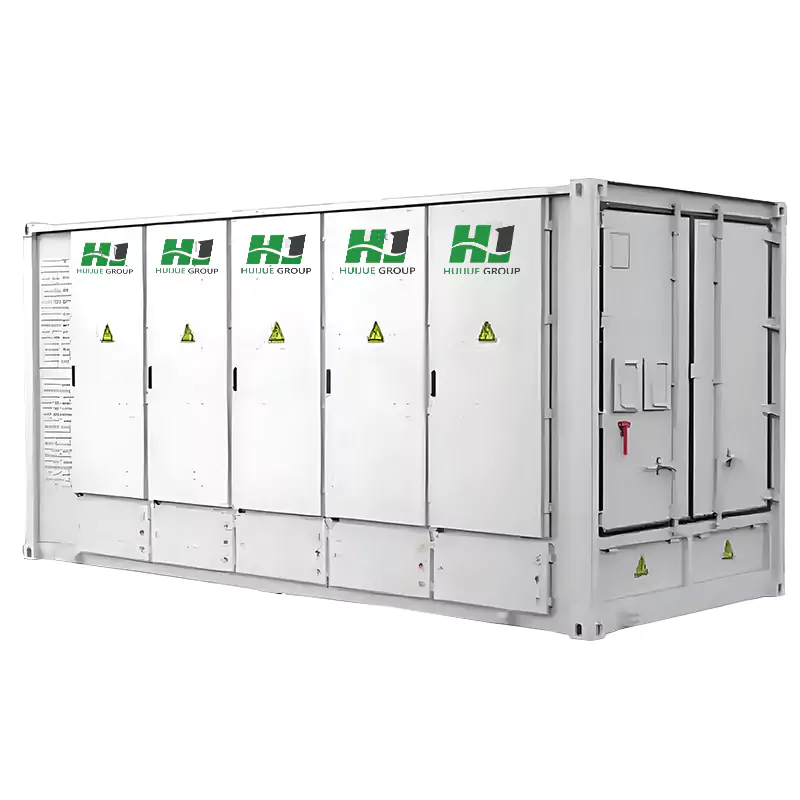

Optimized Container Design: Built with a standard 20-foot container featuring excellent corrosion, fire, water, dust (sandproof), shock, and UV resistance. The internal layout is optimized for placing the energy storage converter, battery racks, fire protection, air conditioning, and lighting systems, ensuring convenient transportation, installation, and maintenance;
Product Parameters
| Model | HJ-G500-1000F/HJB-G500-1000F |

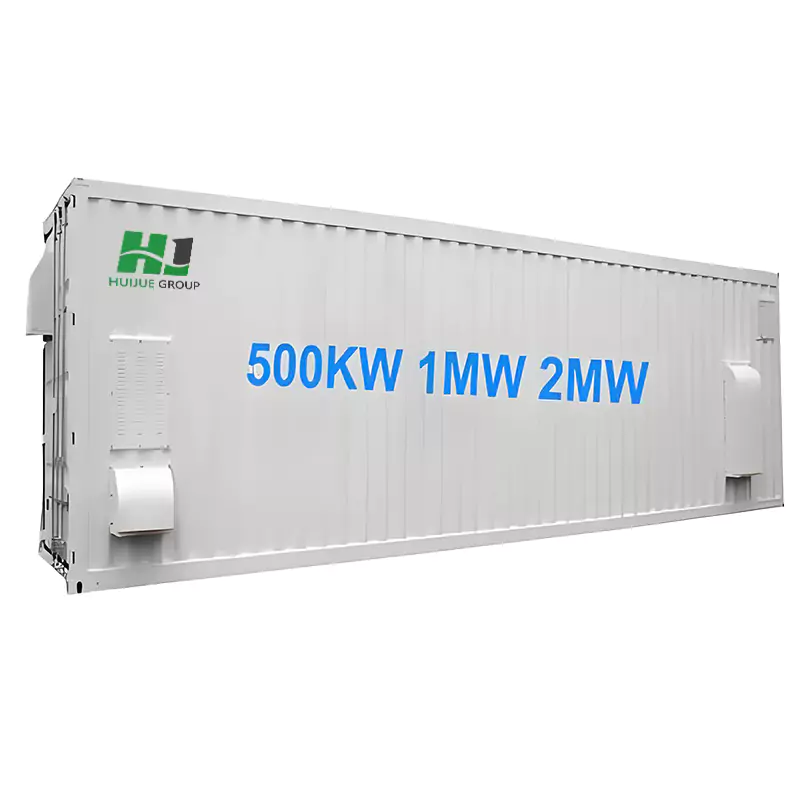

| Container System | 20-foot container (6058*2438*2896mm) |

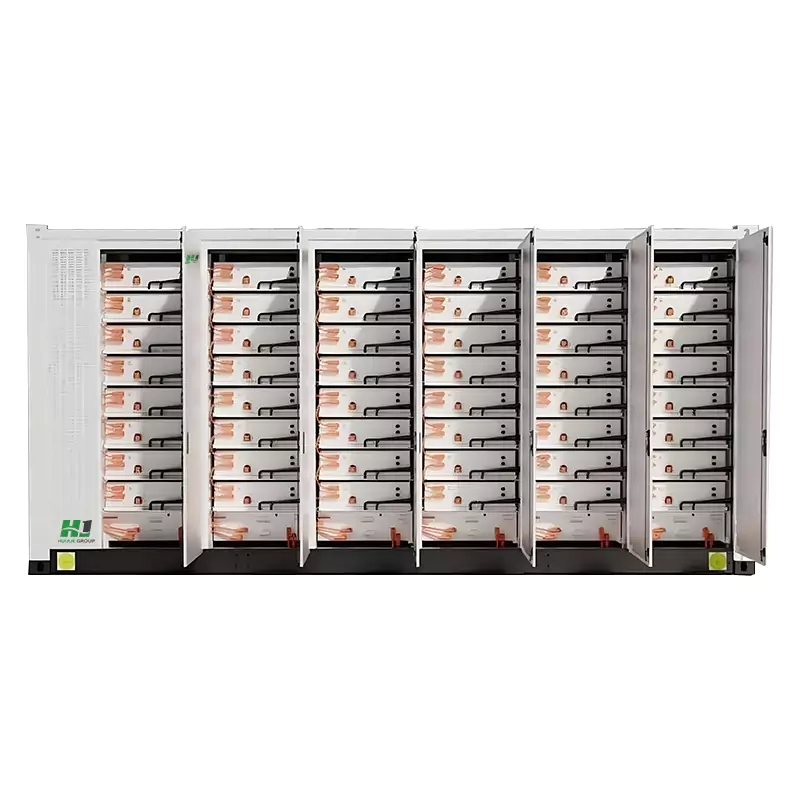

| Battery System (including BMS) | 78 units of 51.2V/280Ah lithium battery/semi-solid battery packs, total battery capacity 1118.208KWh |
| Power | 500KW, grid-connected or off-grid optional |
| Convergence Control Cabinet | EMS system, parallel convergence system |
| Electrical Control Cabinet | EMS system, AC distribution system |
| Fire Protection System | Includes pipeline fire protection cabinet, fire control cabinet, fire host, fire extinguishing gas cylinder, “Do not enter during venting” indicator sign, sound and light alarm |
| Monitoring System | Includes access control system, environmental monitoring system |
| Air Conditioning System | Floor-mounted all-in-one unit, rated cooling capacity of 20KW, includes air duct system |
