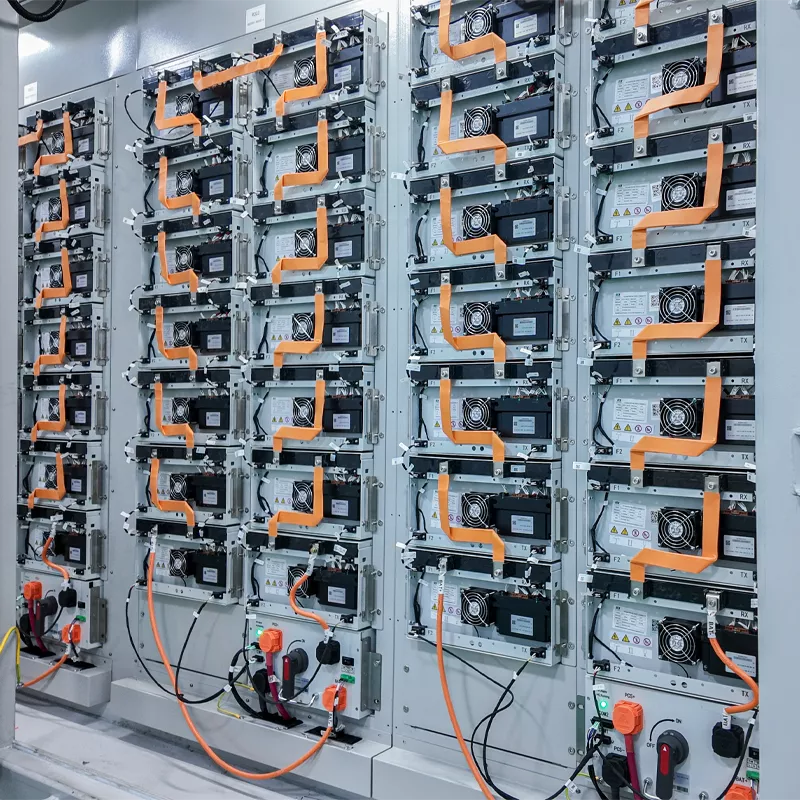

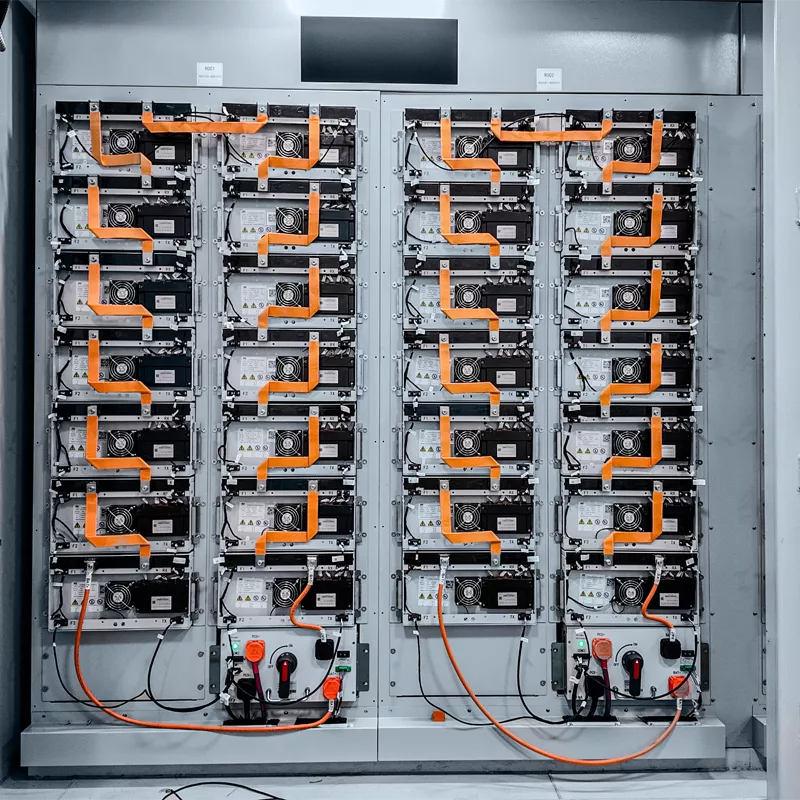

High-Efficiency Air-Cooled Battery Pack: Configured with 1P16S series-parallel cells, rated at 51.2V/280Ah. The pack integrates a subordinate BMS control system, fan-based cooling, power and signal connection cables, and supports a charge/discharge rate of up to 0.5C;
High-Performance PCS (Power Conversion System): Rated AC power of 500KW, with AC output voltage of 380/400V and output frequency of 50/60Hz. The DC input voltage range is DC 600–900V. The PCS adopts a string-type architecture with five DC input channels (125KW × 5). The grid-connected design enables seamless integration with the grid, achieving efficient bidirectional power conversion;
Convenient Management Software: Equipped with monitoring, coordinated control, and energy management functions. Users can view real-time operating status, key parameters, and historical data of the energy storage system through the software, enabling remote operation, management decisions, and intelligent system maintenance;

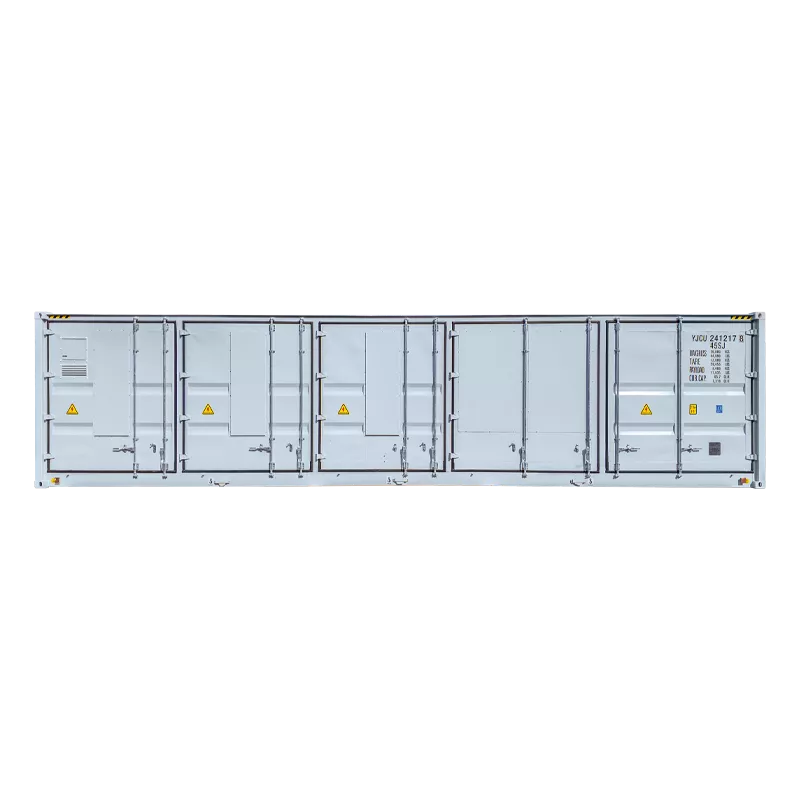

Integrated Energy Storage Container: Designed as a 40-foot non-walk-in container with a highly integrated and modular internal structure. This design facilitates transportation, installation, and maintenance, significantly reducing system construction and operation costs while enhancing overall system stability and reliability;
Product Parameters
| Model | HJ-G1000-2000F/HJB-G1000-2000F |
| Name | Specifications |
| Single Energy Storage Battery Compartment (2007.04KWh) | |
| Energy Storage Container | 40-foot non-walk-in container (12192*2438*2896mm), including container body, battery rack, battery tray, lighting, etc. |
| Air-Cooled Battery Pack | Series/Parallel Number: 1P16S, Rated Power/Capacity: 51.2V/280Ah, air-cooled lithium battery/semi-solid battery pack, including BMS subordinate control system, fan cooling system, power, signal connection cables, rated charge/discharge rate: 0.5C |
| Air Conditioning System | Rated Cooling Capacity: 9KW, door-mounted all-in-one unit, includes heating and dehumidifying functions |
| Fire Protection System | 40-foot container-level fire protection system, including gas detection device, fire alarm system, FM-200 with pipeline fire extinguishing system |
| AC Distribution Cabinet | Container auxiliary power supply system |
| Energy Storage Inverter | |
| Energy Management System | |
| Auxiliary Materials | |
| Auxiliary Materials | Cable auxiliary materials, including the entire set of internal power cables, communication cables, etc., for the container energy storage system |
