Highly Integrated: Fast power response, supports multiple modes such as virtual power plants, grid-connected, and off-grid;
All-in-One Design: All-in-one design greatly reduces transportation, on-site installation time, and costs;
Intelligent Operation and Maintenance: Adopts intelligent installation and operation, supports node self-adaptation, fault indication, etc., reducing on-site and maintenance workload by 70%;
Flexible Parallel Operation: Standardized interfaces allow for multi-unit parallel connection, easy expansion, and batch manufacturing processes are more easily guaranteed;
Isolated-Free Design: Isolated-free design improves system efficiency, independent single-cluster batteries, no circulating current, and reduces energy loss;
Intelligent Management: Local/remote upgrades, supports broadcast-style program upgrades, improving efficiency by more than 90% compared to traditional point-to-point upgrades.
Product Parameters

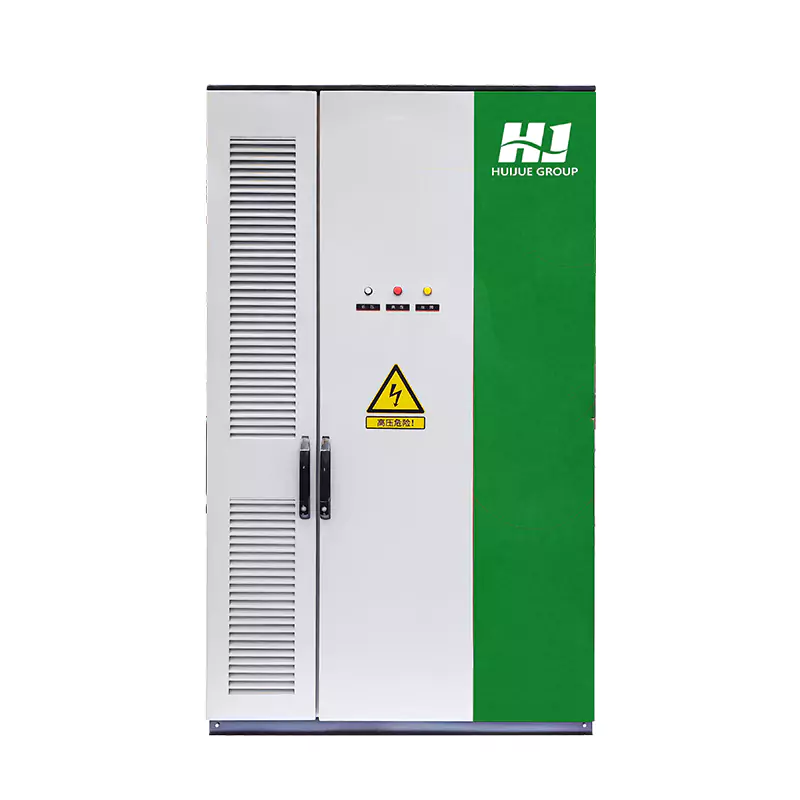

| Product Model:HJ-G150-372L/HJB-G150-372L (150KW/372KWh) | |||
| DC Parameters | AC Parameters | ||
| Battery Type | Lithium Iron Phosphate / Semi-Solid | Rated AC Power | 150KW |
| Cell Capacity | 3.2V/280Ah | Maximum AC Power | 165KW |
| System Battery Configuration | 1P416S | Total Harmonic Distortion (THD) of Cable | <3% at rated power |
| Rated Battery Capacity | 372KWh | Rated AC Voltage | 380V AC |
| Battery Voltage Range | DC1165-1500V | AC Connection Mode | 3P+N+PE |
| Charge/Discharge Rate | 0.5C | Rated Grid Frequency | 50/60Hz |
| Depth of Discharge | 80% | Power Factor Range | 0.98 |
| Battery Cooling Method | Liquid Cooling | Off-Grid Operation | Supported |
| System Parameters | |||
| Dimensions | 1400*1300*2350mm (reference) | Temperature Control Method | Liquid Cooling Unit |
| Protection Rating | IP55 | Fire Protection Solution | Aerosol, FM-200 |
| System Communication Protocol | Standard: Modbus | Communication Interface | RS485, RJ45 |
