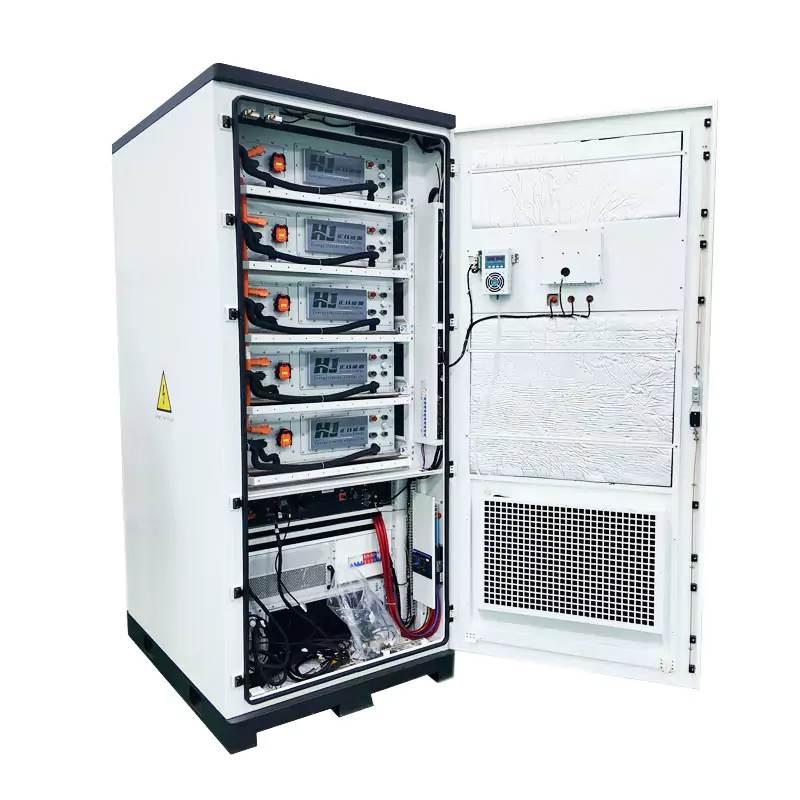

Highly Integrated: The system is productized, integrating energy storage batteries, PCS, distribution, temperature control, fire protection, water immersion door magnets, and monitoring communication, providing comprehensive control over system operation and risks;
Excellent Protection: Patented outdoor cabinet protection design, optimized heat dissipation channels, and protection against dust and rain; front and rear doors for maintenance, facilitating the parallel arrangement of multiple systems on-site, reducing the footprint;
Space Saving: Uses a door-mounted embedded integrated air conditioning system that does not occupy cabinet space, increasing usable space in the cabinet; the top structure integrity is better, and the waterproof performance is enhanced;
Flexible Parallel Operation: Equipped with patented virtual synchronous machine technology, enabling multiple units to be freely paralleled without communication lines and supporting both grid-connected and off-grid switching functions;
Versatile Functions: Standardized structural design with menu-based functional configuration, allowing for the selection of photovoltaic charging modules, grid-connected/off-grid switching modules, power frequency transformers, and other components for microgrid applications, integrated into a solar energy storage all-in-one system cabinet;
Intelligent Management: The local control screen enables system operation monitoring, energy management strategy formulation, remote device upgrades, and other diverse functions.
Product Parameters
| Technical Parameters | HJ-G55-233L/HJB-G55-233L | HJ-G110-233L/HJB-G110-233L |
| DC Side Parameters | ||
| Battery Type | LFP 3.2V/280Ah; SSB 3.2V/280Ah | |
| Configuration | 1P260S | |
| Rated Energy | 233kWh | |
| Voltage Range | 650-949V | |
| Cycle Count | >7000 cycles @ 70% EOL, 25°C | |
| Communication Interface | RS485, CAN, Ethernet | |
| Standards Compliance | GB/T 36276, GB/T 34131 | |
| AC Parameters | ||
| Rated Output Power | 55kW 110kW | |
| Rated Grid Voltage | 400V, Three-phase five-wire | |
| Allowable Grid Voltage Range | 340~460V, ± 15% | |
| Rated Current | 79A 158A | |
| Power Factor | 1 (leading) ~ 1 (lagging) | |
| Rated Grid Frequency | 50 ±5Hz | |
| Overload Capability | 110%: continuous operation; 120%: no less than 1 minute | |
| Total Current Waveform Distortion (THDi) | <1.5% (100% PN) <5% (≥20% PN) | |
| Off-Grid Operation Parameters | ||
| Independent Inverter Rated Output Voltage | 400V (340~460V) | |
| Independent Inverter Voltage Unbalance | <2%, short-term not exceeding 4% | |
| Grid-Disconnect Switch Time | ≤10ms | |
| STS Specifications | FSS-M200R1 | |
| DC Side Parameters | ||
| DC Operating Voltage Range | 650V~1000V | |
| Full Power Operating Range | 650V-950V | |
| Maximum DC Current | 93A 186A | |
| Basic Parameters | ||
| Protection Functions | High/low voltage ride-through, islanding protection, AC overcurrent, AC short-circuit, AC overvoltage/under-voltage, AC line sequence error | |
| Maximum Efficiency | 99.00% | |
| Protection Rating | IP20 | |
| Operating Temperature Range | -30℃~70℃ (>50°C derating) | |
| Relative Humidity | 0~95% (no condensation) | |
| Cooling Method | Air Cooling | |
| Dimensions (Length x Width x Height) | 715mm x 500mm x 190mm | |
| Weight | ≤66kg ±0.5kg | |
| Noise Index | <80dB | |
| Maximum Operating Altitude | 3000m (>3000m derating) | |
| Communication Method | RS485, CAN, Ethernet | |
| Standards Compliance | GB/T 34120, GB/T 34133, EMC | |
| System Parameters | ||
| Dimensions (Height x Depth x Width) | 2130*1350*1373mm | |
| Weight | ≈3.4T | |
| Protection Rating | IP54 | |
| Corrosion Protection Rating | C4/C5 | |
| Cooling Method | Liquid Cooling | |
| Operating Temperature Range | -30℃~50℃ (>45℃ derating) | |
| Operating Humidity Range | 0~95% (no condensation) | |
| Maximum Operating Altitude | 3000m (>2000m derating) | |
| Fire Protection Method | Aerosol + Pack-Level Immersion + Active Pre-Warning | |
| External Communication Protocol | Modbus RTU, CAN2.0, Modbus TCP | |
