Advanced System Architecture：Adopts a three-layer control structure — the top layer as the Energy Management System (EMS), the middle layer as the Central Control System (CCS), and the bottom layer as the Equipment Layer — forming an autonomous system capable of self-control, protection, and intelligent management;
Outstanding Battery Performance：Each module is composed of 3.2V/90Ah (1C) cells in a 2P16S configuration, with 14 battery cabinets connected in series to form one battery cluster. The nominal capacity reaches 129.024kWh, with a cycle life of up to 5000 cycles (1C charge / 1C discharge) and capacity retention ≥80%;
Intelligent Monitoring and Management：Equipped with a dynamic environment monitoring system that integrates multiple sensors to track power equipment and environmental variables in real time, enabling operational status monitoring, anomaly prediction, and intelligent online fault diagnosis;
Comprehensive Fire Protection System：The container is equipped with a fully automatic perfluorohexanone fire suppression system, offering fast response and high extinguishing efficiency without causing damage to electrical equipment;

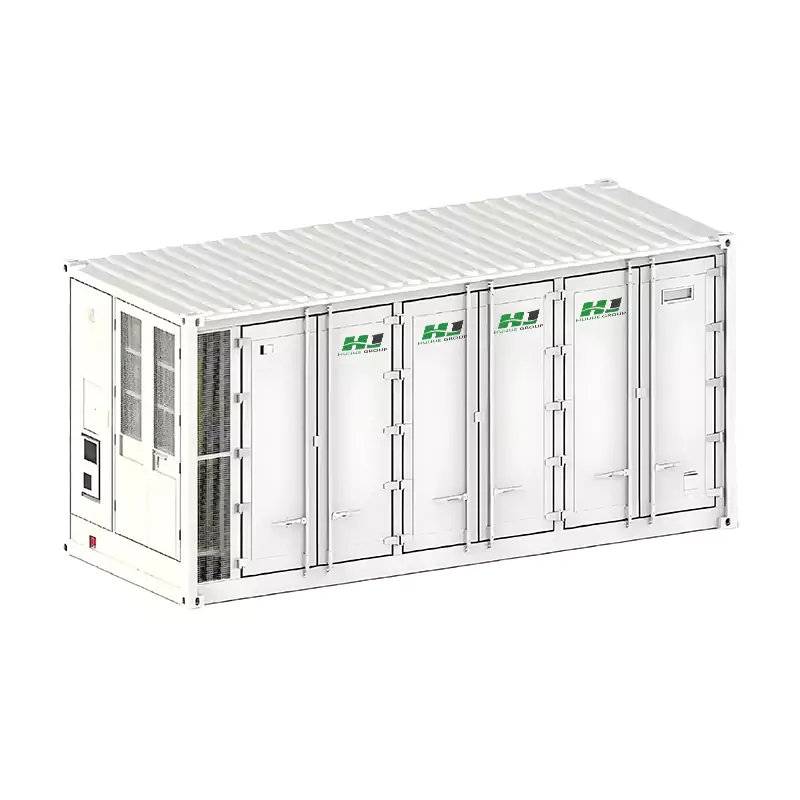

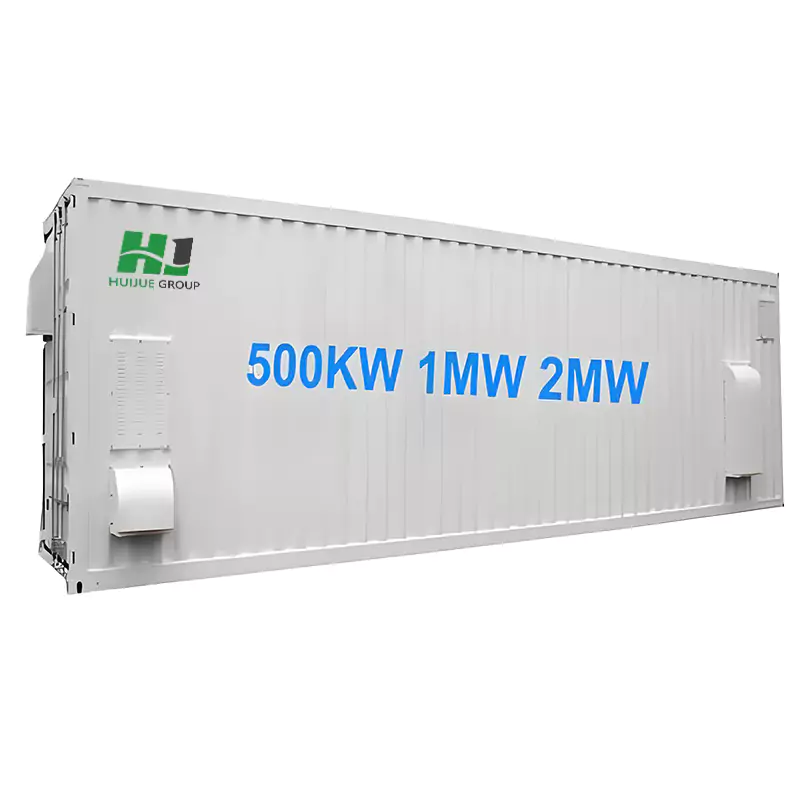

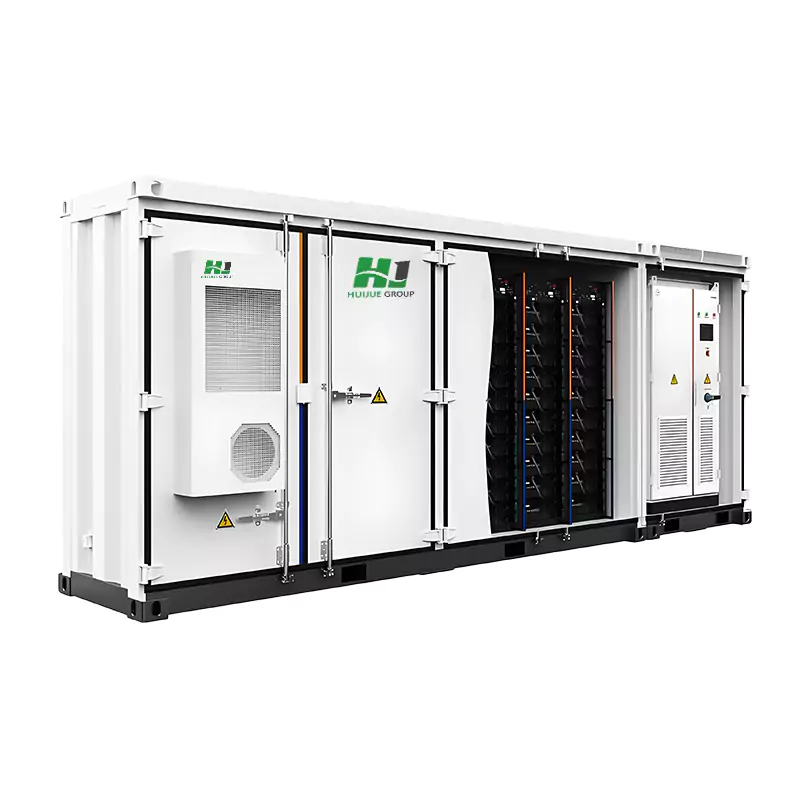

Optimized Container Design：Built with a 20-foot standard container featuring excellent corrosion resistance, fireproofing, waterproofing, dustproofing (including sand protection), shock resistance, and UV protection, ensuring system reliability for up to 25 years without degradation from environmental exposure.
Product Parameters
| Model | HJ-G1000-1000F / HJB-G1000-1000F |
| AC Side Parameters | |
| Rated AC Power | 500kVA |
| Connection Type | Three-phase, three-wire |
| AC Overload Capacity | 550kVA |
| Permissible Grid Voltage | 380/400Vac (-15%~+15%) |
| Permissible Grid Frequency | 50/60Hz (-2.5~+2.5) |
| Total Harmonic Distortion (THD) | ≤3% |
| Power Factor | 0.99 / -1~1 |
| DC Side Parameters | |
| Maximum DC Power | 550kW |
| DC Operating Voltage Range | 600~900Vdc |
| Number of DC Inputs | 1 / 2 / 4 / 8 |
| Maximum DC Current per Input | 880 / 440 / 220 / 110A |
| System Parameters | |
| Maximum Conversion Efficiency | 98.30% |
| Permissible Ambient Temperature | -20~60℃ (Derated above 50℃) |
| Relative Humidity | 0~95%, Non-condensing |
| Cooling Method | Air Cooling |
| Altitude | ≤3000m (Derated above 3000m) |
| Battery System | |
| Cell Parameters | |
| Battery Type | Lithium Iron Phosphate / Semi-solid Battery |
| Battery Model | LF90 / SSB 3.2V / 280Ah |
| Dimensions (L×W×H) | 130.3 × 36.3 × 520.0 mm |
| Factory Internal Resistance | ≤0.5mΩ |
| Rated Capacity | ≥90Ah |
| Rated Voltage | 3.2V |
| Energy | ≥288Wh |
| Charge Cut-off Voltage (CC/CV Mode) | 3.6V |
| Battery Module Parameters | |
| Configuration | 2P16S |
| Rated Capacity | 180Ah |
| Rated Voltage | DC51.2V |
| Operating Voltage Range | DC44.8–57.6V |
| Rated Energy | 9.216kWh |
| Dimensions (H×W×D) | 230 × 482 × 760 mm |
| Max Continuous Charge Current | 180A |
| Max Continuous Discharge Current | 180A |
| Discharge Temperature | -20℃ ~ 55℃ |
| Charge Temperature | 0℃ ~ 50℃ |
| Battery Cluster Parameters | |
| Cell Configuration | 2P224S |
| Rated Capacity | 180Ah |
| Rated Energy | 129.024kWh |
| Rated Voltage | 716.8V |
| Operating Voltage | 627.2~806.4V |
| Charging Voltage | 716.8V |
| Standard Charge | 1C, 180A |
| Max Continuous Charge Current | 180A |
| Standard Discharge | 180A |
| Max Continuous Discharge Current | 1C, 180A |
| Operating Temperature | Charge: 0℃~55℃ / Discharge: -20℃~55℃ |
| Storage Temperature | -20℃~60℃ |
| Communication Interface | RS485 / RS232 |
| Design Life | 10 years |
| Cycle Life | ≥5000 cycles (1C charge, 1C discharge), Capacity retention ≥80% |
