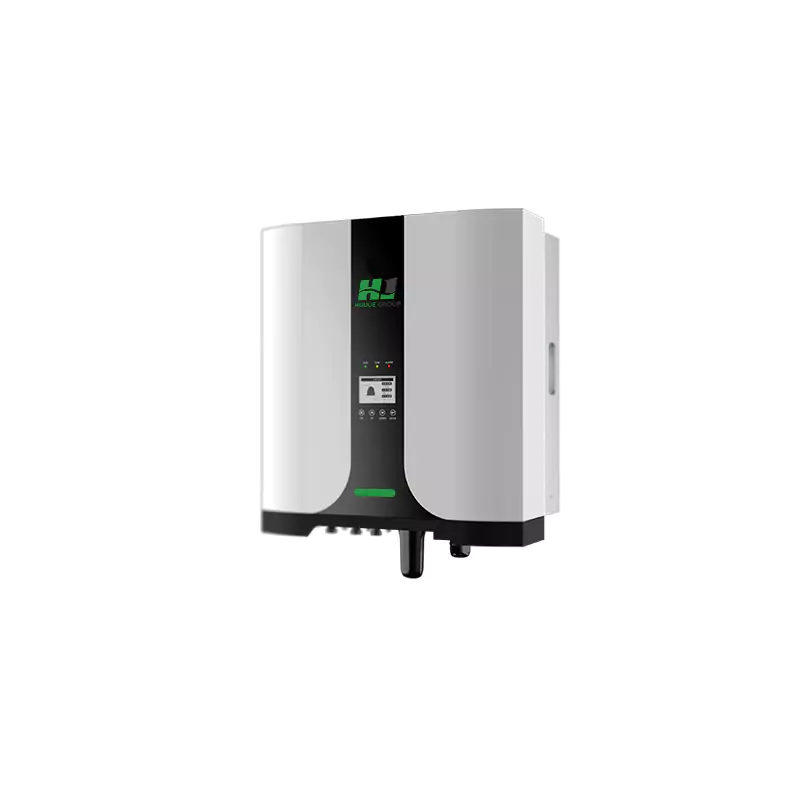

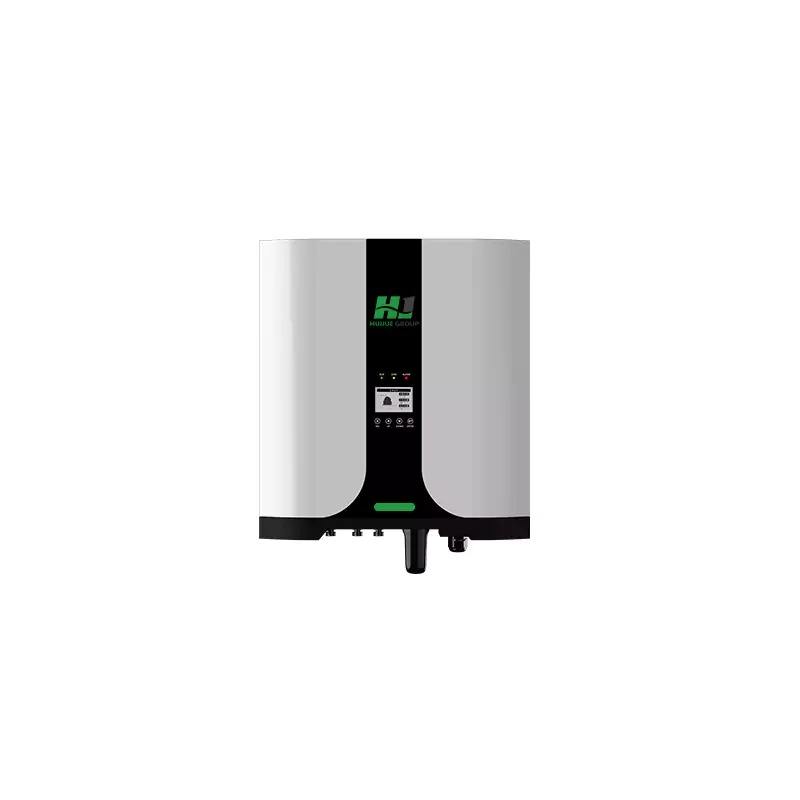

Photovoltaic and Energy Storage System: Integrated photovoltaic and energy storage system modem, supports multiple batteries, and is integrated with the EMS smart energy management system;
Smart Switching: UPS function, supports three-phase imbalance, with grid connection/disconnection in less than 10ms;
Wide Voltage Input Range: Wide photovoltaic voltage input range of 180V-900V. Wide battery voltage range of 180V-700V;
Safe and Reliable: IP65 protection rating, aluminum casing, built-in lightning protection, and high-precision leakage protection;
Product Parameters
| Product Model | HJ-IH10-W500T (A-10) | HJ-IH12-W500T (A-11) | HJ-IH15-W500T (A-12) | HJ-IH17-W500T (A-13) | HJ-IH20-W500T (A-15) |
|---|---|---|---|---|---|
| Photovoltaic Input Data | |||||
| Maximum Input Power | 15000W | 18000W | 22500W | 25500W | 30000W |
| Maximum Input Voltage | 1000V | 1000V | 1000V | 1000V | 1000V |
| MPPT Operating Voltage Range | 180-900V | 180-900V | 180-900V | 180-900V | 180-900V |
| Start-up Voltage | 120V | 120V | 120V | 120V | 120V |
| Maximum Input Current | 15A/15A | 15A/15A | 15A/28A | 28A/28A | 28A/28A |
| Maximum Short-circuit Current | 18A/18A | 18A/18A | 18A/32A | 32A/32A | 32A/32A |
| Number of MPPT Trackers | 2 | 2 | 2 | 2 | 2 |
| Number of Strings per MPPT | 1/1 | 1/1 | 1/2 | 2/2 | 2/2 |
| Battery Input Data | |||||
| Battery Voltage Range | 180-550V | 180-700V | 180-700V | 180-700V | 180-700V |
| Maximum Charge/Discharge Current | 25A/30A | 50A/50A | |||
| Maximum Charge/Discharge Power | 10000W/10000W | 12kW/12kW | 15kW/15kW | 17kW/17kW | 20kW/20kW |
| Battery Type | Li-ion/Lead-acid | Li-ion/Lead-acid | Li-ion/Lead-acid | Li-ion/Lead-acid | Li-ion/Lead-acid |
| AC Output Data (Grid-connected) | |||||
| Rated Output Power | 10000W | 12000W | 15000W | 17000W | 20000W |
| Maximum Apparent Power | 10000VA | 12000VA | 15000VA | 17000VA | 20000VA |
| Rated Output Voltage | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE |
| Rated Output Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Maximum Output Current | 15A | 18A | 22A | 25A | 31A |
| Power Factor | ~1 (0.8 lead to 0.8 lag can be set) | ~1 (0.8 lead to 0.8 lag can be set) | ~1 (0.8 lead to 0.8 lag can be set) | ~1 (0.8 lead to 0.8 lag can be set) | ~1 (0.8 lead to 0.8 lag can be set) |
| Total Harmonic Distortion | <3% | <3% | <3% | <3% | <3% |
| AC Output Data (Backup) | |||||
| Rated Output Power | 10000W | 12000W | 15000W | 17000W | 20000W |
| Maximum Apparent Power | 10000VA | 12000VA | 15000VA | 17000VA | 20000VA |
| Rated Output Voltage | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE | 380V/400V, 3L/N/PE |
| Rated Output Frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
| Maximum Output Current | 15A | 15A | 15A | 15A | 15A |
| Efficiency | |||||
| Maximum Efficiency | 98.20% | 98.40% | |||
| European Efficiency | 97.30% | 97.50% | |||
| Protection Functions | |||||
| AC Overcurrent Protection | Integrated | Integrated | Integrated | Integrated | Integrated |
| Ground Fault Protection | Integrated | Integrated | Integrated | Integrated | Integrated |
| Power Network Monitoring | Integrated | Integrated | Integrated | Integrated | Integrated |
| Residual Current Monitoring | Integrated | Integrated | Integrated | Integrated | Integrated |
| Basic Parameters | |||||
| Operating Temperature Range | -25°C to 60°C (>45°C Derating) | -25°C to 60°C (>45°C Derating) | -25°C to 60°C (>45°C Derating) | -25°C to 60°C (>45°C Derating) | -25°C to 60°C (>45°C Derating) |
| Altitude | ≤4000m | ≤4000m | ≤4000m | ≤4000m | ≤4000m |
| Noise Emission | <40dB | <40dB | <40dB | <40dB | <40dB |
| Topology | Transformerless Isolation | Transformerless Isolation | Transformerless Isolation | Transformerless Isolation | Transformerless Isolation |
| Cooling Method | Natural Convection | Intelligent Fan | Intelligent Fan | Intelligent Fan | Intelligent Fan |
| Protection Level | IP65 | IP65 | IP65 | IP65 | IP65 |
| Relative Humidity | 0-90% | 0-90% | 0-90% | 0-90% | 0-90% |
| DC Connector Type | MC/Amphenol Phoenix | MC4/Anderson Powerpole / Plug-in Connector | |||
| AC Connector Type | Plug-in Connector | Plug-in Connector | Plug-in Connector | Plug-in Connector | Plug-in Connector |
| Display | LCD | LCD | LCD | LCD | LCD |
| Cloud Communication | RS485 (WIFI/4G/GPRS optional) | RS485 (WIFI/4G/GPRS optional) | RS485 (WIFI/4G/GPRS optional) | RS485 (WIFI/4G/GPRS optional) | RS485 (WIFI/4G/GPRS optional) |
| BMS Communication Mode | CAN | CAN | CAN | CAN | CAN |
| Communication with Meter | RS485 | RS485 | RS485 | RS485 | RS485 |
| Installation | Wall-mount | Wall-mount | Wall-mount | Wall-mount | Wall-mount |
| No-load Power Consumption | <10W | <10W | <10W | <10W | <10W |
| Dimensions (W×D×H) | 505×220×570mm | 500×220×630mm | |||
| Weight | 29kg | 34kg | 35kg | ||
| Certification | |||||
| Safety Standards | IEC62109-1-2 | IEC62109-1-2 | IEC62109-1-2 | IEC62109-1-2 | IEC62109-1-2 |
| Electromagnetic Compatibility Standards | EN IEC 61000-6-1, -3 | ||||
| Grid-connection Standards | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 | AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018 |
