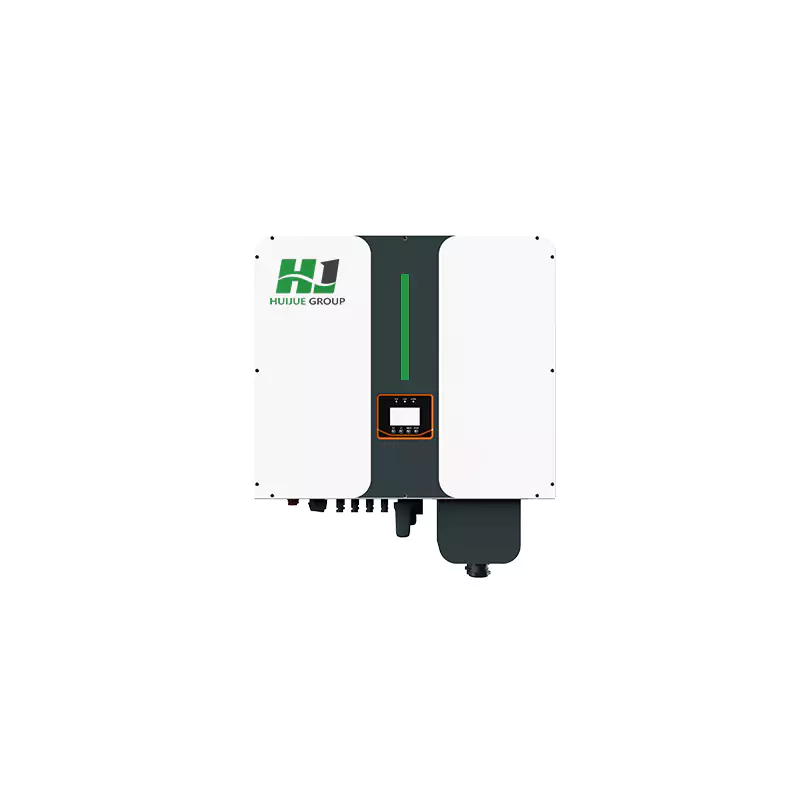

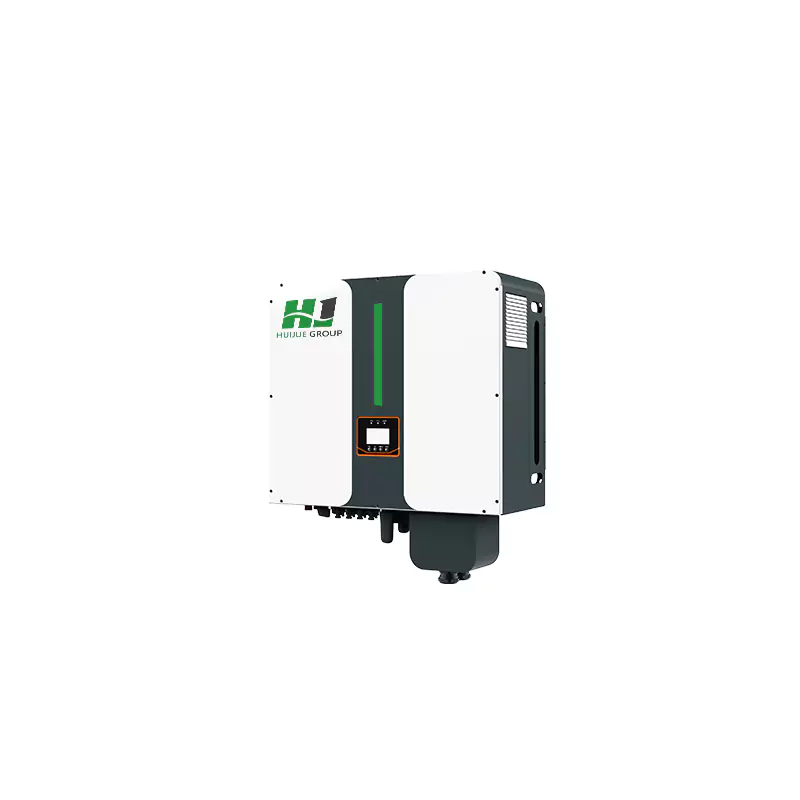

30kW-60kW Three-Phase Hybrid Inverter

This inverter is suitable for medium to large residential systems and smart switches. It integrates photovoltaic energy storage control, with built-in EMS smart management, and supports multiple battery types.

Product Features

Photovoltaic and Energy Storage System: Integrated photovoltaic and energy storage system modem, supports multiple batteries, and is integrated with the EMS smart energy management system;
Smart Switching: UPS function, supports three-phase imbalance, with grid connection/disconnection in less than 10ms;
Wide Voltage Input Range: Wide photovoltaic voltage input range of 180V-900V. Wide battery voltage range of 180V-700V;
Safe and Reliable: IP65 protection rating, aluminum casing, built-in lightning protection, and high-precision leakage protection;

Product Parameters

Product Model	HJ-IH30-W500T (A-16)	HJ-IH30-W500T (A-20)	HJ-IH40-W500T (A-17)	HJ-IH40-W500T (A-21)	HJ-IH50-W500T (A-18)	HJ-IH60-W500T (A-19)
Photovoltaic Input Data
Maximum Input Power	45000W	45000W	60000W	60000W	75000W	90000W
Maximum Input Voltage	1000V	1000V	1000V	1000V	1000V	1000V
MPPT Operating Voltage Range	180-900V	180-900V	180-900V	180-900V	180-900V	180-900V
Start-up Voltage	180V	180V	180V	180V	180V	180V
Maximum Input Current	36A/36A/36A	36A/36A/36A	36A/36A/36A/36A	36A/36A/36A/36A	36A/36A/36A/36A	36A/36A/36A/36A
Maximum Short-circuit Current	42A/42A/42A	42A/42A/42A	42A/42A/42A/42A	42A/42A/42A/42A	42A/42A/42A/42A	42A/42A/42A/42A
Number of MPPT Trackers	3	3	4	4	4	4
Number of Strings per MPPT	2/2/2	2/2/2	2/2/2/2	2/2/2/2	2/2/2/2	2/2/2/2
Battery Input Data
Battery Voltage Range	220-800V	220-800V	220-800V	220-800V	220-800V	220-800V
Maximum Charge/Discharge Current	100A/100A	100A/100A	100A/100A	100A/100A	100A/100A	100A/100A
Maximum Charge/Discharge Power	30000W/30000W	30000W/30000W	40000W/40000W	40000W/40000W	50000W/50000W	60000W/60000W
Battery Type			Li-ion/Lead-acid	Li-ion/Lead-acid	Li-ion/Lead-acid	Li-ion/Lead-acid
AC Output Data (Grid-connected)
Rated Output Power	30000W	30000W	40000W	40000W	50000W	60000W
Maximum Apparent Power	30000VA	30000VA	40000VA	40000VA	50000VA	60000VA
Rated Output Voltage	380V/400V, 3L/N/PE	380V/400V, 3L/N/PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE
Rated Output Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Maximum Output Current	45A	45A	60A	60A	75A	90A
Power Factor	~1 (0.8 lead to 0.8 lag can be set)	~1 (0.8 lead to 0.8 lag can be set)	-1 (0.8 lead to 0.8 lag can be set)	-1 (0.8 lead to 0.8 lag can be set)	-1 (0.8 lead to 0.8 lag can be set)	-1 (0.8 lead to 0.8 lag can be set)
Total Harmonic Distortion	<3%	<3%	<3%	<3%	<3%	<3%
AC Output Data (Backup)
Rated Output Power	30000W	30000W	40000W	40000W	50000W	60000W
Maximum Apparent Power	30000VA	30000VA	40000VA	40000VA	50000VA	60000VA
Rated Output Voltage	380V/400V, 3L/N/PE	380V/400V, 3L/N/PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE	380V/400V, 3LN+PE
Rated Output Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Maximum Output Current	45A	45A	60A	60A	75A	90A
Efficiency
Maximum Efficiency	98.40%	98.40%	98.40%	98.40%	98.40%	98.40%
European Efficiency	97.50%	97.50%	97.50%	97.50%	97.50%	97.50%
Protection Functions
AC Overcurrent Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Ground Fault Protection	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Power Network Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Residual Current Monitoring	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Basic Parameters
Operating Temperature Range	-25°C to 60°C (>45°C Derating)	-25°C to 60°C (>45°C Derating)	-25°C to 60°C (>45°C Derating)	-25°C to 60°C (>45°C Derating)	-25°C to 60°C (>45°C Derating)	-25°C to 60°C (>45°C Derating)
Altitude	≤4000m	≤4000m	≤4000m	≤4000m	≤4000m	≤4000m
Noise Emission	<40dB	<40dB	<40dB	<40dB	<40dB	<40dB
Topology	Transformerless Isolation	Transformerless Isolation	Transformerless Isolation	Transformerless Isolation	Transformerless Isolation	Transformerless Isolation
Cooling Method	Intelligent Fan	Intelligent Fan	Intelligent Fan	Intelligent Fan	Intelligent Fan	Intelligent Fan
Protection Level	IP54	IP65	IP54	IP65	IP54	IP54
Relative Humidity	0-90% (No Condensation)	0-90% (No Condensation)	0-90% (No Condensation)	0-90% (No Condensation)	0-90% (No Condensation)	0-90% (No Condensation)
DC Connector Type	MC4/Anderson Powerpole	MC4/Anderson Powerpole	MC4/Anderson Powerpole	MC4/Anderson Powerpole	MC4/Anderson Powerpole	MC4/Anderson Powerpole
AC Connector Type	Plug-in Connector	Plug-in Connector	Plug-in Connector	Plug-in Connector	Plug-in Connector	Plug-in Connector
Display	LCD	LCD	LCD	LCD	LCD	LCD
Cloud Communication	RS485 (WIFI/GPRS optional)	RS485 (WIFI/GPRS optional)	RS485 (WIFI/GPRS optional)	RS485 (WIFI/GPRS optional)	RS485 (WIFI/GPRS optional)	RS485 (WIFI/GPRS optional)
BMS Communication Mode	CAN	CAN	CAN	CAN	CAN	CAN
Communication with Meter	RS485	RS485	RS485	RS485	RS485	RS485
Installation	Wall-mount/Floor-standing	Wall-mount/Floor-standing	Wall-mount/Floor-standing	Wall-mount/Floor-standing	Wall-mount/Floor-standing	Wall-mount/Floor-standing
No-load Power Consumption	<10W	<10W	<10W	<10W	<10W	<10W
Dimensions (W×D×H)	800×350×875mm	800×350×875mm	800×350×875mm	800×350×875mm	800×350×875mm	800×350×875mm
Weight	102kg	102kg	102kg	102kg	102kg	102kg
Certification
Safety Standards	IEC62109-1-2	IEC62109-1-2	IEC62109-1/2	IEC62109-1/2	IEC62109-1/2	IEC62109-1/2
Electromagnetic Compatibility Standards	EN 61000-6-1, -2, -3, -4	EN 61000-6-1, -2, -3, -4	EN 61000-6-1, -2, -3, -4	EN 61000-6-1, -2, -3, -4	EN 61000-6-1, -2, -3, -4	EN 61000-6-1, -2, -3, -4
Grid-connection Standards	AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018	AS4777.2:2000, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018	AS4777.2:2010, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018	AS4777.2:2010, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018	AS4777.2:2010, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018	AS4777.2:2010, NRS097-2-1:2017, EN50649-1:2019, VDE-AR-N 4105:2018
