Supports up to 2x rated PVinput, maximizing solar energy utilization
Supports a maximum stringinput current of21A, ensuring compatibility with high-power PV modules
Compatible with 100-314Ah battery modules, reducing overall system costs
Supports fast battery charging with a maximum charging current of 200A
Two independent battery ports for flexible configurations and easy capacity expansion
Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads
Offers flexible control for weak grid and genset-hybrid scenarios, reducinginvestment costs
Al integration and VPP readiness enable dynamic tariff optimization,minimizing electricity expenses and unlocking additional revenue
Integrates PV and storage for demand management and anti-reverse flow functions
Provides dynamic reactive power compensation to improve grid power factor and reduce reactive power charges
Utility bypass function allows direct grid supply to backup loads
Patented coolingtechnology ensures reliable operation even under high-temperature conditions
Product Parameters

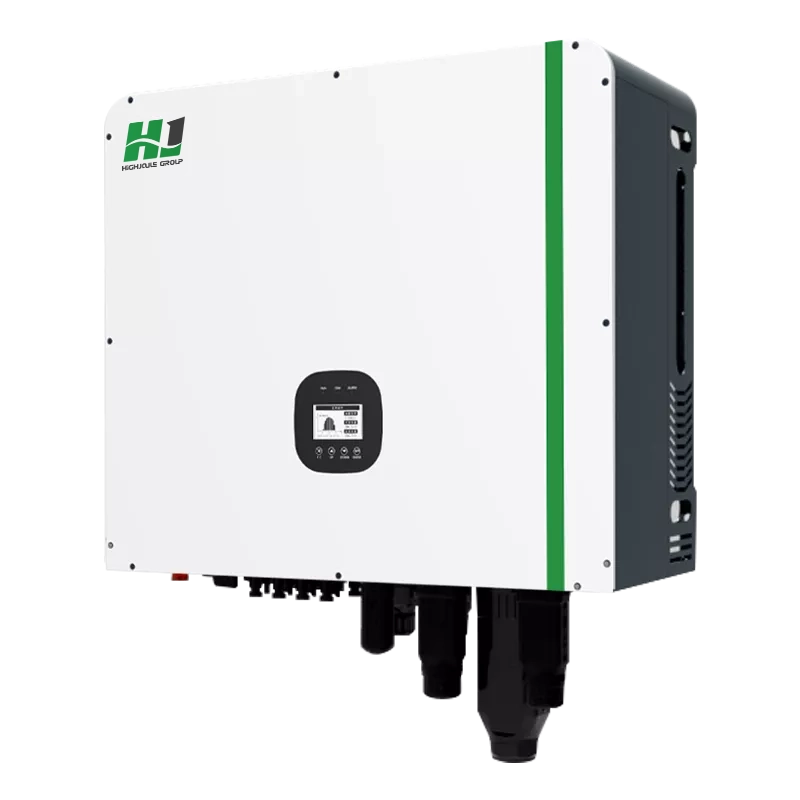

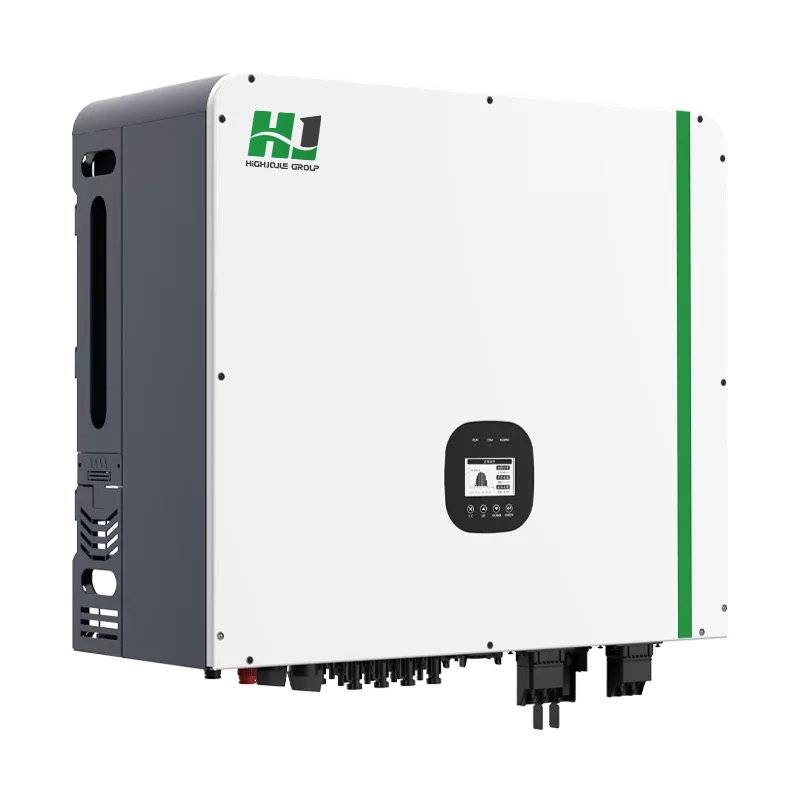

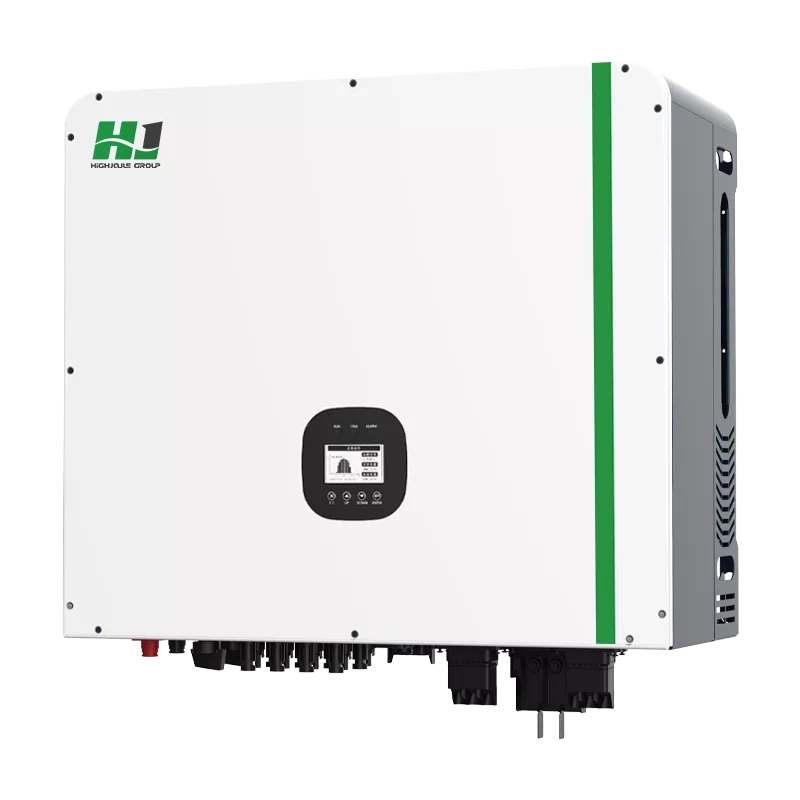

| Production Model | HJ-IH48603T(E-14) |
| PV Input Date | |
| Max, Input Power | 102KW |
| MPPT Operating Voltage Range | 180-900V |
| Max.Short Circuit Current | 36/36/36/36 |
| Number of MPPT Trackers | 4 |
| Battery Input Data | |
| Battery Voltage Range | 200-850V |
| Max.Charge/Discharge Current | 140/140A |
| Battery Type | Li-ion/Lead-acid |
| AC Data | |
| Nominal Power | 60KW |
| Nominal Voltage | 380/400V,3L/N/PE50/60 |
| Nominal Frequency | 50/60Hz |
| Max.Current | 95A |
| Power Factor | ~1(0.8 lead to 0.8 lag can be set) |
| Protection | |
| Protection | DC Reverse Polarity Protection Over Current Protection Anti islanding protection AC short circuit protection Leakage current protection Insulation resistance testing Surge protection |
| General Data | |
| Operating Temperature Range | -25~60(>45 derating ) |
| Cooling | Forced air cooling |
| Relative Humidity | 0~95， No condensation |
| Display | LCD |
| Communication | Rs485 |
| Installation | Wall-mounted/bracket |
| Dimension (W*D*H) | 800*875*350 |
| Weight | 100kg(Excluding back hanging board) |
| Certification | |
| Production Certification | IEC/EN 62109-1/-2 IEC/EN 61000-6-1/-2/-3/-4 |
